MERCURY 880190T03 Plate, Electrical

Write a Review
$98.58
SKU:
880190T03
Schematic Object Key:
1

MERCURY 880190T03 Plate, Electrical

$98.58

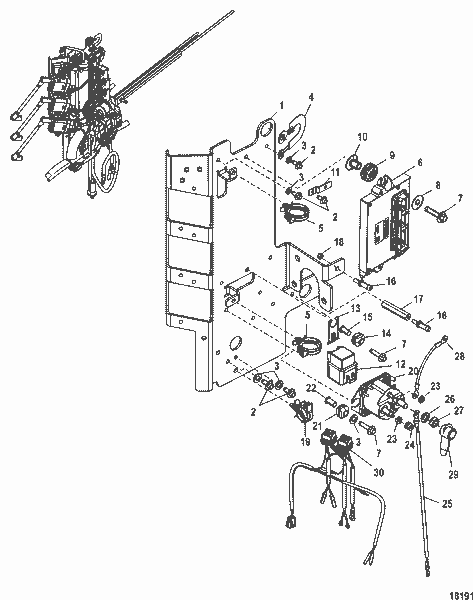

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 880190T03 Plate, Electrical

Schematic Object Key : 1

Product Description : MERCURY 880190T03 Plate, Electrical

Product Category : 75 DFI (3 CYL.)(1.5L)/ 1B227000 THRU 1B417701/ Electrical Components, Pcm Mounting

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- NOT SOLD SEPARATE, Electrical Plate Assembly-Complete NSS
1 PLATE, Electrical 880190T03
2 SCREW, (M6 x 14) 821291 14
3 WASHER, (.281 x .500 x .060) Stainless Steel 29245
4 CABLE ASSEMBLY, Braided 858414A 1
5 CLIP, (1.00) 858755
6 PCM, Propulsion Control Module 89790640T
6 PCM, Propulsion Control Module 89790641T
6 PCM, Propulsion Control Module 89790642T
7 SCREW, (M6 x 25) 821291 25
8 WASHER, (.265 x .750 x .048) Stainless Steel 65567
9 GROMMET 834985
10 BUSHING 856954
11 BRACKET 858953
12 RELAY ASSEMBLY 882751A 1
13 BRACKET 828102
14 GROMMET 818967
15 BUSHING 818968
16 PIN, Special 821583 2
17 SPACER 889600
18 NUT, (M6) 40137 6
19 CLIP, (.625) 858954
20 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) 817109A 2
21 GROMMET 822179
22 BUSHING 818968
23 NUT, (#10-32) Brass 45076
24 CAP NUT, (#10-32) 813938
25 CABLE ASSEMBLY, Yellow/Red 883726A 1
26 LOCKWASHER, (.312) 53166
27 NUT, (.312-18) 68292
28 CABLE ASSEMBLY, (4.00 Inches) Black 88807A16
29 BOOT, Insulator - Yellow 850067 3
30 HARNESS ASSEMBLY, Trim 819514T18
- NOT SOLD SEPARATE, Electrical Plate Assembly-Complete NSS
1 PLATE, Electrical 880190T03
2 SCREW, (M6 x 14) 821291 14
3 WASHER, (.281 x .500 x .060) Stainless Steel 29245
4 CABLE ASSEMBLY, Braided 858414A 1
5 CLIP, (1.00) 858755
6 PCM, Propulsion Control Module 89790640T
6 PCM, Propulsion Control Module 89790641T
6 PCM, Propulsion Control Module 89790642T
7 SCREW, (M6 x 25) 821291 25
8 WASHER, (.265 x .750 x .048) Stainless Steel 65567
9 GROMMET 834985
10 BUSHING 856954
11 BRACKET 858953
12 RELAY ASSEMBLY 882751A 1
13 BRACKET 828102
14 GROMMET 818967
15 BUSHING 818968
16 PIN, Special 821583 2
17 SPACER 889600
18 NUT, (M6) 40137 6
19 CLIP, (.625) 858954
20 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) 817109A 2
21 GROMMET 822179
22 BUSHING 818968
23 NUT, (#10-32) Brass 45076
24 CAP NUT, (#10-32) 813938
25 CABLE ASSEMBLY, Yellow/Red 883726A 1
26 LOCKWASHER, (.312) 53166
27 NUT, (.312-18) 68292
28 CABLE ASSEMBLY, (4.00 Inches) Black 88807A16
29 BOOT, Insulator - Yellow 850067 3
30 HARNESS ASSEMBLY, Trim 819514T18



Quick Overview

PLATE-ELECTRICAL

SKU : 880190T03

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061582187
