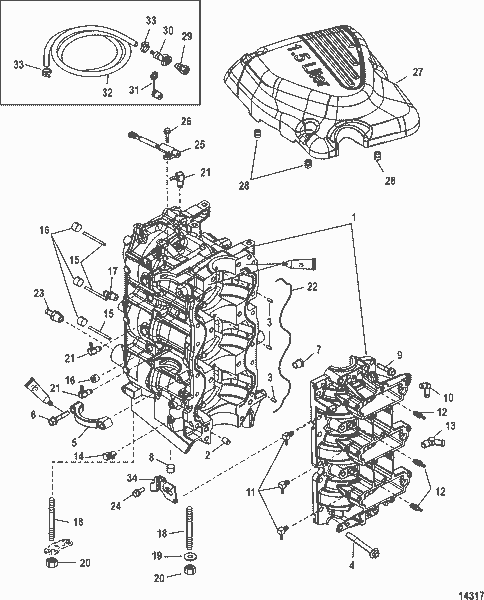

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 34
Product Description : MERCURY 880731002 Bracket, Oil Reservoir
Product Category : 75 DFI (3 CYL.)(1.5L)/ 1B227000 THRU 1B417701/ Cylinder Block And Crankcase
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
0 | GASKET SET, Powerhead | 879855A04 |
0 | POWERHEAD ASSEMBLY | 895233A07 |
0 | POWERHEAD ASSEMBLY | 891767A07 |
0 | POWERHEAD ASSEMBLY | 891767A07 |
1 | CYLINDER BLOCK | 878581A20 |
1 | CYLINDER BLOCK | 878581A09 |
1 | CYLINDER BLOCK | 878581A09 |
2 | PIN, Dowel - Without Hole (.375 x .625) | 43044 |
3 | PIN, Center Main | 8M0036405 |
4 | SCREW, (M10 x 80) | 40096 80 |
5 | BRACKET | 8M0041759 |
6 | SCREW, (M8 x 40) | 817427 40 |
7 | FITTING, (.250-18 x .62) Brass | 36382 |
8 | PLUG, Pipe (.375-18) | 18598 1 |
9 | SCREW, (M8 x 35) | 821273 35 |
10 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon | 99664 2 |
11 | CHECK VALVE | 883139001 |
12 | CHECK VALVE | 889830 |
13 | FITTING, Elbow 45 Degree (1.25) | 78279 2 |
14 | CHECK VALVE | 828218 2 |
15 | DEFLECTOR, Water | 824857 6 |
16 | PLUG, Pipe (.375-18) | 18598 1 |
17 | FITTING | 881866 |
18 | STUD, (M10 x 136) | 892561001 |
19 | WASHER, (.406 x .750 x .105) Stainless Steel | 856774 |
20 | NUT, (M10) | 40140 |
21 | CHECK VALVE, 90 Degree (.0625-27) | 859235 2 |
22 | SEAL | 891956 |
23 | FITTING | 835454001 |
24 | SCREW, (M8 x 20) | 817427 20 |
25 | SENSOR, Crank Position | 8M0082988 |
26 | SCREW, (M5 x 16) Stainless Steel | 40011107 |
27 | COVER, Flywheel | 880198T |
28 | GROMMET | 8M0153609 |
29 | COUPLING INSERT | 857175 |
30 | COUPLING BODY | 857176 |
31 | CAP | 858240 |
32 | TUBING, (.312) (70.00 Inches Bulk) (Cut to 43 Inches) | 8M0108349 |
33 | TIE STRAP, (8.00 Inches) | 816311T |
34 | BRACKET, Oil Reservoir | 880731002 |
0 | GASKET SET, Powerhead | 879855A04 |
0 | POWERHEAD ASSEMBLY | 895233A07 |
0 | POWERHEAD ASSEMBLY | 891767A07 |
0 | POWERHEAD ASSEMBLY | 891767A07 |
1 | CYLINDER BLOCK | 878581A20 |
1 | CYLINDER BLOCK | 878581A09 |
1 | CYLINDER BLOCK | 878581A09 |
2 | PIN, Dowel - Without Hole (.375 x .625) | 43044 |
3 | PIN, Center Main | 8M0036405 |
4 | SCREW, (M10 x 80) | 40096 80 |
5 | BRACKET | 8M0041759 |
6 | SCREW, (M8 x 40) | 817427 40 |
7 | FITTING, (.250-18 x .62) Brass | 36382 |
8 | PLUG, Pipe (.375-18) | 18598 1 |
9 | SCREW, (M8 x 35) | 821273 35 |
10 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon | 99664 2 |
11 | CHECK VALVE | 883139001 |
12 | CHECK VALVE | 889830 |
13 | FITTING, Elbow 45 Degree (1.25) | 78279 2 |
14 | CHECK VALVE | 828218 2 |
15 | DEFLECTOR, Water | 824857 6 |
16 | PLUG, Pipe (.375-18) | 18598 1 |
17 | FITTING | 881866 |
18 | STUD, (M10 x 136) | 892561001 |
19 | WASHER, (.406 x .750 x .105) Stainless Steel | 856774 |
20 | NUT, (M10) | 40140 |
21 | CHECK VALVE, 90 Degree (.0625-27) | 859235 2 |
22 | SEAL | 891956 |
23 | FITTING | 835454001 |
24 | SCREW, (M8 x 20) | 817427 20 |
25 | SENSOR, Crank Position | 8M0082988 |
26 | SCREW, (M5 x 16) Stainless Steel | 40011107 |
27 | COVER, Flywheel | 880198T |
28 | GROMMET | 8M0153609 |
29 | COUPLING INSERT | 857175 |
30 | COUPLING BODY | 857176 |
31 | CAP | 858240 |
32 | TUBING, (.312) (70.00 Inches Bulk) (Cut to 43 Inches) | 8M0108349 |
33 | TIE STRAP, (8.00 Inches) | 816311T |
34 | BRACKET, Oil Reservoir | 880731002 |
Quick Overview
BRACKET
SKU : 880731002
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061582774
