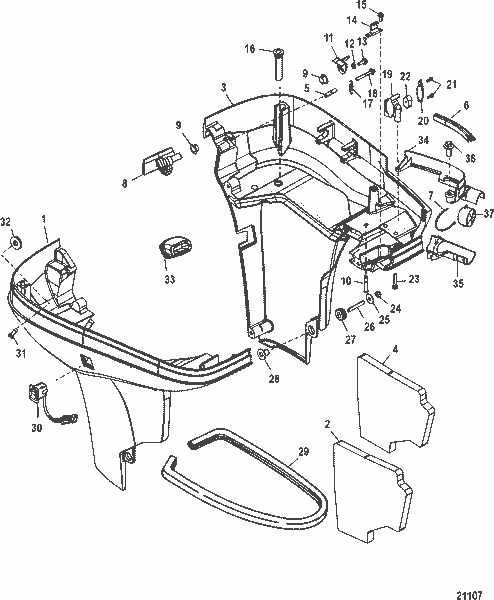

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 8
Product Description : MERCURY 880783T Lever, Cowl Latch
Product Category : 75 DFI (3 CYL.)(1.5L)/ 1B736885 & Up/ Bottom Cowl
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | BOTTOM COWL, Starboard | 880775A03 |
2 | NOT SOLD SEPARATE, Sound Blanket - Part of 889720A00 | NSS |
3 | BOTTOM COWL, Port | 880774A03 |
4 | SOUND BLANKET KIT | 889720A00 |
5 | PIN | 885116 |
6 | SEAL, Cowl (41.00 Inches) | 8M0111278 |
7 | TIE STRAP, (11.750 Inches) | 850181 |
8 | LEVER, Cowl Latch | 880783T |
9 | BUSHING | 33589 1 |
10 | FITTING, Vent | 889684002 |
11 | CAM, Latch | 884468 |
12 | WASHER, (.265 x .750 x .048) Stainless Steel | 65567 |
13 | SCREW, (M6 x 16) | 19937 16 |
14 | RETAINER | 822363T 1 |
15 | SCREW, (M6 x 16) | 821300 16 |
16 | CHECK VALVE ASSEMBLY, Drain | 817519A 2 |
17 | SPRING | 892166001 |
18 | SCREW, (M6 x 40) | 821300 40 |
19 | BRACKET ASSEMBLY | 19812T03 |
20 | LATCH | 98889 |
21 | DRIVE SCREW | 42975 |
22 | CUP | 39519 |
23 | SCREW, (M8 x 50) Stainless Steel | 40011154 |
24 | NUT, (M8) Stainless Steel | 40138 8 |
25 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 817274 |
26 | STUD, (M8 X 1.25 X 48) | 8M0034456 |
27 | GROMMET | 855362001 |
28 | BUSHING | 855364 |
29 | SEAL, Lower Cowl (44.75 Inches) | 8M0043167 |
30 | SWITCH, Trim | 8M0042300 |
31 | FITTING | 94848 |
32 | SPACER | 892427 |
33 | BOOT, Idle Relief | 884464 |
34 | CLAMP, Upper | 8M0000504 |
35 | CLAMP, Lower | 8M0000484 |
36 | SCREW, (M6 x 16) | 821300 16 |
37 | GROMMET | 8M0006618 |
- | DECAL, Strip | 854700T05 |
- | DECAL, Strip | 8M0072982 |
1 | BOTTOM COWL, Starboard | 880775A03 |
2 | NOT SOLD SEPARATE, Sound Blanket - Part of 889720A00 | NSS |
3 | BOTTOM COWL, Port | 880774A03 |
4 | SOUND BLANKET KIT | 889720A00 |
5 | PIN | 885116 |
6 | SEAL, Cowl (41.00 Inches) | 8M0111278 |
7 | TIE STRAP, (11.750 Inches) | 850181 |
8 | LEVER, Cowl Latch | 880783T |
9 | BUSHING | 33589 1 |
10 | FITTING, Vent | 889684002 |
11 | CAM, Latch | 884468 |
12 | WASHER, (.265 x .750 x .048) Stainless Steel | 65567 |
13 | SCREW, (M6 x 16) | 19937 16 |
14 | RETAINER | 822363T 1 |
15 | SCREW, (M6 x 16) | 821300 16 |
16 | CHECK VALVE ASSEMBLY, Drain | 817519A 2 |
17 | SPRING | 892166001 |
18 | SCREW, (M6 x 40) | 821300 40 |
19 | BRACKET ASSEMBLY | 19812T03 |
20 | LATCH | 98889 |
21 | DRIVE SCREW | 42975 |
22 | CUP | 39519 |
23 | SCREW, (M8 x 50) Stainless Steel | 40011154 |
24 | NUT, (M8) Stainless Steel | 40138 8 |
25 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 817274 |
26 | STUD, (M8 X 1.25 X 48) | 8M0034456 |
27 | GROMMET | 855362001 |
28 | BUSHING | 855364 |
29 | SEAL, Lower Cowl (44.75 Inches) | 8M0043167 |
30 | SWITCH, Trim | 8M0042300 |
31 | FITTING | 94848 |
32 | SPACER | 892427 |
33 | BOOT, Idle Relief | 884464 |
34 | CLAMP, Upper | 8M0000504 |
35 | CLAMP, Lower | 8M0000484 |
36 | SCREW, (M6 x 16) | 821300 16 |
37 | GROMMET | 8M0006618 |
- | DECAL, Strip | 854700T05 |
- | DECAL, Strip | 8M0072982 |
Quick Overview
LEVER
SKU : 880783T
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061583313
