MERCURY 881421T04 Powerhead Assembly

Write a Review
$8,435.71
SKU:
881421T04

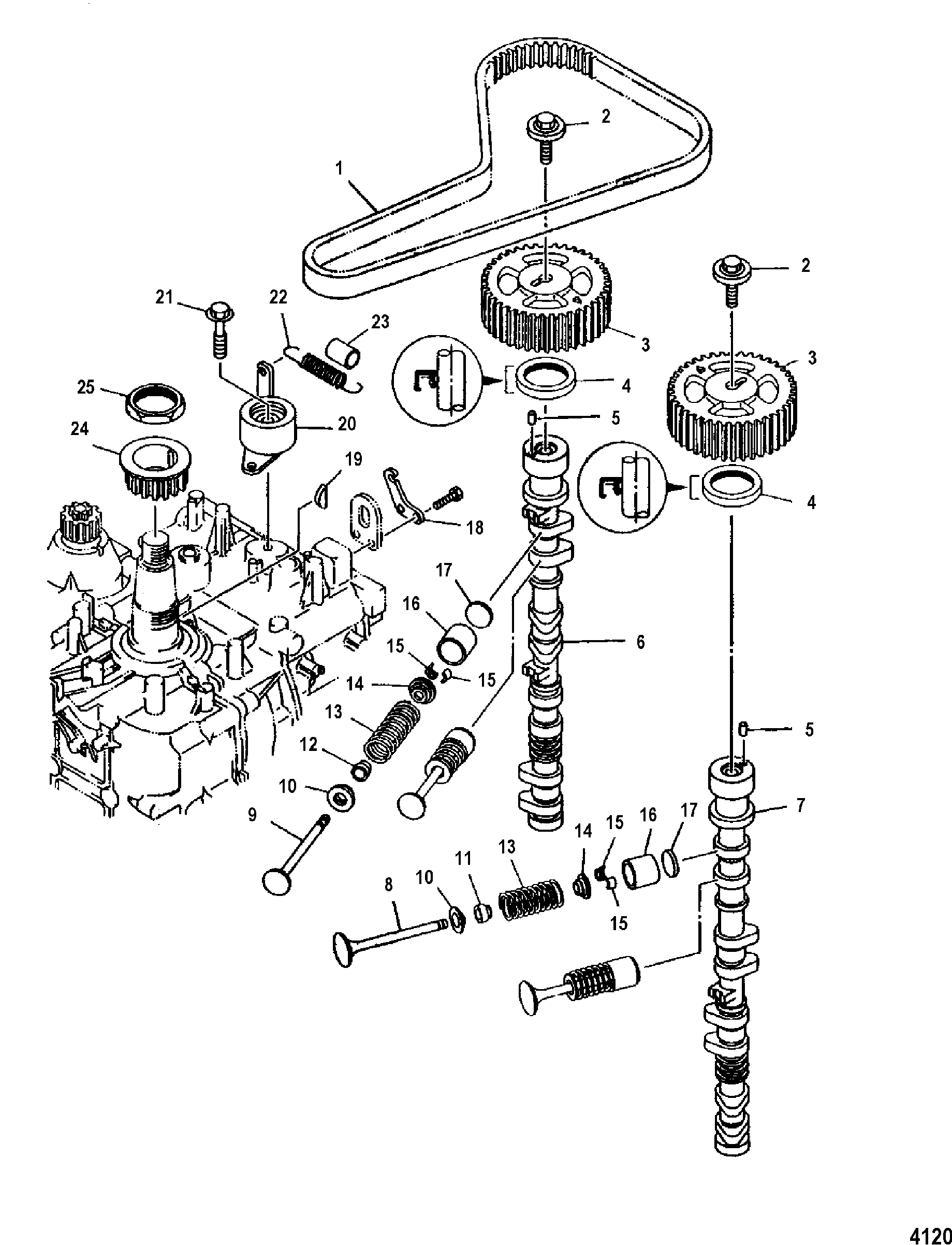

Schematic Object Key:
-

MERCURY 881421T04 Powerhead Assembly

$8,435.71

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 881421T04 Powerhead Assembly

Schematic Object Key : -

Product Description : MERCURY 881421T04 Powerhead Assembly

Product Category : 115 EFI (4-STROKE)/ 1B227000 THRU 1B366822/ Intake And Exhaust Valves

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 V BELT 804145
2 BOLT, (M10 x 35) 804143001
3 GEAR, Driven 804142T
4 SEAL, Oil 804144001
5 PIN, Dowel 804141
6 CAMSHAFT 8M0057172
7 CAMSHAFT 804139T
8 VALVE, Intake 804128T
9 VALVE, Exhaust 804129T
10 SEAT 804130
11 SEAL 804136
12 SEAL 804137
13 SPRING, Valve 804131
14 RETAINER 804132
15 COTTER VALVE 804135
16 LIFTER, Valve 804138T
17 SHIM 804607 1
17 SHIM 804607 2
17 SHIM 804607 3
17 SHIM 804607 4
17 SHIM 804607 5
17 SHIM 804607 6
17 SHIM 804607 7
17 SHIM 804607 8
17 SHIM 804607 9
17 SHIM 804607 10
17 SHIM 804607 11
17 SHIM 804607 12
17 SHIM 804607 13
17 SHIM 804607 14
17 SHIM 804607 15
17 SHIM 804607 16
17 SHIM 804607 17
17 SHIM 804608
17 SHIM 804608 10
17 SHIM 804608 20
17 SHIM 804608 30
17 PAD, Adjusting 804608 40
17 SHIM 804608 50
17 SHIM 804608 60
17 SHIM 804608 70
17 SHIM 804608 80
18 PLATE, Valve 804149
19 KEY 804153
20 TENSIONER 804146
21 BOLT, (M10 x 45) 804150
22 SPRING 804147
23 HOSE 804148
24 GEAR, Drive 804151T01
25 NUT, (M40) 881314003
- GASKET SET 858732A06
- CYLINDER HEAD ASSEMBLY, Complete 881310T09
- POWERHEAD ASSEMBLY 881421T04
1 V BELT 804145
2 BOLT, (M10 x 35) 804143001
3 GEAR, Driven 804142T
4 SEAL, Oil 804144001
5 PIN, Dowel 804141
6 CAMSHAFT 8M0057172
7 CAMSHAFT 804139T
8 VALVE, Intake 804128T
9 VALVE, Exhaust 804129T
10 SEAT 804130
11 SEAL 804136
12 SEAL 804137
13 SPRING, Valve 804131
14 RETAINER 804132
15 COTTER VALVE 804135
16 LIFTER, Valve 804138T
17 SHIM 804607 1
17 SHIM 804607 2
17 SHIM 804607 3
17 SHIM 804607 4
17 SHIM 804607 5
17 SHIM 804607 6
17 SHIM 804607 7
17 SHIM 804607 8
17 SHIM 804607 9
17 SHIM 804607 10
17 SHIM 804607 11
17 SHIM 804607 12
17 SHIM 804607 13
17 SHIM 804607 14
17 SHIM 804607 15
17 SHIM 804607 16
17 SHIM 804607 17
17 SHIM 804608
17 SHIM 804608 10
17 SHIM 804608 20
17 SHIM 804608 30
17 PAD, Adjusting 804608 40
17 SHIM 804608 50
17 SHIM 804608 60
17 SHIM 804608 70
17 SHIM 804608 80
18 PLATE, Valve 804149
19 KEY 804153
20 TENSIONER 804146
21 BOLT, (M10 x 45) 804150
22 SPRING 804147
23 HOSE 804148
24 GEAR, Drive 804151T01
25 NUT, (M40) 881314003
- GASKET SET 858732A06
- CYLINDER HEAD ASSEMBLY, Complete 881310T09
- POWERHEAD ASSEMBLY 881421T04
