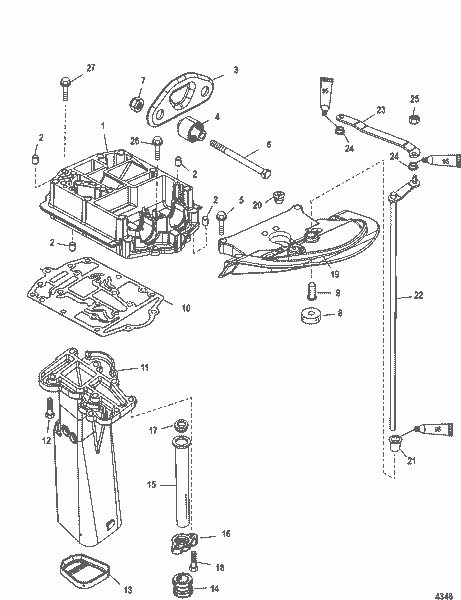

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 3
Product Description : MERCURY 881973 Retainer
Product Category : 75 (3 CYL.)/ 0T980000 THRU 0T999999/ Exhaust Plate
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | PLATE, Exhaust | 881912T01 |
2 | PIN, Dowel | 23784 |
3 | RETAINER | 881973 |
4 | MOUNT | 881915002 |
5 | SCREW, (M8 x 35 MM) | 881975 |
6 | BOLT, (M12 x 175) | 898487 |
7 | NUT, (M12) | 896963 |
8 | SPACER (Long) | 813745 |
8 | SPACER (X-Long) | 11289 |
9 | COUPLING | 43585 |
10 | GASKET | 43008 6 |
11 | TUBE, Exhaust | 42966T07 |
12 | SCREW, (M8 x 35) Stainless Steel | 40011151 |
13 | SEAL | 8M0039075 |
14 | GROMMET | 89417004 |
15 | TUBE, Water - Long (13.21 Inches) | 8M0042791 |
15 | TUBE, Water (15.71 Inches) X Long (75/90) | 8M0042793 |
15 | TUBE, Water - X Long (18.21 Inches) | 8M0042792 |
16 | CLAMP | 824661 |
17 | SEAL, Upper | 814080001 |
18 | SCREW, (M8 x 45) | 889833045 |
19 | CLAMP, Bracket, Upper Mount | 881918T03 |
20 | GROMMET | 19565002 |
20 | GROMMET (Manual Models) | 19564001 |
21 | BUSHING | 48237 |
22 | SHIFT SHAFT ASSEMBLY | 79932A20 |
22 | SHIFT SHAFT ASSEMBLY (Manual Models) | 79932A23 |
23 | SHIFT LINK | 42912A 3 |
24 | BUSHING | 48475 |
25 | NUT, (M6) Stainless Steel | 40138 6 |
26 | SCREW, (M8 x 35) Stainless Steel | 40011151 |
27 | SCREW, (M8 x 70) Stainless Steel | 40011158 |
1 | PLATE, Exhaust | 881912T01 |
2 | PIN, Dowel | 23784 |
3 | RETAINER | 881973 |
4 | MOUNT | 881915002 |
5 | SCREW, (M8 x 35 MM) | 881975 |
6 | BOLT, (M12 x 175) | 898487 |
7 | NUT, (M12) | 896963 |
8 | SPACER (Long) | 813745 |
8 | SPACER (X-Long) | 11289 |
9 | COUPLING | 43585 |
10 | GASKET | 43008 6 |
11 | TUBE, Exhaust | 42966T07 |
12 | SCREW, (M8 x 35) Stainless Steel | 40011151 |
13 | SEAL | 8M0039075 |
14 | GROMMET | 89417004 |
15 | TUBE, Water - Long (13.21 Inches) | 8M0042791 |
15 | TUBE, Water (15.71 Inches) X Long (75/90) | 8M0042793 |
15 | TUBE, Water - X Long (18.21 Inches) | 8M0042792 |
16 | CLAMP | 824661 |
17 | SEAL, Upper | 814080001 |
18 | SCREW, (M8 x 45) | 889833045 |
19 | CLAMP, Bracket, Upper Mount | 881918T03 |
20 | GROMMET | 19565002 |
20 | GROMMET (Manual Models) | 19564001 |
21 | BUSHING | 48237 |
22 | SHIFT SHAFT ASSEMBLY | 79932A20 |
22 | SHIFT SHAFT ASSEMBLY (Manual Models) | 79932A23 |
23 | SHIFT LINK | 42912A 3 |
24 | BUSHING | 48475 |
25 | NUT, (M6) Stainless Steel | 40138 6 |
26 | SCREW, (M8 x 35) Stainless Steel | 40011151 |
27 | SCREW, (M8 x 70) Stainless Steel | 40011158 |
Quick Overview
RETAINER
SKU : 881973
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061583085
