MERCURY 888572 Driveshaft

Write a Review
$461.07
SKU:
888572
Schematic Object Key:
24

MERCURY 888572 Driveshaft

$461.07

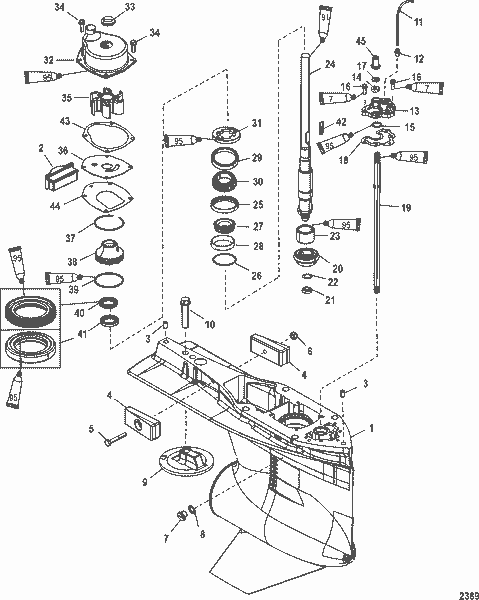

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 888572 Driveshaft

Schematic Object Key : 24

Product Description : MERCURY 888572 Driveshaft

Product Category : 225 VERADO (4-STROKE)(6 CYL.)/ 1B381712 THRU 1B517433/Gear Housing(Driveshaft)(Standard\Counter Rotatio

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
0 GEAR HOUSING ASSEMBLY, Complete 880686T13
0 GEAR HOUSING ASSEMBLY, Complete 880686T14
0 GEAR HOUSING ASSEMBLY, Complete 880686T16
0 GEAR HOUSING ASSEMBLY, Complete 880686T18
0 GEAR HOUSING ASSEMBLY, Complete 880686T15
0 GEAR HOUSING ASSEMBLY, Complete 880686T17
1 GEAR HOUSING ASSEMBLY, Basic 880687T01
2 FILLER BLOCK 821526001
3 PIN, Dowel - Without Hole (.375 x .625) 43044
4 ANODE 826134Q
5 SCREW, (M6 x 40) 40003 33
6 NUT, (M6) Stainless Steel 40138 6
7 PLUG ASSEMBLY, (.375-16 x .250) 79953A04
8 SEAL 830749
9 ANODE KIT 76214T 5
9 ANODE KIT 76214Q 5
10 SCREW, (.437-14 x 1.750) 806327
11 TUBING, (72.00 Inches Bulk), Cut to 7 Inches (Use where Applicable) 859449 75
11 TUBING, (72.00 Inches Bulk), Cut to 12 Inches (Use where Applicable) 859449 75
11 TUBING, (72.00 Inches Bulk), Cut to 17 Inches (Use where Applicable) 859449 75
12 FITTING 881866
13 COVER ASSEMBLY 8M0047129
14 SEAL, Oil 816464 1
15 O-RING, (799 x .103) 896522
16 SCREW, (M6 x 20) Stainless Steel 8M4503518
17 WASHER 77674
18 GASKET 880729
19 SHIFT SHAFT 824145
20 NOT SOLD SEPARATE, Pinion Gear 13 Teeth NSS
21 NUT, (.625-18) 35921
22 WASHER 92721
23 BEARING ASSEMBLY, Roller 42647A 1
24 DRIVESHAFT 888572
24 DRIVESHAFT 888573
24 DRIVESHAFT 888574
25 SHIM/BEARING ASSEMBLY 884327A02
26 SHIM ASSEMBLY 38657A 1
27 NOT SOLD SEPARATE, Roller Bearing Assembly NSS
28 NOT SOLD SEPARATE, Cup NSS
29 NOT SOLD SEPARATE, Roller Bearing Assembly NSS
30 NOT SOLD SEPARATE, Cup NSS
31 RETAINER 824519 1
32 HOUSING, Water Pump-Complete 817275A09
33 SEAL KIT 861415A 1
34 SCREW, (M6 x 20) Stainless Steel 8M4503518
35 IMPELLER 43026T 2
36 FACEPLATE 817276 1
37 RING, Retaining 880719
38 CARRIER ASSEMBLY, Oil Seal 8M0007131
39 O-RING, (2.175 x .103) 896523
40 NOT SOLD SEPARATE, Oil Seal NSS
41 NOT SOLD SEPARATE, Oil Seal NSS
42 KEY 8M0032833
43 GASKET 817277 1
44 GASKET 43033 1
45 COUPLING 43585
- SEAL KIT, Gear Housing 830749A01
- REPAIR KIT, Water Pump Impeller 8M0100526
- REPAIR KIT, Water Pump-Upper 817275A08
0 GEAR HOUSING ASSEMBLY, Complete 880686T13
0 GEAR HOUSING ASSEMBLY, Complete 880686T14
0 GEAR HOUSING ASSEMBLY, Complete 880686T16
0 GEAR HOUSING ASSEMBLY, Complete 880686T18
0 GEAR HOUSING ASSEMBLY, Complete 880686T15
0 GEAR HOUSING ASSEMBLY, Complete 880686T17
1 GEAR HOUSING ASSEMBLY, Basic 880687T01
2 FILLER BLOCK 821526001
3 PIN, Dowel - Without Hole (.375 x .625) 43044
4 ANODE 826134Q
5 SCREW, (M6 x 40) 40003 33
6 NUT, (M6) Stainless Steel 40138 6
7 PLUG ASSEMBLY, (.375-16 x .250) 79953A04
8 SEAL 830749
9 ANODE KIT 76214T 5
9 ANODE KIT 76214Q 5
10 SCREW, (.437-14 x 1.750) 806327
11 TUBING, (72.00 Inches Bulk), Cut to 7 Inches (Use where Applicable) 859449 75
11 TUBING, (72.00 Inches Bulk), Cut to 12 Inches (Use where Applicable) 859449 75
11 TUBING, (72.00 Inches Bulk), Cut to 17 Inches (Use where Applicable) 859449 75
12 FITTING 881866
13 COVER ASSEMBLY 8M0047129
14 SEAL, Oil 816464 1
15 O-RING, (799 x .103) 896522
16 SCREW, (M6 x 20) Stainless Steel 8M4503518
17 WASHER 77674
18 GASKET 880729
19 SHIFT SHAFT 824145
20 NOT SOLD SEPARATE, Pinion Gear 13 Teeth NSS
21 NUT, (.625-18) 35921
22 WASHER 92721
23 BEARING ASSEMBLY, Roller 42647A 1
24 DRIVESHAFT 888572
24 DRIVESHAFT 888573
24 DRIVESHAFT 888574
25 SHIM/BEARING ASSEMBLY 884327A02
26 SHIM ASSEMBLY 38657A 1
27 NOT SOLD SEPARATE, Roller Bearing Assembly NSS
28 NOT SOLD SEPARATE, Cup NSS
29 NOT SOLD SEPARATE, Roller Bearing Assembly NSS
30 NOT SOLD SEPARATE, Cup NSS
31 RETAINER 824519 1
32 HOUSING, Water Pump-Complete 817275A09
33 SEAL KIT 861415A 1
34 SCREW, (M6 x 20) Stainless Steel 8M4503518
35 IMPELLER 43026T 2
36 FACEPLATE 817276 1
37 RING, Retaining 880719
38 CARRIER ASSEMBLY, Oil Seal 8M0007131
39 O-RING, (2.175 x .103) 896523
40 NOT SOLD SEPARATE, Oil Seal NSS
41 NOT SOLD SEPARATE, Oil Seal NSS
42 KEY 8M0032833
43 GASKET 817277 1
44 GASKET 43033 1
45 COUPLING 43585
- SEAL KIT, Gear Housing 830749A01
- REPAIR KIT, Water Pump Impeller 8M0100526
- REPAIR KIT, Water Pump-Upper 817275A08



Quick Overview

DRIVESHAFT LG 45

SKU : 888572

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061636378
