MERCURY 888845T03 Gear Housing Assembly, Complete (4.25 Inch/107.95 Mm Torpedo Diameter)

Write a Review
$3,028.57
SKU:
888845T03
Schematic Object Key:
0

MERCURY 888845T03 Gear Housing Assembly, Complete (4.25 Inch/107.95 Mm Torpedo Diameter)

$3,028.57

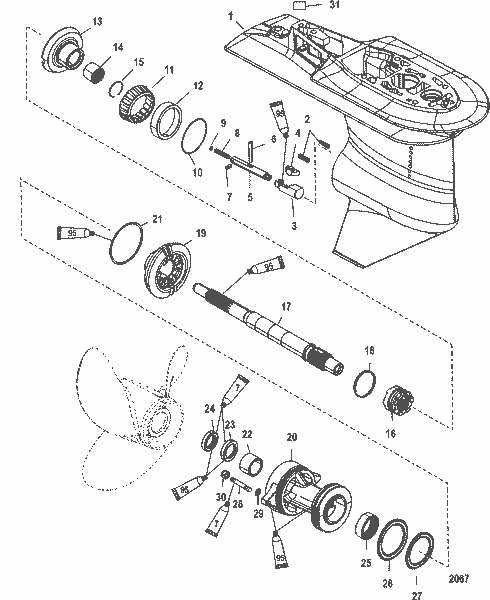

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 888845T03 Gear Housing Assembly, Complete (4.25 Inch/107.95 Mm Torpedo Diameter)

Schematic Object Key : 0

Product Description : MERCURY 888845T03 Gear Housing Assembly, Complete (4.25 Inch/107.95 Mm Torpedo Diameter)

Product Category : 75 EFI (4-STROKE)/ 1B172291 THRU 1B366822/ Gear Housing, Propeller Shaft - 2.33:1 Gear Ratio

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
0 GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) 888845T03
0 GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) 888845T04
1 GEAR HOUSING ASSEMBLY, Basic 888845T
2 INSERT, Threaded 822773 1
3 FOLLOWER ASSEMBLY, Cam 888807
4 CAM, Shift 8M4504018
5 ROD, Clutch Actuator 888806
6 PIN, Cross 8M0084243
7 PIN, Spring Locator 8M0084245
8 SPRING 79910
9 WASHER 78910
10 SHIM SET 44491A 1
11 BEARING SET, Cup And Cone 30894A 1
12 NOT SOLD SEPARATE, Cup NSS
13 GEAR KIT, Forward And Pinion 28 Teeth 882813A 3
14 BEARING, Needle 30895T
15 RING, Retaining 856823
16 CLUTCH 888805T
17 PROPELLER SHAFT 8M0140444
18 SPRING 30893
19 GEAR, Reverse (28 Teeth) 889990T
20 CARRIER ASSEMBLY, Bearing 12596T 2
21 O-RING, (3.609 x .139) 861844
22 BEARING, Needle 30956T
23 SEAL, Oil (INNER) 70080
24 SEAL, Oil (OUTER) 70081
25 BEARING, Roller 12578T
26 THRUST WASHER 12577
27 BEARING, Thrust 12576
28 STUD, (M8 x 48) 8M0034456
29 WASHER, (.323 x .590 x .112) Stainless Steel 855941
30 NUT, (M8) 40137 8
31 NOT SOLD SEPARATE, Decal-Gear Housing Pinion Identification NSS
- NOT SHOWN, See Accessory Guide-Propellers-For Appropriate hardware (Thrust Washers/Nuts) NS
- REPAIR KIT, Clutch And Cam Follower 888805A00
- SEAL KIT, Gear Housing 43035A 4
- BEARING/SEAL KIT 803496T 2
0 GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) 888845T03
0 GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) 888845T04
1 GEAR HOUSING ASSEMBLY, Basic 888845T
2 INSERT, Threaded 822773 1
3 FOLLOWER ASSEMBLY, Cam 888807
4 CAM, Shift 8M4504018
5 ROD, Clutch Actuator 888806
6 PIN, Cross 8M0084243
7 PIN, Spring Locator 8M0084245
8 SPRING 79910
9 WASHER 78910
10 SHIM SET 44491A 1
11 BEARING SET, Cup And Cone 30894A 1
12 NOT SOLD SEPARATE, Cup NSS
13 GEAR KIT, Forward And Pinion 28 Teeth 882813A 3
14 BEARING, Needle 30895T
15 RING, Retaining 856823
16 CLUTCH 888805T
17 PROPELLER SHAFT 8M0140444
18 SPRING 30893
19 GEAR, Reverse (28 Teeth) 889990T
20 CARRIER ASSEMBLY, Bearing 12596T 2
21 O-RING, (3.609 x .139) 861844
22 BEARING, Needle 30956T
23 SEAL, Oil (INNER) 70080
24 SEAL, Oil (OUTER) 70081
25 BEARING, Roller 12578T
26 THRUST WASHER 12577
27 BEARING, Thrust 12576
28 STUD, (M8 x 48) 8M0034456
29 WASHER, (.323 x .590 x .112) Stainless Steel 855941
30 NUT, (M8) 40137 8
31 NOT SOLD SEPARATE, Decal-Gear Housing Pinion Identification NSS
- NOT SHOWN, See Accessory Guide-Propellers-For Appropriate hardware (Thrust Washers/Nuts) NS
- REPAIR KIT, Clutch And Cam Follower 888805A00
- SEAL KIT, Gear Housing 43035A 4
- BEARING/SEAL KIT 803496T 2



Quick Overview

GC 75-90 4S LG 1600

SKU : 888845T03

PRE: MER

BRAND: MERCURY
