MERCURY 889735 Carrier

Write a Review
$5.40
SKU:
889735
Schematic Object Key:
25

MERCURY 889735 Carrier

$5.40

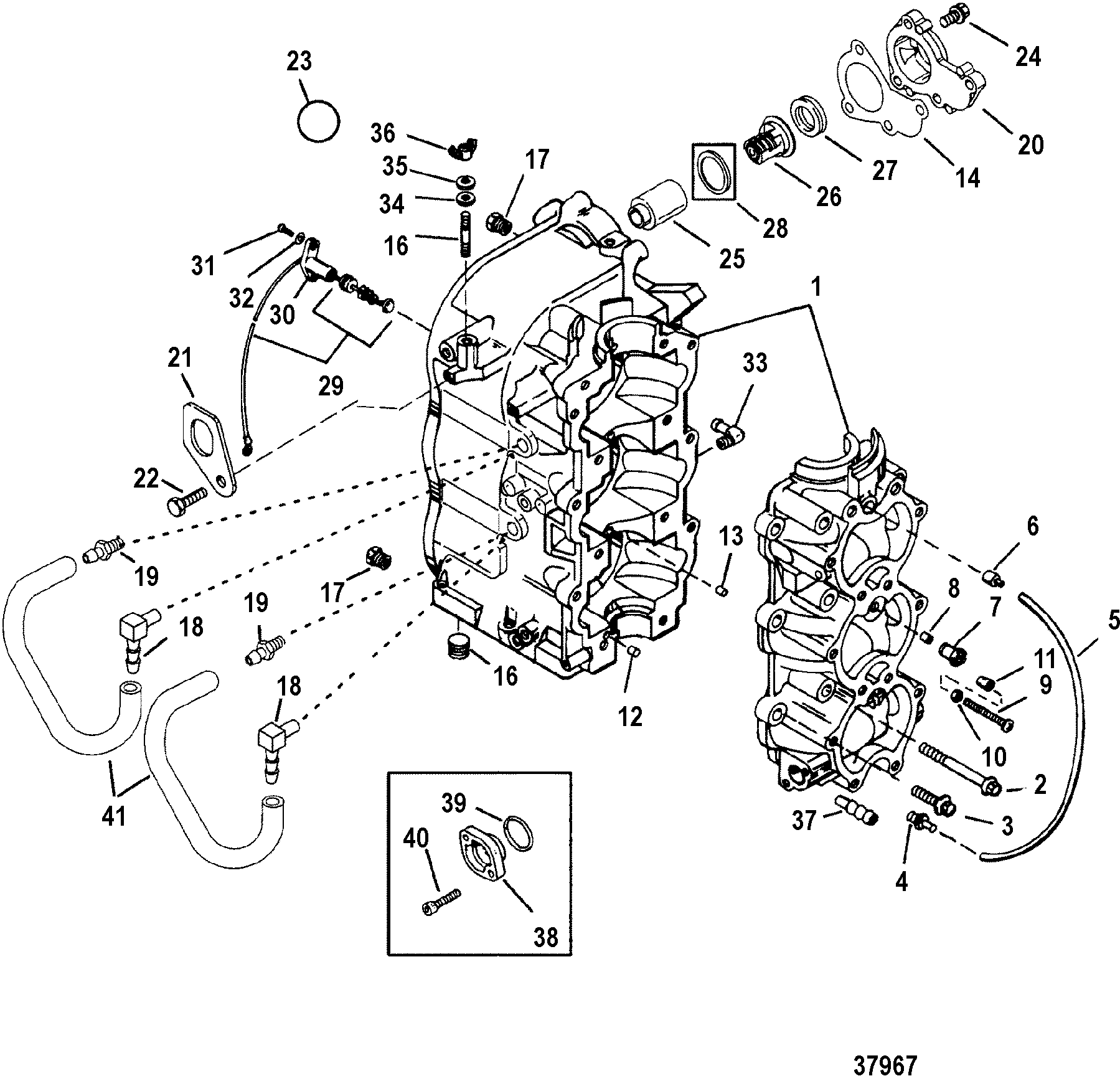

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 889735 Carrier

Schematic Object Key : 25

Product Description : MERCURY 889735 Carrier

Product Category : 40 (3 CYL.)/ 0G590000 THRU 0G760299/ Cylinder Block And Crankcase

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 CYLINDER BLOCK 827953T7
2 SCREW, (M8 x 80) 817427 80
3 SCREW, (M8 x 30) 817427 30
4 CHECK VALVE 42658 5
5 TUBING, (20.00 Feet Bulk) (15 IN.) 892024122
6 CHECK VALVE (PRESS-IN) 42623 2
7 CARRIER ASSEMBLY 812888A 2
8 CHECK VALVE 42657A 4
9 SCREW, Adjusting (M6 x 55) 814776
10 NUT, (M6) Stainless Steel 40021 2
11 CAP 42942
12 PIN, Dowel - Without Hole (.375 x .625) (LOCATING) 43044
13 PIN (BEARING RACE) 8M0084653
14 GASKET 827284
15 STUD 8161949
16 PLUG, Pipe (.375-18) 18598 1
17 PLUG, Pipe (.125-27) Brass 32802 2
18 ELBOW 19725
19 CHECK VALVE 42658 5
20 COVER 827251A 1
20 COVER 827251A1
21 LIFTING EYE 850897
22 SCREW, (M8 x 25) Stainless Steel 40011149
23 NOT SOLD SEPARATE, Plug-Serial Number NSS
24 SCREW, (M8 x 25) Stainless Steel 40011149
25 CARRIER 889735
26 THERMOSTAT, 43°C (110°F) 850055001
27 SEAL 854639001
28 O-RING 62701
29 SENDER, Temperature 78799 2
30 RETAINER 889733
31 SCREW, (#10-16 x .600) 878609
32 WASHER, (.203 x .500 x .032) 56681
33 ELBOW 996642
34 WASHER, (.187 x .500 x .062) Neoprene 49221
35 WASHER, (.255 x .620 x .030) Stainless Steel 69056
36 WING NUT 816872
37 CONNECTOR 56759
38 COVER 812996 2
39 O-RING, (.614 x .070) 48462
40 SCREW, (M5 x 20) Stainless Steel 40011108
41 TUBING, (20.00 Feet Bulk) (5-1/2 IN.) 892024122
- POWERHEAD ASSEMBLY 852067T98
- GASKET SET 828553A97
1 CYLINDER BLOCK 827953T7
2 SCREW, (M8 x 80) 817427 80
3 SCREW, (M8 x 30) 817427 30
4 CHECK VALVE 42658 5
5 TUBING, (20.00 Feet Bulk) (15 IN.) 892024122
6 CHECK VALVE (PRESS-IN) 42623 2
7 CARRIER ASSEMBLY 812888A 2
8 CHECK VALVE 42657A 4
9 SCREW, Adjusting (M6 x 55) 814776
10 NUT, (M6) Stainless Steel 40021 2
11 CAP 42942
12 PIN, Dowel - Without Hole (.375 x .625) (LOCATING) 43044
13 PIN (BEARING RACE) 8M0084653
14 GASKET 827284
15 STUD 8161949
16 PLUG, Pipe (.375-18) 18598 1
17 PLUG, Pipe (.125-27) Brass 32802 2
18 ELBOW 19725
19 CHECK VALVE 42658 5
20 COVER 827251A 1
20 COVER 827251A1
21 LIFTING EYE 850897
22 SCREW, (M8 x 25) Stainless Steel 40011149
23 NOT SOLD SEPARATE, Plug-Serial Number NSS
24 SCREW, (M8 x 25) Stainless Steel 40011149
25 CARRIER 889735
26 THERMOSTAT, 43°C (110°F) 850055001
27 SEAL 854639001
28 O-RING 62701
29 SENDER, Temperature 78799 2
30 RETAINER 889733
31 SCREW, (#10-16 x .600) 878609
32 WASHER, (.203 x .500 x .032) 56681
33 ELBOW 996642
34 WASHER, (.187 x .500 x .062) Neoprene 49221
35 WASHER, (.255 x .620 x .030) Stainless Steel 69056
36 WING NUT 816872
37 CONNECTOR 56759
38 COVER 812996 2
39 O-RING, (.614 x .070) 48462
40 SCREW, (M5 x 20) Stainless Steel 40011108
41 TUBING, (20.00 Feet Bulk) (5-1/2 IN.) 892024122
- POWERHEAD ASSEMBLY 852067T98
- GASKET SET 828553A97



Quick Overview

CARRIER

SKU : 889735

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061357976
