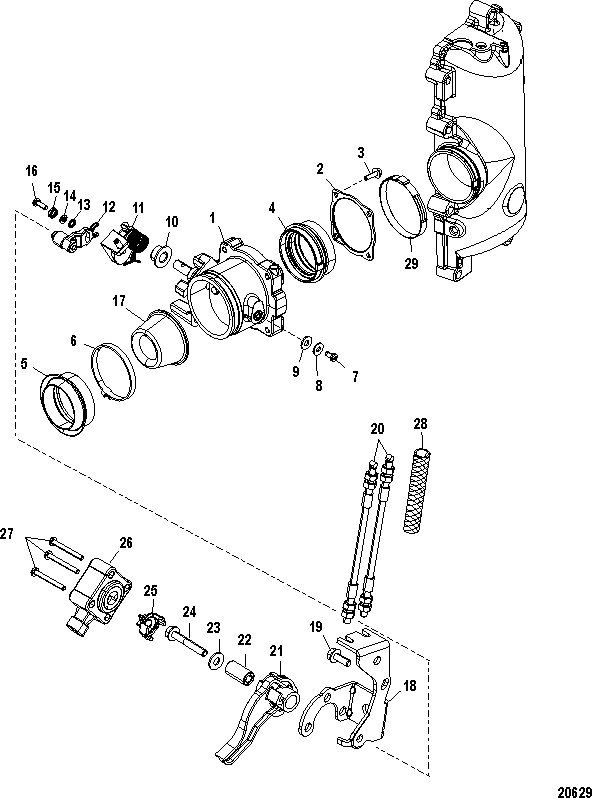

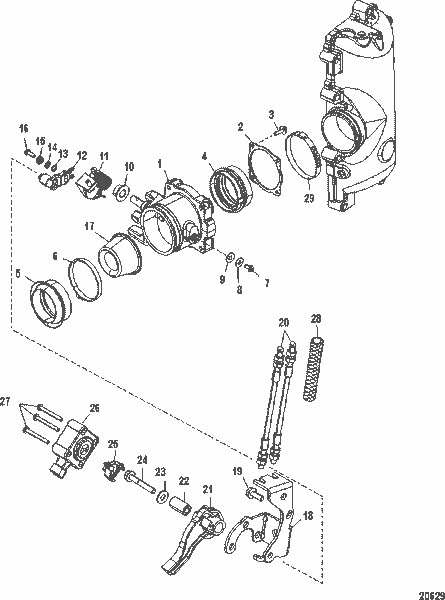

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 8
Product Description : MERCURY 891773 Washer
Product Category : 75 DFI (3 CYL.)(1.5L)/ 1B227000 THRU 1B417701/ Throttle Body
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | THROTTLE BODY ASSEMBLY | 893370T01 |
1 | THROTTLE BODY ASSEMBLY | 893301T01 |
1 | THROTTLE BODY ASSEMBLY | 880129T02 |
2 | RETAINER | 891770 |
3 | SCREW | 891771 |
4 | SEAL | 891772 |
5 | SEAL | 891772002 |
6 | CLAMP, Oetiker | 804842001 |
7 | SCREW | 891771001 |
8 | WASHER | 891773 |
9 | WASHER | 891773001 |
10 | BUSHING | 891774 |
11 | LEVER KIT, Throttle | 853659A01 |
12 | LEVER ASSEMBLY, Throttle | 858851A03 |
13 | LOCKWASHER, External (#10) | 69432 |
14 | WASHER, Spool | 881992 |
15 | WASHER, Cupped | 881991 |
16 | SCREW, Special | 889354 |
17 | INSERT | 892623002 |
17 | INSERT | 892623001 |
18 | BRACKET | 891775 |
19 | SCREW, (M6 x 16) | 19937 16 |
20 | CABLE | 881988 1 |
21 | CAM | 891776 |
22 | BUSHING | 42162 1 |
23 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 35462 |
24 | SCREW, (M6 x 40) | 40003 33 |
25 | COUPLER | 881967 |
26 | INDICATOR, Throttle Position | 8M6005165 |
27 | SCREW | 891771002 |
28 | CONDUIT, (.250 Inside Diameter x 3.00 Feet Bulk) (Cut to 13 Inches) | 828547253 |
29 | CLAMP, Oetiker | 889691 |
1 | THROTTLE BODY ASSEMBLY | 893370T01 |
1 | THROTTLE BODY ASSEMBLY | 893301T01 |
1 | THROTTLE BODY ASSEMBLY | 880129T02 |
2 | RETAINER | 891770 |
3 | SCREW | 891771 |
4 | SEAL | 891772 |
5 | SEAL | 891772002 |
6 | CLAMP, Oetiker | 804842001 |
7 | SCREW | 891771001 |
8 | WASHER | 891773 |
9 | WASHER | 891773001 |
10 | BUSHING | 891774 |
11 | LEVER KIT, Throttle | 853659A01 |
12 | LEVER ASSEMBLY, Throttle | 858851A03 |
13 | LOCKWASHER, External (#10) | 69432 |
14 | WASHER, Spool | 881992 |
15 | WASHER, Cupped | 881991 |
16 | SCREW, Special | 889354 |
17 | INSERT | 892623002 |
17 | INSERT | 892623001 |
18 | BRACKET | 891775 |
19 | SCREW, (M6 x 16) | 19937 16 |
20 | CABLE | 881988 1 |
21 | CAM | 891776 |
22 | BUSHING | 42162 1 |
23 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 35462 |
24 | SCREW, (M6 x 40) | 40003 33 |
25 | COUPLER | 881967 |
26 | INDICATOR, Throttle Position | 8M6005165 |
27 | SCREW | 891771002 |
28 | CONDUIT, (.250 Inside Diameter x 3.00 Feet Bulk) (Cut to 13 Inches) | 828547253 |
29 | CLAMP, Oetiker | 889691 |
Quick Overview
MERCURY_891773
SKU : 891773
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
