MERCURY 892596T04 Cover Assembly, Cam

Write a Review
$359.64
SKU:
892596T04
Schematic Object Key:
21

MERCURY 892596T04 Cover Assembly, Cam

$359.64

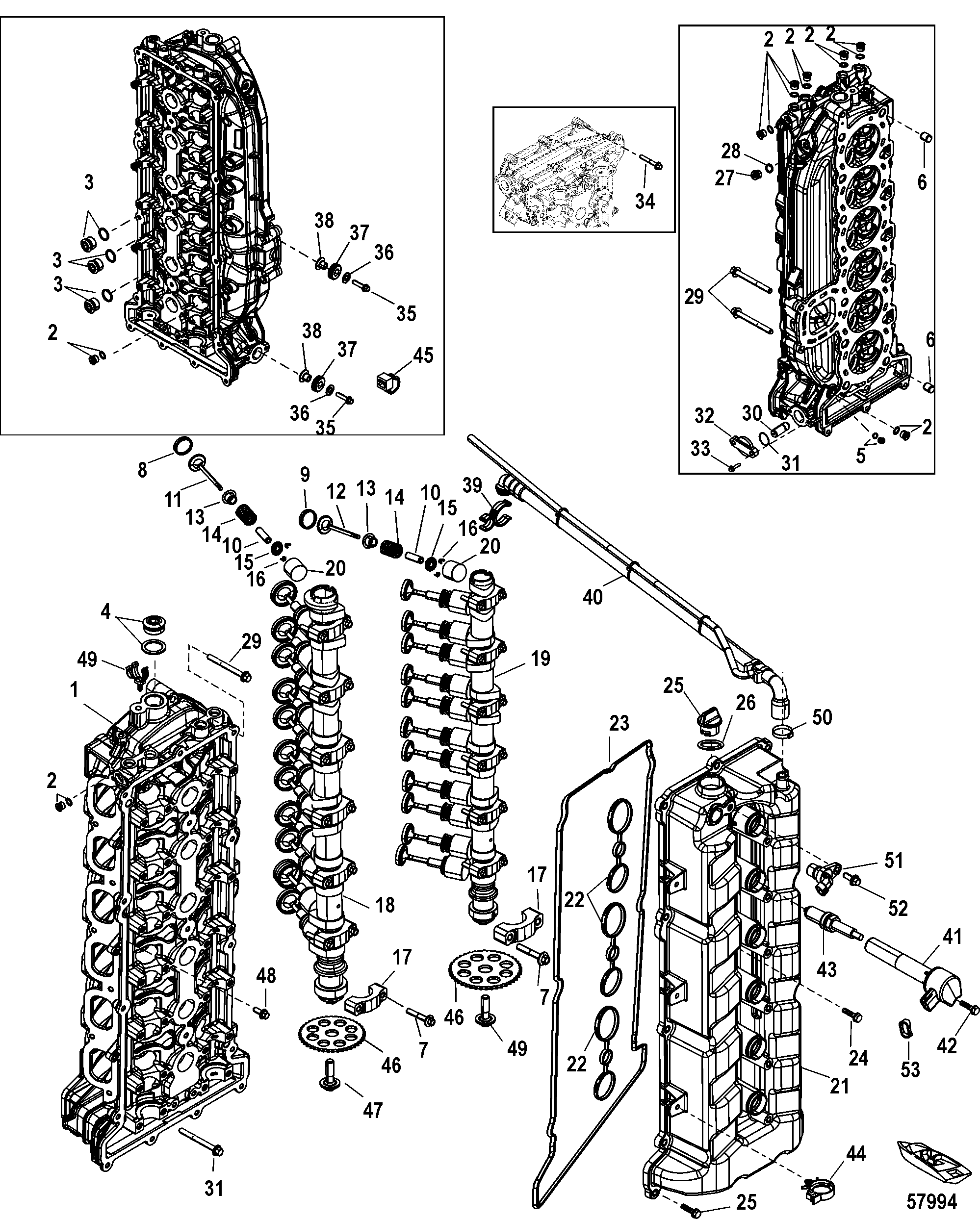

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 892596T04 Cover Assembly, Cam

Schematic Object Key : 21

Product Description : MERCURY 892596T04 Cover Assembly, Cam

Product Category : 400 VERADO (4-Stroke)(6 CYL.)/ 2B141124 & Up/ Cylinder Head And Camshaft

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- CYLINDER HEAD ASSEMBLY 8M0103281
1 CYLINDER HEAD ASSEMBLY, Basic 8M0103282
2 PLUG, (12 MM) 8M0087448
3 PLUG, (18 MM) 8M0087451
4 PLUG, (24 MM) 8M0087453
5 PLUG, (10 MM) 8M0087446
6 PIN, Dowel (14 MM) 880524
7 BOLT, (M6 x 36) 892454035
8 SEAT, Intake Valve 880533
9 SEAT, Exhaust Seat 8M0089477
10 GUIDE, Intake Exhaust Valve 880537
11 VALVE, Intake 898907
12 VALVE, Exhaust 8M0032471
13 SEAL, Valve 896880
14 SPRING VALVE KIT, Intake and Exhaust 8M0103092
15 RETAINER ASSEMBLY, Valves 8M0908500
16 KEY 880543
17 NOT SOLD SEPARATE, CAP NSS
18 CAMSHAFT, Intake 8M0103283
19 CAMSHAFT, Exhaust 8M0103284
20 TAPPET, (2.996) 899912001
20 TAPPET, (3.021) 899912002
20 TAPPET, (3.046) 899912003
20 TAPPET, (3.071) 899912004
20 TAPPET, (3.096) 899912005
20 TAPPET, (3.118) 899912006
20 TAPPET, (3.138) 899912007
20 TAPPET, (3.158) 899912008
20 TAPPET, (3.178) 899912009
20 TAPPET, (3.198) 899912010
20 TAPPET, (3.218) 899912011
20 TAPPET, (3.238) 899912012
20 TAPPET, (3.258) 899912013
20 TAPPET, (3.278) 899912014
20 TAPPET, (3.298) 899912015
20 TAPPET, (3.318) 899912016
20 TAPPET, (3.338) 899912017
20 TAPPET, (3.358) 899912018
20 TAPPET, (3.378) 899912019
20 TAPPET, (3.398) 899912020
20 TAPPET, (3.418) 899912021
20 TAPPET, (3.438) 899912022
20 TAPPET, (3.458) 899912023
20 TAPPET, (3.478) 899912024
20 TAPPET, (3.498) 899912025
20 TAPPET, (3.518) 899912026
20 TAPPET, (3.538) 899912027
20 TAPPET, (3.558) 899912028
20 TAPPET, (3.578) 899912029
20 TAPPET, (3.598) 899912030
20 TAPPET, (3.621) 899912031
20 TAPPET, (3.646) 899912032
20 TAPPET, (3.671) 899912033
20 TAPPET, (3.696) 899912034
20 TAPPET, (3.721) 899912035
21 COVER ASSEMBLY, Cam 892596T04
22 SEAL 892584
23 SEAL 8M6000959
24 SCREW, (M6 x 25 MM) Stainless Steel 8M0103807
25 PLUG ASSEMBLY, Oil 859578A 1
26 O-RING, (.921 x .139) 90196
27 PLUG , (10MM) 8M0087447
28 O-RING, (1.78 mm x .08 mm) 896699
29 SCREW, (M8 x 60) 8M0103817
30 TENSIONER ASSEMBLY 898463A01
31 O-RING, Brown 898836
32 END CAP - CAM TENSIONER , Tensioner 8M0064752
33 SCREW, (M6 x 25 MM) Stainless Steel 8M0103807
34 SCREW, (M6 x 40 MM) Stainless Steel 8M0103809
35 SCREW, (M8 x 35 MM) 8M0103814
36 WASHER, (.344 x 1.00 x .063) Stainless Steel 817274
37 GROMMET 833155
38 BUSHING 850234 1
39 CLIP 892833
40 HOSE ASSEMBLY, Breather 889591A05
41 COIL ASSEMBLY 880615T01
42 SCREW, (M6 x 25 MM) Stainless Steel 8M0103807
43 SPARK PLUG, NGK-ILFR6GE 889246Q39
44 CLIP, (.625) 858954
45 TIE STRAP, (11.750 Inches) 850181
46 SPROCKET, Cam Drive 880550
47 SCREW, (M12 x 40 MM) 8M0021532
48 SCREW, (M6 x 12 MM) Stainless Steel 8M0103804
49 CLIP 889746001
50 CLAMP, (22.6 mm) 888988019
51 SENSOR 8M0011987
52 SCREW, (M6 x 16 MM) Stainless Steel 8M0103805
53 GROMMET, Rubber 8M0119617
- LONG BLOCK ASSEMBLY 896966A06
- CYLINDER HEAD ASSEMBLY 8M0103281
1 CYLINDER HEAD ASSEMBLY, Basic 8M0103282
2 PLUG, (12 MM) 8M0087448
3 PLUG, (18 MM) 8M0087451
4 PLUG, (24 MM) 8M0087453
5 PLUG, (10 MM) 8M0087446
6 PIN, Dowel (14 MM) 880524
7 BOLT, (M6 x 36) 892454035
8 SEAT, Intake Valve 880533
9 SEAT, Exhaust Seat 8M0089477
10 GUIDE, Intake Exhaust Valve 880537
11 VALVE, Intake 898907
12 VALVE, Exhaust 8M0032471
13 SEAL, Valve 896880
14 SPRING VALVE KIT, Intake and Exhaust 8M0103092
15 RETAINER ASSEMBLY, Valves 8M0908500
16 KEY 880543
17 NOT SOLD SEPARATE, CAP NSS
18 CAMSHAFT, Intake 8M0103283
19 CAMSHAFT, Exhaust 8M0103284
20 TAPPET, (2.996) 899912001
20 TAPPET, (3.021) 899912002
20 TAPPET, (3.046) 899912003
20 TAPPET, (3.071) 899912004
20 TAPPET, (3.096) 899912005
20 TAPPET, (3.118) 899912006
20 TAPPET, (3.138) 899912007
20 TAPPET, (3.158) 899912008
20 TAPPET, (3.178) 899912009
20 TAPPET, (3.198) 899912010
20 TAPPET, (3.218) 899912011
20 TAPPET, (3.238) 899912012
20 TAPPET, (3.258) 899912013
20 TAPPET, (3.278) 899912014
20 TAPPET, (3.298) 899912015
20 TAPPET, (3.318) 899912016
20 TAPPET, (3.338) 899912017
20 TAPPET, (3.358) 899912018
20 TAPPET, (3.378) 899912019
20 TAPPET, (3.398) 899912020
20 TAPPET, (3.418) 899912021
20 TAPPET, (3.438) 899912022
20 TAPPET, (3.458) 899912023
20 TAPPET, (3.478) 899912024
20 TAPPET, (3.498) 899912025
20 TAPPET, (3.518) 899912026
20 TAPPET, (3.538) 899912027
20 TAPPET, (3.558) 899912028
20 TAPPET, (3.578) 899912029
20 TAPPET, (3.598) 899912030
20 TAPPET, (3.621) 899912031
20 TAPPET, (3.646) 899912032
20 TAPPET, (3.671) 899912033
20 TAPPET, (3.696) 899912034
20 TAPPET, (3.721) 899912035
21 COVER ASSEMBLY, Cam 892596T04
22 SEAL 892584
23 SEAL 8M6000959
24 SCREW, (M6 x 25 MM) Stainless Steel 8M0103807
25 PLUG ASSEMBLY, Oil 859578A 1
26 O-RING, (.921 x .139) 90196
27 PLUG , (10MM) 8M0087447
28 O-RING, (1.78 mm x .08 mm) 896699
29 SCREW, (M8 x 60) 8M0103817
30 TENSIONER ASSEMBLY 898463A01
31 O-RING, Brown 898836
32 END CAP - CAM TENSIONER , Tensioner 8M0064752
33 SCREW, (M6 x 25 MM) Stainless Steel 8M0103807
34 SCREW, (M6 x 40 MM) Stainless Steel 8M0103809
35 SCREW, (M8 x 35 MM) 8M0103814
36 WASHER, (.344 x 1.00 x .063) Stainless Steel 817274
37 GROMMET 833155
38 BUSHING 850234 1
39 CLIP 892833
40 HOSE ASSEMBLY, Breather 889591A05
41 COIL ASSEMBLY 880615T01
42 SCREW, (M6 x 25 MM) Stainless Steel 8M0103807
43 SPARK PLUG, NGK-ILFR6GE 889246Q39
44 CLIP, (.625) 858954
45 TIE STRAP, (11.750 Inches) 850181
46 SPROCKET, Cam Drive 880550
47 SCREW, (M12 x 40 MM) 8M0021532
48 SCREW, (M6 x 12 MM) Stainless Steel 8M0103804
49 CLIP 889746001
50 CLAMP, (22.6 mm) 888988019
51 SENSOR 8M0011987
52 SCREW, (M6 x 16 MM) Stainless Steel 8M0103805
53 GROMMET, Rubber 8M0119617
- LONG BLOCK ASSEMBLY 896966A06



Quick Overview

COVER ASSY-CAM

SKU : 892596T04

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061636149
