MERCURY 893605T Gear, Reverse

Write a Review
$231.25
SKU:
893605T
Schematic Object Key:
49

MERCURY 893605T Gear, Reverse

$231.25

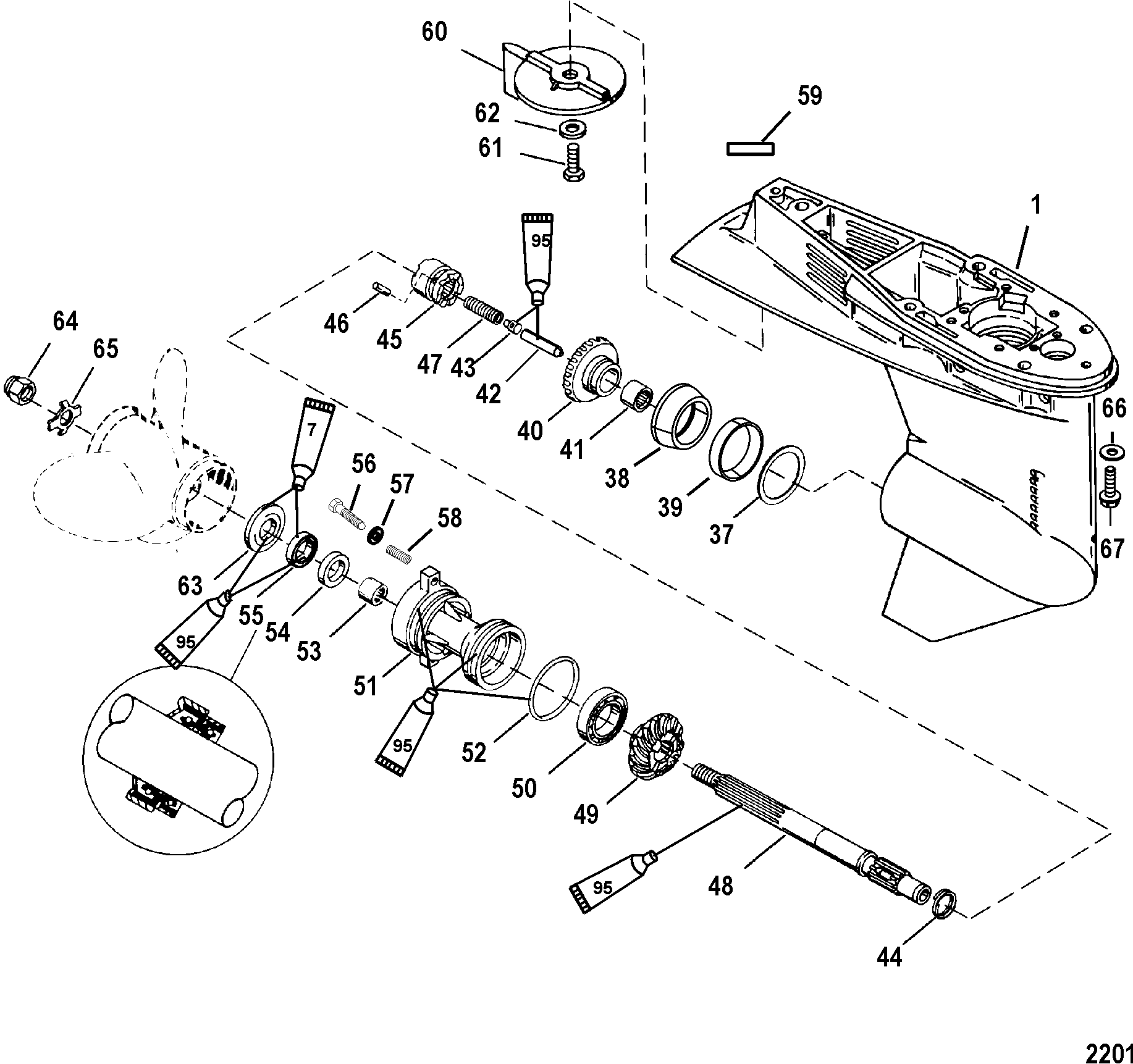

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 893605T Gear, Reverse

Schematic Object Key : 49

Product Description : MERCURY 893605T Gear, Reverse

Product Category : 40 EFI (3 CYL.)(4-STROKE)/ 1B227000 THRU 1B344398/ Gear Housing, Propeller Shaft-Long-2:1 Gear Ratio

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY, Complete (3.44 Inch/87.37 mm Torpedo Diameter) 9760T44
1 GEAR HOUSING ASSEMBLY, Basic 9760T42
37 SHIM SET 812769A 1
38 BEARING ASSEMBLY, Tapered Roller 8M0103476
39 NOT SOLD SEPARATE, Cup NSS
40 GEAR, Forward 893603T01
41 BEARING, Roller 21739
42 FOLLOWER, Cam 812929 1
43 SLIDE 20843
44 SPRING 38114
45 CLUTCH 813697T
46 PIN, Cross 8M0020942
47 SPRING 815418
48 PROPELLER SHAFT 14493
49 GEAR, Reverse 893605T
50 BEARING, Ball 20839T
51 CARRIER ASSEMBLY, Bearing 19291A 3
52 O-RING 815460
53 BEARING, Needle 21700
54 SEAL, Oil 69188
55 SEAL, Oil 69189
56 SCREW, (M8 x 30) 855940 30
57 WASHER, (.323 x .590 x .112) Stainless Steel 855941
58 INSERT, Threaded 822773 1
59 NOT SOLD SEPARATE, Decal-Gear Ratio NSS
60 TRIM TAB, Zinc 17264T 2
61 SCREW, (M10 x 30) 40003 77
62 WASHER, (.406 x .750 x .105) Stainless Steel 856774
63 THRUST HUB 73345A 1
64 PROP NUT KIT 69578Q 1
65 TAB WASHER 76281
66 WASHER, (.406 x .750 x .105) Stainless Steel 856774
67 SCREW, (M10 x 45) 40003 80
- SEAL KIT, Gear Housing 814669A 2
- GEAR HOUSING ASSEMBLY, Complete (3.44 Inch/87.37 mm Torpedo Diameter) 9760T44
1 GEAR HOUSING ASSEMBLY, Basic 9760T42
37 SHIM SET 812769A 1
38 BEARING ASSEMBLY, Tapered Roller 8M0103476
39 NOT SOLD SEPARATE, Cup NSS
40 GEAR, Forward 893603T01
41 BEARING, Roller 21739
42 FOLLOWER, Cam 812929 1
43 SLIDE 20843
44 SPRING 38114
45 CLUTCH 813697T
46 PIN, Cross 8M0020942
47 SPRING 815418
48 PROPELLER SHAFT 14493
49 GEAR, Reverse 893605T
50 BEARING, Ball 20839T
51 CARRIER ASSEMBLY, Bearing 19291A 3
52 O-RING 815460
53 BEARING, Needle 21700
54 SEAL, Oil 69188
55 SEAL, Oil 69189
56 SCREW, (M8 x 30) 855940 30
57 WASHER, (.323 x .590 x .112) Stainless Steel 855941
58 INSERT, Threaded 822773 1
59 NOT SOLD SEPARATE, Decal-Gear Ratio NSS
60 TRIM TAB, Zinc 17264T 2
61 SCREW, (M10 x 30) 40003 77
62 WASHER, (.406 x .750 x .105) Stainless Steel 856774
63 THRUST HUB 73345A 1
64 PROP NUT KIT 69578Q 1
65 TAB WASHER 76281
66 WASHER, (.406 x .750 x .105) Stainless Steel 856774
67 SCREW, (M10 x 45) 40003 80
- SEAL KIT, Gear Housing 814669A 2



Quick Overview

GEAR-REVERSE 43

SKU : 893605T

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061675223
