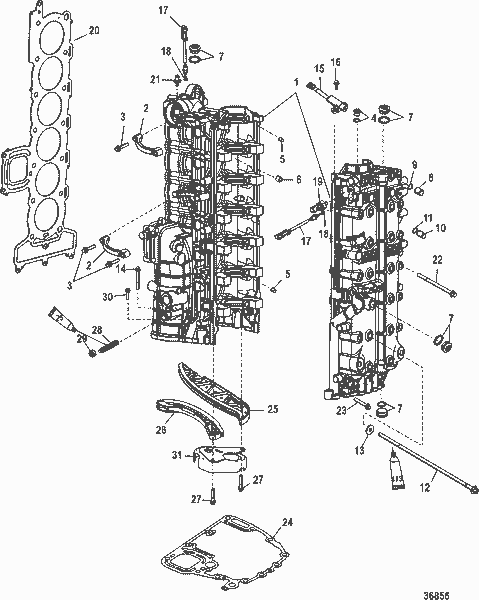

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 20
Product Description : MERCURY 895374T Gasket, Head
Product Category : 350SCi Verado/ 1B716557 & Up/ Cylinder Block
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | CYLINDER BLOCK ASSEMBLY | 880506A13 |
2 | BRACKET, Mounting-Starter Motor | 8M0041759 |
3 | SCREW, (M8 x 40) | 8M0103815 |
4 | PLUG, (12 mm) | 889767 |
5 | PIN, Dowel - Without Hole (.375 x .625) | 43044 |
6 | DAMPER | 893392001 |
7 | PLUG, (24 mm) | 896951 |
8 | PIN, Dowel (14 mm) | 880524 |
9 | O-RING | 884409 |
10 | PIN, Dowel (11 mm) | 884424 |
11 | O-RING | 884423 |
12 | SCREW, (M10 x 342) | 8M4501000 |
13 | WASHER | 892573001 |
14 | SCREW, (M8 x 75) | 8M0103818 |
15 | SENSOR | 8M0082988 |
16 | SCREW, (M5 x 16) Stainless Steel | 40011107 |
17 | SENSOR ASSEMBLY | 8M0142542 |
18 | O-RING, (1.78 mm x .08 mm) | 896699 |
19 | SENSOR, Pressure | 8M6000637 |
20 | GASKET, Head | 895374T |
21 | PIN | 8M0032379 |
22 | SCREW, (M8 x 115) | 895810115 |
23 | SCREW, (M8 x 50) | 895810050 |
24 | GASKET, Block to Adaptor | 880624003 |
25 | GUIDE, Fixed | 880559 |
26 | GUIDE, Moveable | 880557 |
27 | SCREW | 892456045 |
28 | STUD | 8M0022160 |
29 | NUT, (M8) Stainless Steel | 40138 8 |
30 | SCREW, (M8 x 35 MM) | 8M0103814 |
31 | COVER | 8M0005800 |
- | GASKET SET, Powerhead | 880552A08 |
- | LONG BLOCK ASSEMBLY | 895247A08 |
1 | CYLINDER BLOCK ASSEMBLY | 880506A13 |
2 | BRACKET, Mounting-Starter Motor | 8M0041759 |
3 | SCREW, (M8 x 40) | 8M0103815 |
4 | PLUG, (12 mm) | 889767 |
5 | PIN, Dowel - Without Hole (.375 x .625) | 43044 |
6 | DAMPER | 893392001 |
7 | PLUG, (24 mm) | 896951 |
8 | PIN, Dowel (14 mm) | 880524 |
9 | O-RING | 884409 |
10 | PIN, Dowel (11 mm) | 884424 |
11 | O-RING | 884423 |
12 | SCREW, (M10 x 342) | 8M4501000 |
13 | WASHER | 892573001 |
14 | SCREW, (M8 x 75) | 8M0103818 |
15 | SENSOR | 8M0082988 |
16 | SCREW, (M5 x 16) Stainless Steel | 40011107 |
17 | SENSOR ASSEMBLY | 8M0142542 |
18 | O-RING, (1.78 mm x .08 mm) | 896699 |
19 | SENSOR, Pressure | 8M6000637 |
20 | GASKET, Head | 895374T |
21 | PIN | 8M0032379 |
22 | SCREW, (M8 x 115) | 895810115 |
23 | SCREW, (M8 x 50) | 895810050 |
24 | GASKET, Block to Adaptor | 880624003 |
25 | GUIDE, Fixed | 880559 |
26 | GUIDE, Moveable | 880557 |
27 | SCREW | 892456045 |
28 | STUD | 8M0022160 |
29 | NUT, (M8) Stainless Steel | 40138 8 |
30 | SCREW, (M8 x 35 MM) | 8M0103814 |
31 | COVER | 8M0005800 |
- | GASKET SET, Powerhead | 880552A08 |
- | LONG BLOCK ASSEMBLY | 895247A08 |
Quick Overview
MERCURY_895374T
SKU : 895374T
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
