MERCURY 89566 5 Guide Tube

Write a Review
$88.17
SKU:
895665
Schematic Object Key:
22

MERCURY 89566 5 Guide Tube

$88.17

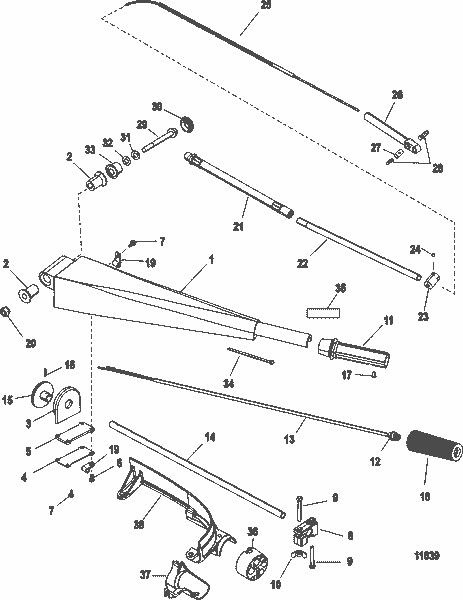

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 89566 5 Guide Tube

Schematic Object Key : 22

Product Description : MERCURY 89566 5 Guide Tube

Product Category : 75 DFI (3 CYL.)(1.5L)/ 1B736885 & Up/ Steering Handle Kit, 896648A09

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- STEERING HANDLE KIT 896648A09
1 HANDLE ASSEMBLY, Steering Arm 12020A 3
NS FITTING, Grease 74036
2 BUSHING 42992T02
3 HOUSING 48414
4 PLATE 48519
5 GASKET 48518
6 SCREW, (#10-16 x .600) 878609
7 SCREW, (#10-16 x .500) 878608
8 CLAMP 889729
9 SCREW, (M5 x 40) 40007112
10 WING NUT, (#10-32) 816874
11 SWITCH KIT, Stop - Throttle Handle 823609A15
12 SWITCH ASSEMBLY, Stop 8M0104612
13 NOT SOLD SEPARATE, Insulator NSS
14 TUBE ASSEMBLY, Throttle 12018A 4
15 NOT SOLD SEPARATE, Drive Wheel NSS
16 NOT SOLD SEPARATE, Roll Pin NSS
17 SCREW, (#10-16 x .375) 62568
18 GRIP 99589003
19 CLIP 64855 2
20 NUT, (M10) 40140
21 CONDUIT, (9.03 Inches) 888524 1
22 GUIDE TUBE 89566 5
23 BARREL, Throttle Actuator 89578
24 SET SCREW, (#10-32) 824081
25 CABLE ASSEMBLY 12019003
26 GUIDE, Cable 43433
27 ANCHOR, Cable End 20007
28 SET SCREW, (#8-32) 20518
29 SCREW, (M10 x 105) Hex Flange - Stainless Steel 823567105
30 CAP 48416T
31 WASHER 40023 19
32 WASHER, (.402 x .787 x .039 Bellevi) 12024
33 SPACER 14601 1
34 TIE STRAP, (8.00 Inches) 816311T
35 NOT SOLD SEPARATE, Decal-Throttle NSS
36 GROMMET, Hose Cable 896641
37 BRACKET 8M0008289
38 CLAMP, Lower 8M0000484
- STEERING HANDLE KIT 896648A09
1 HANDLE ASSEMBLY, Steering Arm 12020A 3
NS FITTING, Grease 74036
2 BUSHING 42992T02
3 HOUSING 48414
4 PLATE 48519
5 GASKET 48518
6 SCREW, (#10-16 x .600) 878609
7 SCREW, (#10-16 x .500) 878608
8 CLAMP 889729
9 SCREW, (M5 x 40) 40007112
10 WING NUT, (#10-32) 816874
11 SWITCH KIT, Stop - Throttle Handle 823609A15
12 SWITCH ASSEMBLY, Stop 8M0104612
13 NOT SOLD SEPARATE, Insulator NSS
14 TUBE ASSEMBLY, Throttle 12018A 4
15 NOT SOLD SEPARATE, Drive Wheel NSS
16 NOT SOLD SEPARATE, Roll Pin NSS
17 SCREW, (#10-16 x .375) 62568
18 GRIP 99589003
19 CLIP 64855 2
20 NUT, (M10) 40140
21 CONDUIT, (9.03 Inches) 888524 1
22 GUIDE TUBE 89566 5
23 BARREL, Throttle Actuator 89578
24 SET SCREW, (#10-32) 824081
25 CABLE ASSEMBLY 12019003
26 GUIDE, Cable 43433
27 ANCHOR, Cable End 20007
28 SET SCREW, (#8-32) 20518
29 SCREW, (M10 x 105) Hex Flange - Stainless Steel 823567105
30 CAP 48416T
31 WASHER 40023 19
32 WASHER, (.402 x .787 x .039 Bellevi) 12024
33 SPACER 14601 1
34 TIE STRAP, (8.00 Inches) 816311T
35 NOT SOLD SEPARATE, Decal-Throttle NSS
36 GROMMET, Hose Cable 896641
37 BRACKET 8M0008289
38 CLAMP, Lower 8M0000484



Quick Overview

TUBE-GUIDE

SKU : 895665

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061560345
