MERCURY 896264T01 Harness Assembly, Engine

Write a Review
$965.64
SKU:
896264T01
Schematic Object Key:
16

MERCURY 896264T01 Harness Assembly, Engine

$965.64

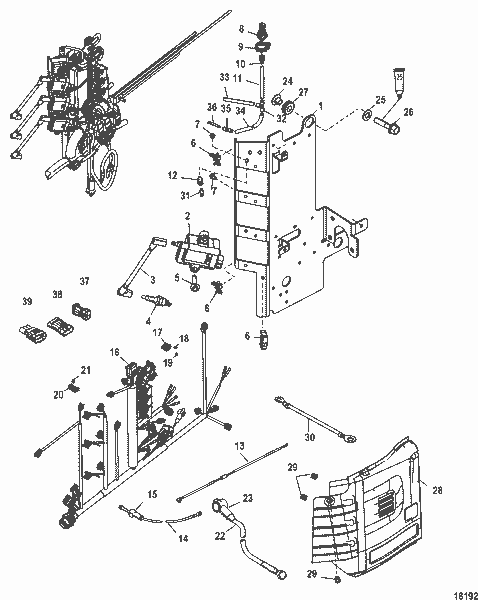

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 896264T01 Harness Assembly, Engine

Schematic Object Key : 16

Product Description : MERCURY 896264T01 Harness Assembly, Engine

Product Category : 75 DFI (3 CYL.)(1.5L)/ 1B227000 THRU 1B417701/ Electrical Components

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- NOT SOLD SEPARATE, Electrical Plate Assembly-Complete NSS
1 PLATE, Electrical 880190T03
2 COIL, Ignition 8M0077471
3 LEAD, Hi Tension 884442T03
4 SPARK PLUG, NGK#IZFR5J 892567Q
5 SCREW, (M6 x 30) 821291 30
6 CLIP 828791
7 SCREW, (M6 x 12) 821300 12
8 SENSOR KIT, (0-50 PSI) 881879A 7
9 CLIP, (.865) 883066
10 FITTING 892403
11 TUBING, (52.00 Inches Bulk) (Cut to 6 Inches) 859785 71
12 PIN, Special 821583 2
13 HARNESS ASSEMBLY, Fuse - 100 Ampere 878231A03
14 HARNESS ASSEMBLY, Starter 882829A03
15 BOOT, Insulator - Red 830233
16 HARNESS ASSEMBLY, Engine 896264T01
17 COVER, Fuse 858754
18 FUSE, Mini - Tan - 5 Ampere 832969T05
19 FUSE, Mini - Yellow - 20 Ampere 832969T20
20 CONNECTOR ASSEMBLY, 8 Pin 877613A 1
21 CLIP 879962
22 CABLE ASSEMBLY, Battery - Positive 88439A25
23 BOOT, Insulator - Red 850067 1
24 BUSHING 850234 1
25 WASHER 40023 18
26 SCREW, (M8 x 35) 824460 35
27 GROMMET 833155
28 COVER 880192T01
29 GROMMET 8M0153609
30 CABLE ASSEMBLY, (12.00 Inches) Black 856583A07
31 SPACER 889992
32 TEE, Fitting 875207
33 TUBING, (52.00 Inches Bulk) (Cut to 1.50 Inches) 859785 71
34 TUBING, (52.00 Inches Bulk) (Cut to 52 Inches) 859785 71
35 COUPLER 859747
36 PLUG 859732
37 CONNECTOR ASSEMBLY, Weather Cap 6 Pin 877613A02
38 CONNECTOR ASSEMBLY, Weather Cap - Male 830796A04
39 CAP ASSEMBLY, Connector - 3 Pin Male 822447T01
- NOT SOLD SEPARATE, Electrical Plate Assembly-Complete NSS
1 PLATE, Electrical 880190T03
2 COIL, Ignition 8M0077471
3 LEAD, Hi Tension 884442T03
4 SPARK PLUG, NGK#IZFR5J 892567Q
5 SCREW, (M6 x 30) 821291 30
6 CLIP 828791
7 SCREW, (M6 x 12) 821300 12
8 SENSOR KIT, (0-50 PSI) 881879A 7
9 CLIP, (.865) 883066
10 FITTING 892403
11 TUBING, (52.00 Inches Bulk) (Cut to 6 Inches) 859785 71
12 PIN, Special 821583 2
13 HARNESS ASSEMBLY, Fuse - 100 Ampere 878231A03
14 HARNESS ASSEMBLY, Starter 882829A03
15 BOOT, Insulator - Red 830233
16 HARNESS ASSEMBLY, Engine 896264T01
17 COVER, Fuse 858754
18 FUSE, Mini - Tan - 5 Ampere 832969T05
19 FUSE, Mini - Yellow - 20 Ampere 832969T20
20 CONNECTOR ASSEMBLY, 8 Pin 877613A 1
21 CLIP 879962
22 CABLE ASSEMBLY, Battery - Positive 88439A25
23 BOOT, Insulator - Red 850067 1
24 BUSHING 850234 1
25 WASHER 40023 18
26 SCREW, (M8 x 35) 824460 35
27 GROMMET 833155
28 COVER 880192T01
29 GROMMET 8M0153609
30 CABLE ASSEMBLY, (12.00 Inches) Black 856583A07
31 SPACER 889992
32 TEE, Fitting 875207
33 TUBING, (52.00 Inches Bulk) (Cut to 1.50 Inches) 859785 71
34 TUBING, (52.00 Inches Bulk) (Cut to 52 Inches) 859785 71
35 COUPLER 859747
36 PLUG 859732
37 CONNECTOR ASSEMBLY, Weather Cap 6 Pin 877613A02
38 CONNECTOR ASSEMBLY, Weather Cap - Male 830796A04
39 CAP ASSEMBLY, Connector - 3 Pin Male 822447T01



Quick Overview

HARNESS-ENGINE 84

SKU : 896264T01

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061663169
