MERCURY 896271 Hose

Write a Review
$30.58
SKU:
896271
Schematic Object Key:
55

MERCURY 896271 Hose

$30.58

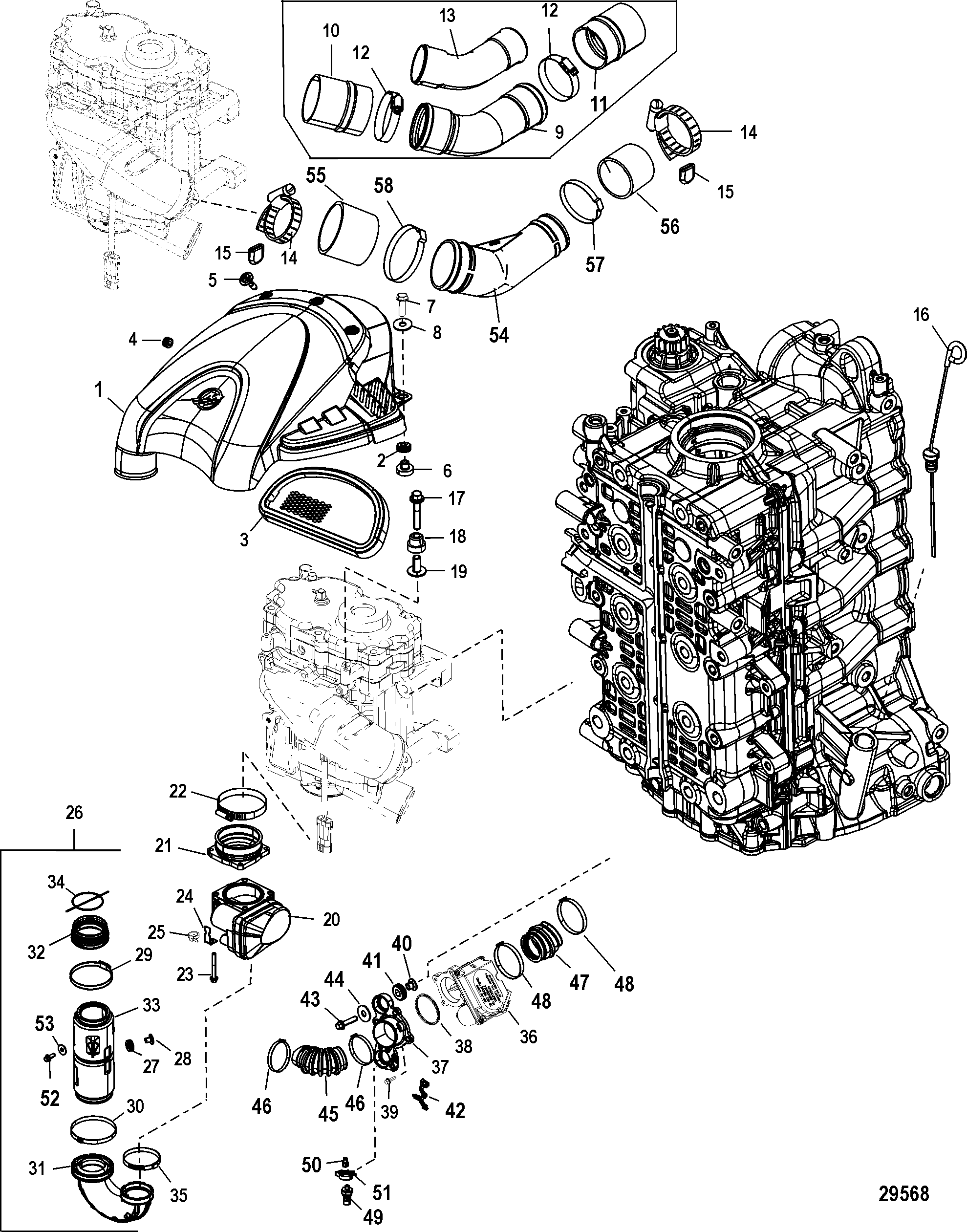

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 896271 Hose

Schematic Object Key : 55

Product Description : MERCURY 896271 Hose

Product Category : 135 VERADO (4-STROKE)(4 CYL.)/ 1B381712 THRU 1B517158/ Induction Components

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 INTAKE ASSEMBLY, Upper 896246A04
2 GROMMET 834985 1
3 FILTER 896247
4 GROMMET, Fuel Vent Hose 20116
5 SCREW 897703
6 BUSHING 826618
7 SCREW, (M6 x 25) Stainless Steel 40011129
8 WASHER, (.265 x .750 x .048) Stainless Steel 65567
9 TUBE OUTLET ASSEMBLY 8M0035481
10 HOSE, (65 Inside Diameter) 893389
11 HOSE, (60 Inside Diameter) 893390
12 CLAMP 893342
13 HOSE SLEEVE 893391
14 CLAMP 893342
15 COVER, Hose Clamp End 8M0074364
16 DIPSTICK, Oil 898022
17 SCREW, (M6 x 30 MM) Stainless Steel 8M0103808
18 GROMMET 813644002
19 BUSHING 898445
20 CONTROL ASSEMBLY, Throttle - Electronic 892949T02
21 ISOLATOR 892950T02
22 CLAMP, Worm Gear 815504244
23 SCREW, (M6 x 50 MM) Stainless Steel 885525 50
24 BRACKET 884353
25 TIE STRAP, (8.00 Inches) 816311T
26 INTAKE ASSEMBLY, Lower 892383T51
27 GROMMET 834985 1
28 BUSHING 856954
29 CLAMP 888988026
30 CLAMP 888988027
31 DUCT, Inlet 896245001
32 COUPLER 896244
33 NOT SOLD SEPARATE, Resonator NSS
34 SPRING 896532
35 CLAMP, Oetiker 889691
36 VALVE KIT, Control - Electric Boost 884408A08
37 PLATE, Boost Valve Mounting 887939007
38 O-RING 892079
39 SCREW, (M6 x 20 MM) Stainless Steel 8M0103806
40 BUSHING 850234 1
41 GROMMET 833155
42 CLIP 859376
43 SCREW, (M8 x 35 MM) 8M0103814
44 WASHER, (.344 x 1.00 x .063) Stainless Steel 817274
45 HOSE 892947001
46 CLAMP, (57.5 mm), Front Electronic Boost Control 888988002
47 TUBE, Rear 887938003
48 CLAMP, (62.0 mm), Rear Electronic Boost Control 888988004
49 SENSOR ASSEMBLY, Pitot 881879T25
50 FITTING 892403
51 CLIP, (.865) 883066
52 SCREW, (M6 x 25 MM) Stainless Steel 8M0103807
53 WASHER, (.265 x .750 x .048) Stainless Steel 65567
54 TUBE ASSEMBLY, Hot Air Duct 8M0035481
55 HOSE 896271
56 HOSE 896259
57 CLAMP, Oetiker 888988021
58 CLAMP, Oetiker 888988020
1 INTAKE ASSEMBLY, Upper 896246A04
2 GROMMET 834985 1
3 FILTER 896247
4 GROMMET, Fuel Vent Hose 20116
5 SCREW 897703
6 BUSHING 826618
7 SCREW, (M6 x 25) Stainless Steel 40011129
8 WASHER, (.265 x .750 x .048) Stainless Steel 65567
9 TUBE OUTLET ASSEMBLY 8M0035481
10 HOSE, (65 Inside Diameter) 893389
11 HOSE, (60 Inside Diameter) 893390
12 CLAMP 893342
13 HOSE SLEEVE 893391
14 CLAMP 893342
15 COVER, Hose Clamp End 8M0074364
16 DIPSTICK, Oil 898022
17 SCREW, (M6 x 30 MM) Stainless Steel 8M0103808
18 GROMMET 813644002
19 BUSHING 898445
20 CONTROL ASSEMBLY, Throttle - Electronic 892949T02
21 ISOLATOR 892950T02
22 CLAMP, Worm Gear 815504244
23 SCREW, (M6 x 50 MM) Stainless Steel 885525 50
24 BRACKET 884353
25 TIE STRAP, (8.00 Inches) 816311T
26 INTAKE ASSEMBLY, Lower 892383T51
27 GROMMET 834985 1
28 BUSHING 856954
29 CLAMP 888988026
30 CLAMP 888988027
31 DUCT, Inlet 896245001
32 COUPLER 896244
33 NOT SOLD SEPARATE, Resonator NSS
34 SPRING 896532
35 CLAMP, Oetiker 889691
36 VALVE KIT, Control - Electric Boost 884408A08
37 PLATE, Boost Valve Mounting 887939007
38 O-RING 892079
39 SCREW, (M6 x 20 MM) Stainless Steel 8M0103806
40 BUSHING 850234 1
41 GROMMET 833155
42 CLIP 859376
43 SCREW, (M8 x 35 MM) 8M0103814
44 WASHER, (.344 x 1.00 x .063) Stainless Steel 817274
45 HOSE 892947001
46 CLAMP, (57.5 mm), Front Electronic Boost Control 888988002
47 TUBE, Rear 887938003
48 CLAMP, (62.0 mm), Rear Electronic Boost Control 888988004
49 SENSOR ASSEMBLY, Pitot 881879T25
50 FITTING 892403
51 CLIP, (.865) 883066
52 SCREW, (M6 x 25 MM) Stainless Steel 8M0103807
53 WASHER, (.265 x .750 x .048) Stainless Steel 65567
54 TUBE ASSEMBLY, Hot Air Duct 8M0035481
55 HOSE 896271
56 HOSE 896259
57 CLAMP, Oetiker 888988021
58 CLAMP, Oetiker 888988020



Quick Overview

HOSE 32

SKU : 896271

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061791848
