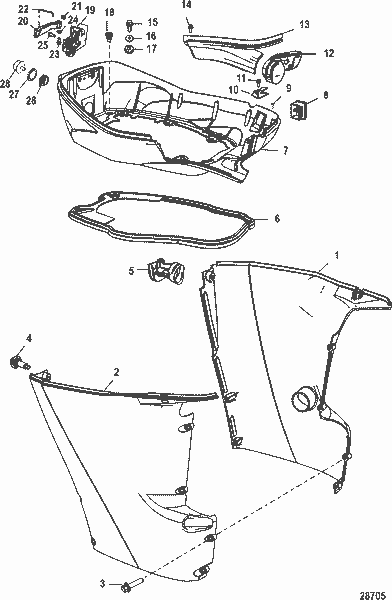

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 8
Product Description : MERCURY 897203 Plug
Product Category : 40 Carb (3 CYL.)(4-STROKE)/ 1C018826 & Up/ Bottom Cowl
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | CHAP, Short - Port | 852554T03 |
1 | CHAP, Long - Port | 826277T04 |
2 | CHAP, Short - Starboard | 852555T06 |
2 | CHAP, Long - Starboard | 826278T08 |
3 | SCREW, (M6 x 25 MM) | 8M0022324 |
4 | SHOULDER SCREW, (M6) | 892073002 |
5 | BOOT | 8M0026036 |
6 | SEAL | 8M0026035 |
7 | PAN | 889246T99 |
8 | PLUG | 897203 |
9 | SCREW, (M8 x 13) Stainless Steel | 40011146 |
10 | HOOK | 8M4501716 |
11 | SCREW, (M6 x 16 MM) Stainless Steel | 8M0103805 |
12 | GROMMET | 8M4502035 |
13 | CAP | 879147T24 |
14 | SCREW, (M6 x 16 MM) Stainless Steel | 8M0103805 |
15 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
16 | BUSHING | 856954 |
17 | GROMMET | 8M0025696 |
18 | DRAIN, Cowl | 888819002 |
19 | LATCH ASSEMBLY, Rear | 822426T03 |
19 | LATCH ASSEMBLY, Rear | 822426T03 |
20 | HANDLE, Rear Latch | 8M4501033 |
20 | NOT SOLD SEPARATE, Handle-Rear Latch | NSS |
21 | SEAL | 8M0006060 |
22 | LINK | 8M0006062 |
23 | SCREW, (M6 x 14 MM) Stainless Steel | 885525 14 |
24 | WASHER | 897936 |
25 | SCREW, (M6 x 20 MM) Stainless Steel | 8M0103806 |
26 | GROMMET | 8M4503674 |
27 | WASHER | 855576 |
28 | FITTING | 827948 |
1 | CHAP, Short - Port | 852554T03 |
1 | CHAP, Long - Port | 826277T04 |
2 | CHAP, Short - Starboard | 852555T06 |
2 | CHAP, Long - Starboard | 826278T08 |
3 | SCREW, (M6 x 25 MM) | 8M0022324 |
4 | SHOULDER SCREW, (M6) | 892073002 |
5 | BOOT | 8M0026036 |
6 | SEAL | 8M0026035 |
7 | PAN | 889246T99 |
8 | PLUG | 897203 |
9 | SCREW, (M8 x 13) Stainless Steel | 40011146 |
10 | HOOK | 8M4501716 |
11 | SCREW, (M6 x 16 MM) Stainless Steel | 8M0103805 |
12 | GROMMET | 8M4502035 |
13 | CAP | 879147T24 |
14 | SCREW, (M6 x 16 MM) Stainless Steel | 8M0103805 |
15 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
16 | BUSHING | 856954 |
17 | GROMMET | 8M0025696 |
18 | DRAIN, Cowl | 888819002 |
19 | LATCH ASSEMBLY, Rear | 822426T03 |
19 | LATCH ASSEMBLY, Rear | 822426T03 |
20 | HANDLE, Rear Latch | 8M4501033 |
20 | NOT SOLD SEPARATE, Handle-Rear Latch | NSS |
21 | SEAL | 8M0006060 |
22 | LINK | 8M0006062 |
23 | SCREW, (M6 x 14 MM) Stainless Steel | 885525 14 |
24 | WASHER | 897936 |
25 | SCREW, (M6 x 20 MM) Stainless Steel | 8M0103806 |
26 | GROMMET | 8M4503674 |
27 | WASHER | 855576 |
28 | FITTING | 827948 |
Quick Overview
PLUG 19
SKU : 897203
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061677173
