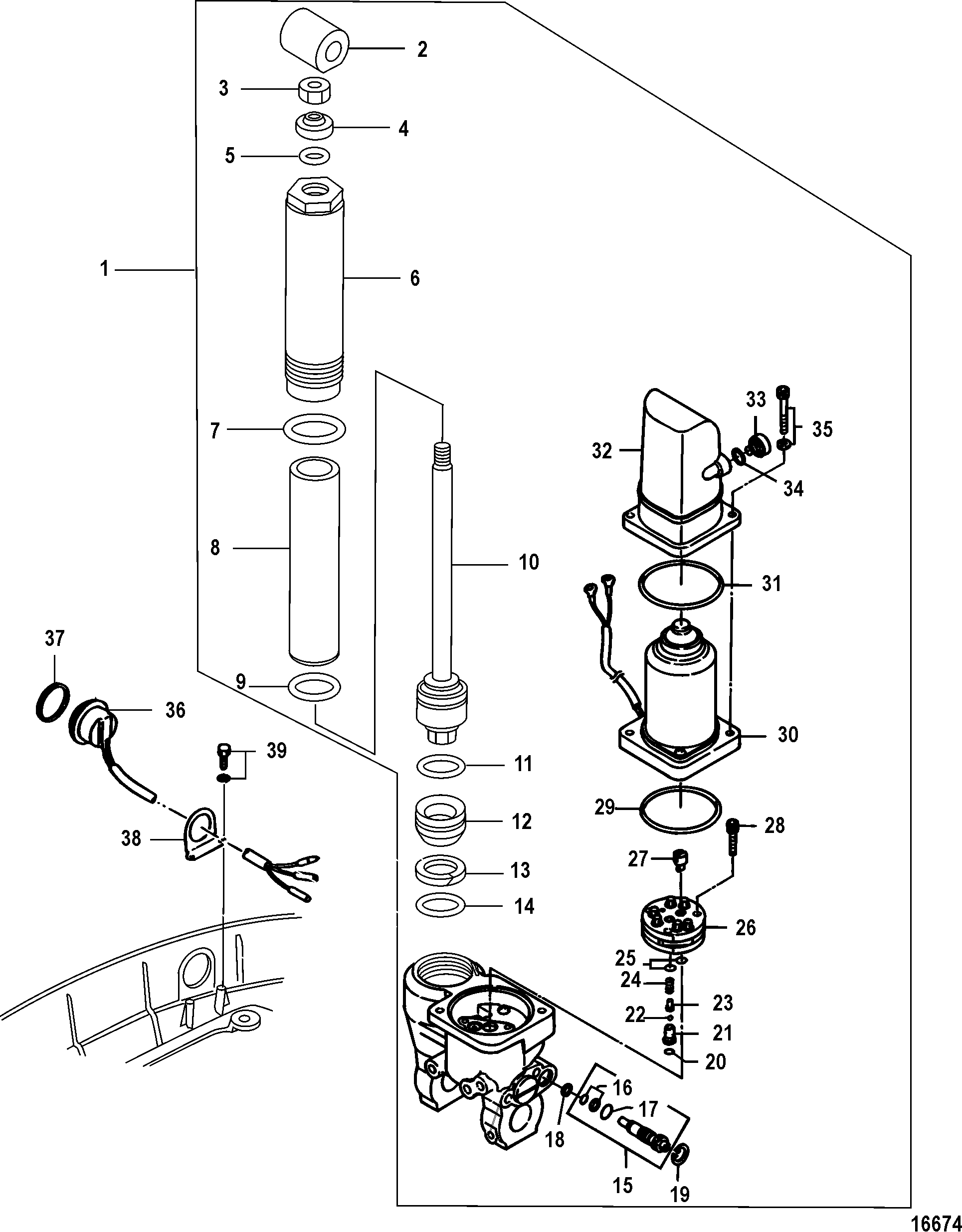

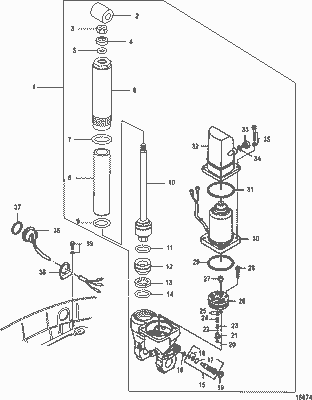

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 34
Product Description : MERCURY 898101129 O-Ring
Product Category : 30 EFI (3 CYL.)(4-STROKE)/ 0R106999 & Up/ Power Trim\Tilt Components
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | POWER TRIM/TILT ASSEMBLY | 851873T03 |
2 | JOINT | 898101246 |
3 | NUT | 898101247 |
4 | SEAL | 898101248 |
5 | O-RING | 898101249 |
6 | CYLINDER | 898103T36 |
7 | O-RING | 898101254 |
8 | TUBE, Inner | 898103T37 |
9 | O-RING | 898101255 |
10 | ROD ASSEMBLY, Piston | 898103T38 |
11 | O-RING | 898101250 |
12 | PISTON | 898101251 |
13 | RING | 898101252 |
14 | O-RING | 898101253 |
15 | MANUAL VALVE ASSEMBLY | 898101115 |
16 | SEAL SET | 898101167 |
17 | O-RING | 812641003 |
18 | SEAL | 898101245 |
19 | C RING | 804027002 |
20 | O-RING | 803513009 |
21 | SEAT, Valve | 898101213 |
22 | BALL | 898101005 |
23 | SEAT, Spring | 898101180 |
24 | SPRING | 898101176 |
25 | O-RING | 16131 4 |
26 | PUMP | 898103T12 |
27 | COUPLING | 851877001 |
28 | BOLT | 851866 3 |
29 | O-RING | 16131011 |
30 | MOTOR ASSEMBLY | 898103T31 |
31 | O-RING | 898101130 |
32 | TANK, Reservoir | 898103T15 |
33 | CAP ASSEMBLY | 898101024 |
34 | O-RING | 898101129 |
35 | SCREW | 898101015 |
36 | SWITCH, PTT | 898103011 |
37 | O-RING | 898101145 |
38 | BRACKET, Switch | 896630 |
39 | SCREW, (M6 x 16) | 824832 4 |
1 | POWER TRIM/TILT ASSEMBLY | 851873T03 |
2 | JOINT | 898101246 |
3 | NUT | 898101247 |
4 | SEAL | 898101248 |
5 | O-RING | 898101249 |
6 | CYLINDER | 898103T36 |
7 | O-RING | 898101254 |
8 | TUBE, Inner | 898103T37 |
9 | O-RING | 898101255 |
10 | ROD ASSEMBLY, Piston | 898103T38 |
11 | O-RING | 898101250 |
12 | PISTON | 898101251 |
13 | RING | 898101252 |
14 | O-RING | 898101253 |
15 | MANUAL VALVE ASSEMBLY | 898101115 |
16 | SEAL SET | 898101167 |
17 | O-RING | 812641003 |
18 | SEAL | 898101245 |
19 | C RING | 804027002 |
20 | O-RING | 803513009 |
21 | SEAT, Valve | 898101213 |
22 | BALL | 898101005 |
23 | SEAT, Spring | 898101180 |
24 | SPRING | 898101176 |
25 | O-RING | 16131 4 |
26 | PUMP | 898103T12 |
27 | COUPLING | 851877001 |
28 | BOLT | 851866 3 |
29 | O-RING | 16131011 |
30 | MOTOR ASSEMBLY | 898103T31 |
31 | O-RING | 898101130 |
32 | TANK, Reservoir | 898103T15 |
33 | CAP ASSEMBLY | 898101024 |
34 | O-RING | 898101129 |
35 | SCREW | 898101015 |
36 | SWITCH, PTT | 898103011 |
37 | O-RING | 898101145 |
38 | BRACKET, Switch | 896630 |
39 | SCREW, (M6 x 16) | 824832 4 |
Quick Overview
O RING 25
SKU : 898101129
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061682665
