MERCURY 898101336 Grommet

Write a Review
$7.30
SKU:
898101336
Schematic Object Key:
27

MERCURY 898101336 Grommet

$7.30

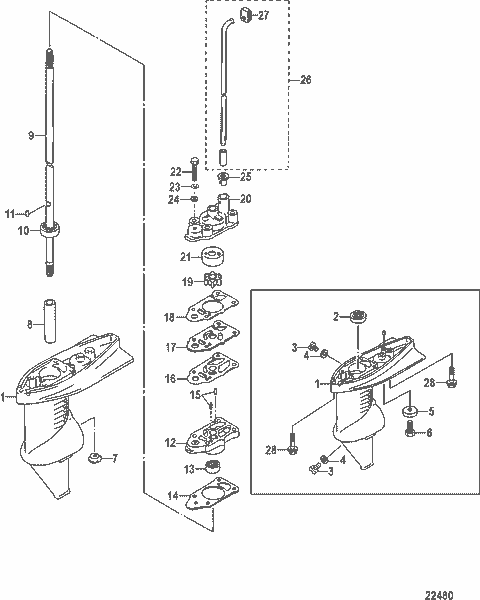

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 898101336 Grommet

Schematic Object Key : 27

Product Description : MERCURY 898101336 Grommet

Product Category : 2 (4-STROKE) Carb/ 0R131842 & Up/ Gear Housing Assembly, Driveshaft

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY, Complete - Short 898103T73
- GEAR HOUSING ASSEMBLY, Complete - Long 898103T74
1 GEAR HOUSING ASSEMBLY, Basic 898103T64
2 BEARING, Ball 95342
3 PLUG 95368 3
4 GASKET 95220
5 ANODE 823913Q
6 BOLT, (M6 x 16) 16832
7 GEAR 16138
8 SPACER 810471 1
9 DRIVESHAFT, Short 823048002
9 DRIVESHAFT, Long 898101370
10 BEARING, Ball 95342
11 KEY 16155
12 HOUSING ASSEMBLY, Lower Water Pump 16161A01
13 SEAL, Oil 16162 1
14 GASKET, Water Pump Housing - Lower 898101333
15 PIN, Roll - Stainless Steel 95218 11
16 GASKET 161603
17 PLATE, Water Pump Guide 898101371
18 GASKET, Water Pump Housing - Upper 898101331
19 IMPELLER 16154 3
20 HOUSING ASSEMBLY, Upper Water Pump 16156A01
21 LINER 16157 1
22 BOLT 8M0063198
23 LOCKWASHER, (M6) 40025 6
24 WASHER, Stainless Steel 879194338
25 GROMMET 95361 1
26 TUBE, Water - Short 898101334
26 TUBE, Water - Long 898101335
27 GROMMET 898101336
28 BOLT 898103225
- GASKET SET, Lower Unit 8M0082881
- REPAIR KIT, Water Impeller 889246A16
- GEAR HOUSING ASSEMBLY, Complete - Short 898103T73
- GEAR HOUSING ASSEMBLY, Complete - Long 898103T74
1 GEAR HOUSING ASSEMBLY, Basic 898103T64
2 BEARING, Ball 95342
3 PLUG 95368 3
4 GASKET 95220
5 ANODE 823913Q
6 BOLT, (M6 x 16) 16832
7 GEAR 16138
8 SPACER 810471 1
9 DRIVESHAFT, Short 823048002
9 DRIVESHAFT, Long 898101370
10 BEARING, Ball 95342
11 KEY 16155
12 HOUSING ASSEMBLY, Lower Water Pump 16161A01
13 SEAL, Oil 16162 1
14 GASKET, Water Pump Housing - Lower 898101333
15 PIN, Roll - Stainless Steel 95218 11
16 GASKET 161603
17 PLATE, Water Pump Guide 898101371
18 GASKET, Water Pump Housing - Upper 898101331
19 IMPELLER 16154 3
20 HOUSING ASSEMBLY, Upper Water Pump 16156A01
21 LINER 16157 1
22 BOLT 8M0063198
23 LOCKWASHER, (M6) 40025 6
24 WASHER, Stainless Steel 879194338
25 GROMMET 95361 1
26 TUBE, Water - Short 898101334
26 TUBE, Water - Long 898101335
27 GROMMET 898101336
28 BOLT 898103225
- GASKET SET, Lower Unit 8M0082881
- REPAIR KIT, Water Impeller 889246A16



Quick Overview

GROMMET 25

SKU : 898101336

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061716827
