MERCURY 898101407 Screw, Stop

Write a Review
$14.00
SKU:
898101407
Schematic Object Key:
2

MERCURY 898101407 Screw, Stop

$14.00

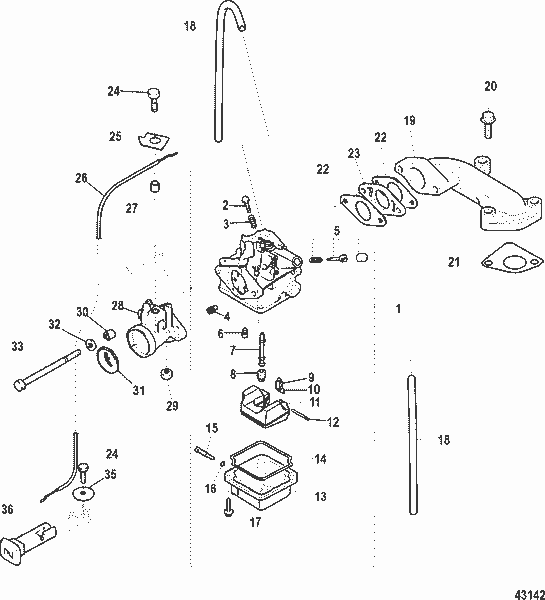

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 898101407 Screw, Stop

Schematic Object Key : 2

Product Description : MERCURY 898101407 Screw, Stop

Product Category : 3.5 (4-STROKE) Carb/ 0R131842 & Up/Carburetor, Non-Epa Models-Serial # 0R448033 And

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 CARBURETOR 853720T23
1 CARBURETOR 853720T24
1 CARBURETOR 853720T25
2 SCREW, Stop 898101407
3 SPRING 803554
4 JET, Slow Air (#115) 898103244
4 NOT SOLD SEPARATE NSS
5 SET SCREW, Pilot 898101289
6 PLUG, Rubber 8M0060417
7 MAIN NOZZLE 898103238
7 MAIN NOZZLE 898103239
7 MAIN NOZZLE 812650 6
8 JET, Main (#58) 16250012
8 JET, Main (#65) 16250 8
8 JET, Main (#68) 16250011
9 FLOAT VALVE, Brass 16254 3
10 CLIP, Stainless Steel 803525
11 FLOAT 898103245
12 PIN, Float - Stainless Steel 16256 2
13 FLOAT BOWL 898103240
14 GASKET, Rubber 803508 4
15 SCREW, Drain (M5 x 6) 803509 3
16 O-RING, Rubber 803513 1
17 SCREW, (M4 x 12) 16260
18 HOSE, Rubber (230 mm) 898101365
19 MANIFOLD, Intake 879147T98
20 SCREW KIT 16830A 1
21 GASKET, Intake Manifold 898101291
22 GASKET 803508013
23 GASKET, Insulator 803508 10
24 BOLT, (M6 x 16) 16832
25 BRACKET 803528
26 CABLE, Choke Link 898101293
27 COLLAR 804371
28 SILENCER, Air 803526T
29 NUT 400212
30 COLLAR 95286 8
31 FLAME TRAP 803527
32 WASHER 879194338
33 SCREW 898103229
34 BOLT 879194248
35 WASHER 16140 4
36 ROD, Choke 804646
- REPAIR KIT, Carburetor 8M0090764
- GASKET SET, Powerhead 898103A67
1 CARBURETOR 853720T23
1 CARBURETOR 853720T24
1 CARBURETOR 853720T25
2 SCREW, Stop 898101407
3 SPRING 803554
4 JET, Slow Air (#115) 898103244
4 NOT SOLD SEPARATE NSS
5 SET SCREW, Pilot 898101289
6 PLUG, Rubber 8M0060417
7 MAIN NOZZLE 898103238
7 MAIN NOZZLE 898103239
7 MAIN NOZZLE 812650 6
8 JET, Main (#58) 16250012
8 JET, Main (#65) 16250 8
8 JET, Main (#68) 16250011
9 FLOAT VALVE, Brass 16254 3
10 CLIP, Stainless Steel 803525
11 FLOAT 898103245
12 PIN, Float - Stainless Steel 16256 2
13 FLOAT BOWL 898103240
14 GASKET, Rubber 803508 4
15 SCREW, Drain (M5 x 6) 803509 3
16 O-RING, Rubber 803513 1
17 SCREW, (M4 x 12) 16260
18 HOSE, Rubber (230 mm) 898101365
19 MANIFOLD, Intake 879147T98
20 SCREW KIT 16830A 1
21 GASKET, Intake Manifold 898101291
22 GASKET 803508013
23 GASKET, Insulator 803508 10
24 BOLT, (M6 x 16) 16832
25 BRACKET 803528
26 CABLE, Choke Link 898101293
27 COLLAR 804371
28 SILENCER, Air 803526T
29 NUT 400212
30 COLLAR 95286 8
31 FLAME TRAP 803527
32 WASHER 879194338
33 SCREW 898103229
34 BOLT 879194248
35 WASHER 16140 4
36 ROD, Choke 804646
- REPAIR KIT, Carburetor 8M0090764
- GASKET SET, Powerhead 898103A67



Quick Overview

SCREW-STOP 10

SKU : 898101407

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061764569
