MERCURY 898103108 Arm, Reverse Lock

Write a Review
$14.40
SKU:
898103108
Schematic Object Key:
35

MERCURY 898103108 Arm, Reverse Lock

$14.40

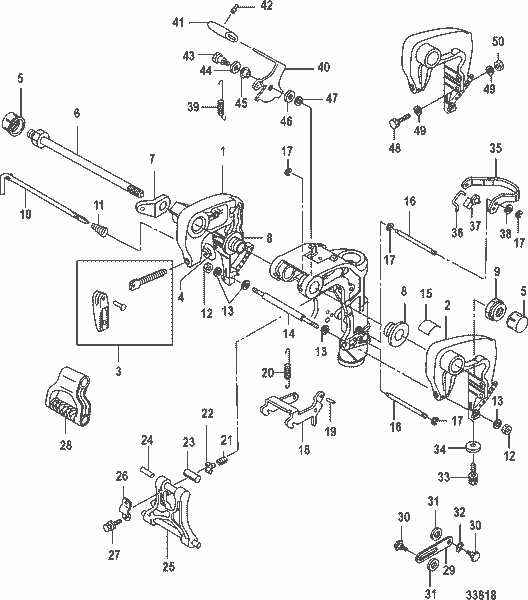

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 898103108 Arm, Reverse Lock

Schematic Object Key : 35

Product Description : MERCURY 898103108 Arm, Reverse Lock

Product Category : 10 Carb(2CYL)(4-STROKE)/ 0R575531 & Up/ Clamp Brackets, Manual Tilt

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 CLAMP BRACKET, Starboard 879147T73
2 CLAMP BRACKET, Port 879147T74
3 THUMB SCREW ASSEMBLY, 14 MM Thread Size 8M0054653
4 PAD 95379
5 CAP NUT 853722 14
6 TILT TUBE ASSEMBLY 898101191
7 PLATE 895163002
8 BUSHING 853743 5
9 NUT, Nylon 853722029
10 THRUST ROD ASSEMBLY 898103101
11 SPRING 815093003
12 NUT 400212
13 WASHER 879194338
14 DISTANCE PIECE 898101938
15 DECAL, Co-Pilot 823701004
16 SHAFT, Reverse Lock 898101152
17 E RING 95318 1
18 REVERSE LOCK 879147T77
19 PIN, Spring 17033 1
20 SPRING, Reverse Lock 898103111
21 SPRING 95383 2
22 STOP 853774
23 BUSHING 16336 4
24 PIN, Spring 898103104
25 STOPPER, Tilt 898103103
26 SET PLATE 803781001
27 BOLT 8M0101654
28 HANDLE, Carrying 815082002
29 STOPPER, Tilt 898103105
30 SCREW 898101014
31 WASHER 8M0135942
32 WAVE WASHER 853723 2
33 BOLT, (M6 x 20) 16705 1
34 ANODE 823913Q
35 ARM, Reverse Lock 898103108
36 LINK, Reverse Lock 898103112
37 SNAP, Link Rod 17643 1
38 COLLAR 898103109
39 SPRING, Reverse Lock Lever 898103110
40 LEVER, Reverse Lock 879147T76
41 GRIP, Reverse Lock Lever 898103106
42 BUTTON 8M0051399
43 BOLT, Shoulder 803790001
44 WASHER 16192
45 BUSHING 898103107
46 WASHER 95392 5
47 WASHER, Stainless Steel 95392 1
48 BOLT 8M0094877
49 WASHER 16192
50 NUT, Nylon 95374
1 CLAMP BRACKET, Starboard 879147T73
2 CLAMP BRACKET, Port 879147T74
3 THUMB SCREW ASSEMBLY, 14 MM Thread Size 8M0054653
4 PAD 95379
5 CAP NUT 853722 14
6 TILT TUBE ASSEMBLY 898101191
7 PLATE 895163002
8 BUSHING 853743 5
9 NUT, Nylon 853722029
10 THRUST ROD ASSEMBLY 898103101
11 SPRING 815093003
12 NUT 400212
13 WASHER 879194338
14 DISTANCE PIECE 898101938
15 DECAL, Co-Pilot 823701004
16 SHAFT, Reverse Lock 898101152
17 E RING 95318 1
18 REVERSE LOCK 879147T77
19 PIN, Spring 17033 1
20 SPRING, Reverse Lock 898103111
21 SPRING 95383 2
22 STOP 853774
23 BUSHING 16336 4
24 PIN, Spring 898103104
25 STOPPER, Tilt 898103103
26 SET PLATE 803781001
27 BOLT 8M0101654
28 HANDLE, Carrying 815082002
29 STOPPER, Tilt 898103105
30 SCREW 898101014
31 WASHER 8M0135942
32 WAVE WASHER 853723 2
33 BOLT, (M6 x 20) 16705 1
34 ANODE 823913Q
35 ARM, Reverse Lock 898103108
36 LINK, Reverse Lock 898103112
37 SNAP, Link Rod 17643 1
38 COLLAR 898103109
39 SPRING, Reverse Lock Lever 898103110
40 LEVER, Reverse Lock 879147T76
41 GRIP, Reverse Lock Lever 898103106
42 BUTTON 8M0051399
43 BOLT, Shoulder 803790001
44 WASHER 16192
45 BUSHING 898103107
46 WASHER 95392 5
47 WASHER, Stainless Steel 95392 1
48 BOLT 8M0094877
49 WASHER 16192
50 NUT, Nylon 95374



Quick Overview

ARM REVERSE LOCK

SKU : 898103108

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061812444
