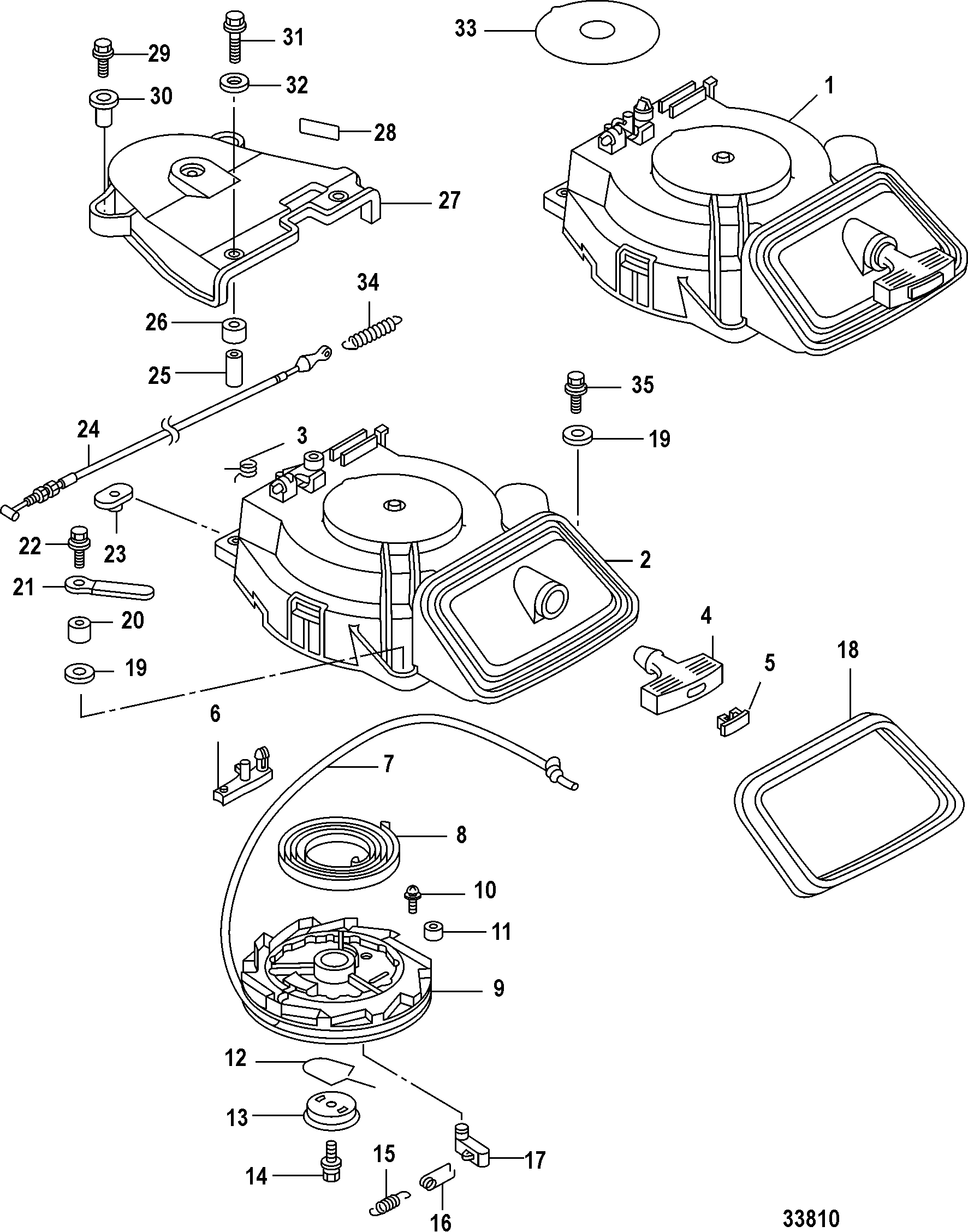

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 17
Product Description : MERCURY 898103119 Ratchet
Product Category : 15 Carb(2CYL)(4-STROKE)/ 0R235949 & Up/ Recoil Starter
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | STARTER ASSEMBLY, Recoil | 8M0126983 |
2 | HOUSING, Starter | 879147T84 |
3 | SPRING, Starter Lock | 812645008 |
4 | HANDLE, Starter | 8M0136189 |
5 | CAP, Starter Handle | 853755002 |
6 | LOCK, Starter | 804031002 |
7 | ROPE, Starter | 8M0110715 |
8 | SPRING, Starter | 804024008 |
9 | REEL | 898103118 |
10 | SCREW, Tapping | 898103121 |
11 | BUSHING | 898103120 |
12 | SPRING, Friction | 852778010 |
13 | PLATE, Friction | 812638002 |
14 | BOLT, Starter Shaft | 812637002 |
15 | SPRING, Return | 812634004 |
16 | GUIDE, Ratchet | 898101148 |
17 | RATCHET | 898103119 |
18 | SEAL, Starter | 898103123 |
19 | WASHER, Stainless Steel | 95392 1 |
20 | COLLAR | 803573 1 |
21 | CLAMP | 8M0130961 |
22 | BOLT | 879194264 |
23 | NUT | 856949002 |
24 | WIRE , Starter Lock | 898103164 |
25 | COLLAR, Steel | 895162001 |
26 | GROMMET, Rubber | 881305006 |
27 | COVER, Belt | 895133T01 |
28 | NOT SOLD SEPARATE, Decal-Spark Plug | NSS |
29 | BOLT | 879194249 |
30 | COLLAR | 898101941 |
31 | BOLT | 16830 |
32 | WASHER, Stainless Steel | 95392 1 |
33 | DECAL, Caution, Decal-Caution | 8M0056964 |
34 | SPRING, Starter Lock Cam | 898101185 |
35 | BOLT | 879194249 |
- | DECAL, Interferance | 898103193 |
1 | STARTER ASSEMBLY, Recoil | 8M0126983 |
2 | HOUSING, Starter | 879147T84 |
3 | SPRING, Starter Lock | 812645008 |
4 | HANDLE, Starter | 8M0136189 |
5 | CAP, Starter Handle | 853755002 |
6 | LOCK, Starter | 804031002 |
7 | ROPE, Starter | 8M0110715 |
8 | SPRING, Starter | 804024008 |
9 | REEL | 898103118 |
10 | SCREW, Tapping | 898103121 |
11 | BUSHING | 898103120 |
12 | SPRING, Friction | 852778010 |
13 | PLATE, Friction | 812638002 |
14 | BOLT, Starter Shaft | 812637002 |
15 | SPRING, Return | 812634004 |
16 | GUIDE, Ratchet | 898101148 |
17 | RATCHET | 898103119 |
18 | SEAL, Starter | 898103123 |
19 | WASHER, Stainless Steel | 95392 1 |
20 | COLLAR | 803573 1 |
21 | CLAMP | 8M0130961 |
22 | BOLT | 879194264 |
23 | NUT | 856949002 |
24 | WIRE , Starter Lock | 898103164 |
25 | COLLAR, Steel | 895162001 |
26 | GROMMET, Rubber | 881305006 |
27 | COVER, Belt | 895133T01 |
28 | NOT SOLD SEPARATE, Decal-Spark Plug | NSS |
29 | BOLT | 879194249 |
30 | COLLAR | 898101941 |
31 | BOLT | 16830 |
32 | WASHER, Stainless Steel | 95392 1 |
33 | DECAL, Caution, Decal-Caution | 8M0056964 |
34 | SPRING, Starter Lock Cam | 898101185 |
35 | BOLT | 879194249 |
- | DECAL, Interferance | 898103193 |
Quick Overview
RATCHET
SKU : 898103119
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061811621
