MERCURY 898103139 Knob

Write a Review
$5.60
SKU:
898103139
Schematic Object Key:
48

MERCURY 898103139 Knob

$5.60

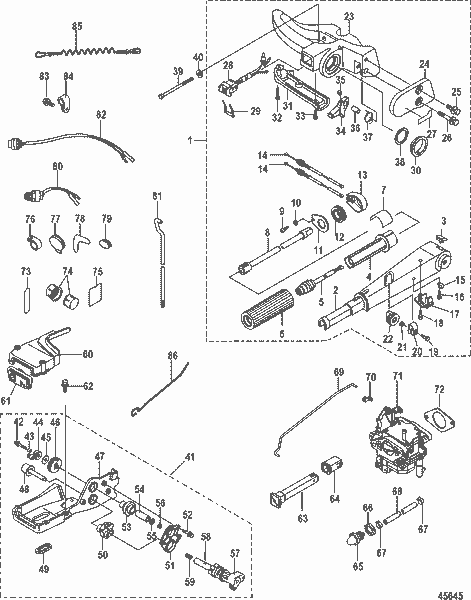

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 898103139 Knob

Schematic Object Key : 48

Product Description : MERCURY 898103139 Knob

Product Category : 15 Carb(2CYL)(4-STROKE)/ 0R235949 & Up/Tiller Handle Conversion Kit, Electric - 8M005106

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- CONVERSION KIT, Tiller Handle, (Electric Remote Control to Electric Handle) 8M0051060
1 NOT SOLD SEPARATE, TILLER HANDLE ASSEMBLY NSS
2 TILLER HANDLE 8M0051374
3 PLUG, Cap 8M0051375
4 GRIP 8M0051377
5 SWITCH ASSEMBLY, Stop 8M0051405
6 GRIP, Rubber 8M0051376
7 DECAL, Tiller Handle Shift-Rabbit 896853008
8 SHAFT, Throttle 8M0051379
9 SCREW, (#10-16 x .500) 878608
10 WASHER, Stainless Steel 16080
11 COVER 8M0051388
12 PULLEY 8M0051386
13 HOUSING 8M0051387
14 CABLE, Throttle 8M0051391
15 CLIP 22740
16 SCREW 8M0051381
17 BRACKET, Aluminum 8M0051380
18 SCREW 8M0051381
19 BOLT 4000330
20 CLAMP, Friction - Throttle 8M0051382
21 SPRING, Stainless Steel 8M0051384
22 NUT 8M0051383
23 HANDLE, Carrying 8M0051392
24 COVER 8M0051400
25 BOLT, Stainless Steel 823042
26 BOLT, Stainless Steel 8M0051402
27 DECAL, Tiller Lock Release 892904006
28 SWITCH ASSEMBLY, Stop 892395A01
29 RETAINER, Brass 8M0032846
30 BUSHING, Plastic 8M0051403
31 COVER 8M0051393
32 BOLT 4000330
33 SCREW, Stainless Steel (M4 x 16) 8M0051394
34 LEVER, Tiller Lock - Stainless Steel 8M0051396
35 NUT 8M0051383
36 COLLAR, Stainless Steel 8M0051397
37 SPRING, Stainless Steel 8M0051398
38 WASHER, Rubber 8M0051404
39 BOLT, Steel 8M0058362
40 WASHER, Stainless Steel 879194340
41 NOT SOLD SEPARATE, GEAR ASSEMBLY, Throttle Only NSS
42 BOLT 8M0102279
43 COLLAR, Stainless Steel (6.3 mm) 895126004
44 OPENER, Throttle 898103144
45 WASHER, Stainless Steel 95392 1
46 DRUM, Throttle 895101401
47 BRACKET, Shift Lever 879147T85
48 KNOB 898103139
49 GROMMET 898103140
50 GEAR, Driven 895161
51 GEAR PLATE 898103141
52 BOLT 823042
53 GEAR , Drive 898103142
54 COLLAR, Steel 895162001
55 WASHER 879194338
56 NUT, Nylon 853722 7
57 SHIFT SHAFT ASSEMBLY 898103136
58 PIN 16085003
59 SPRING 813028003
60 COVER 879147T86
61 GROMMET 853709007
62 BOLT 898101953
63 ROD, Choke 855565002
64 BUSHING 851858005
65 PUMP ASSEMBLY, Priming 895124
66 NUT 895177
67 CLIP 898101964
68 HOSE, Rubber (300 mm) 851848007
69 LINK ROD 855562003
70 SNAP, Link Rod 855561010
71 CARBURETOR ASSEMBLY 853720T20
72 GASKET 898101981
73 DECAL, Start 859278004
74 CAP NUT 853722 14
75 DECAL, Wiring Diagram 898101978
76 CLAMP 17169
77 GROMMET 898101963
78 DECAL, Throttle Only 859278003
79 GROMMET 898101962
80 SWITCH ASSEMBLY, Neutral 8M0127937
81 SHIFT ROD 898103154
82 SWITCH ASSEMBLY, Start 853820A02
83 BOLT, (M6 x 12) 823042 7
84 CLAMP 95395 1
85 LANYARD ASSEMBLY 15920Q54
86 ROD, Throttle 898103145
- CONVERSION KIT, Tiller Handle, (Electric Remote Control to Electric Handle) 8M0051060
1 NOT SOLD SEPARATE, TILLER HANDLE ASSEMBLY NSS
2 TILLER HANDLE 8M0051374
3 PLUG, Cap 8M0051375
4 GRIP 8M0051377
5 SWITCH ASSEMBLY, Stop 8M0051405
6 GRIP, Rubber 8M0051376
7 DECAL, Tiller Handle Shift-Rabbit 896853008
8 SHAFT, Throttle 8M0051379
9 SCREW, (#10-16 x .500) 878608
10 WASHER, Stainless Steel 16080
11 COVER 8M0051388
12 PULLEY 8M0051386
13 HOUSING 8M0051387
14 CABLE, Throttle 8M0051391
15 CLIP 22740
16 SCREW 8M0051381
17 BRACKET, Aluminum 8M0051380
18 SCREW 8M0051381
19 BOLT 4000330
20 CLAMP, Friction - Throttle 8M0051382
21 SPRING, Stainless Steel 8M0051384
22 NUT 8M0051383
23 HANDLE, Carrying 8M0051392
24 COVER 8M0051400
25 BOLT, Stainless Steel 823042
26 BOLT, Stainless Steel 8M0051402
27 DECAL, Tiller Lock Release 892904006
28 SWITCH ASSEMBLY, Stop 892395A01
29 RETAINER, Brass 8M0032846
30 BUSHING, Plastic 8M0051403
31 COVER 8M0051393
32 BOLT 4000330
33 SCREW, Stainless Steel (M4 x 16) 8M0051394
34 LEVER, Tiller Lock - Stainless Steel 8M0051396
35 NUT 8M0051383
36 COLLAR, Stainless Steel 8M0051397
37 SPRING, Stainless Steel 8M0051398
38 WASHER, Rubber 8M0051404
39 BOLT, Steel 8M0058362
40 WASHER, Stainless Steel 879194340
41 NOT SOLD SEPARATE, GEAR ASSEMBLY, Throttle Only NSS
42 BOLT 8M0102279
43 COLLAR, Stainless Steel (6.3 mm) 895126004
44 OPENER, Throttle 898103144
45 WASHER, Stainless Steel 95392 1
46 DRUM, Throttle 895101401
47 BRACKET, Shift Lever 879147T85
48 KNOB 898103139
49 GROMMET 898103140
50 GEAR, Driven 895161
51 GEAR PLATE 898103141
52 BOLT 823042
53 GEAR , Drive 898103142
54 COLLAR, Steel 895162001
55 WASHER 879194338
56 NUT, Nylon 853722 7
57 SHIFT SHAFT ASSEMBLY 898103136
58 PIN 16085003
59 SPRING 813028003
60 COVER 879147T86
61 GROMMET 853709007
62 BOLT 898101953
63 ROD, Choke 855565002
64 BUSHING 851858005
65 PUMP ASSEMBLY, Priming 895124
66 NUT 895177
67 CLIP 898101964
68 HOSE, Rubber (300 mm) 851848007
69 LINK ROD 855562003
70 SNAP, Link Rod 855561010
71 CARBURETOR ASSEMBLY 853720T20
72 GASKET 898101981
73 DECAL, Start 859278004
74 CAP NUT 853722 14
75 DECAL, Wiring Diagram 898101978
76 CLAMP 17169
77 GROMMET 898101963
78 DECAL, Throttle Only 859278003
79 GROMMET 898101962
80 SWITCH ASSEMBLY, Neutral 8M0127937
81 SHIFT ROD 898103154
82 SWITCH ASSEMBLY, Start 853820A02
83 BOLT, (M6 x 12) 823042 7
84 CLAMP 95395 1
85 LANYARD ASSEMBLY 15920Q54
86 ROD, Throttle 898103145



Quick Overview

KNOB

SKU : 898103139

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061812260
