MERCURY 89984T 3 Impeller

Write a Review
$37.99
SKU:
89984T3
Schematic Object Key:
41

MERCURY 89984T 3 Impeller

$37.99

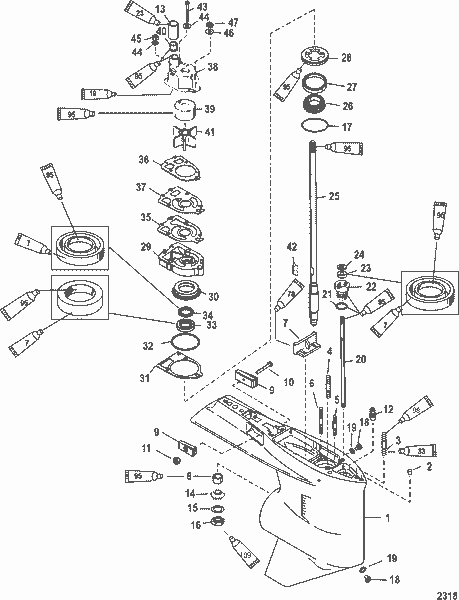

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 89984T 3 Impeller

Schematic Object Key : 41

Product Description : MERCURY 89984T 3 Impeller

Product Category : V-200 EFI (2.5L)/ 1B227000 & Up/Gear Housing(Driveshaft)(Standard\Counter Rotatio; Others/Impellers; Others/Instock

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
0 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) 9148T84
0 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) 9148T85
0 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) 9148T81
0 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) 9148T82
0 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) 9148T86
0 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) 9148T83
1 GEAR HOUSING ASSEMBLY, Basic 9148T93
2 PIN, Dowel - Without Hole (.375 x .625) 43044
3 STUD, (.437-14/.437-20 x 3.120) 78638 2
3 STUD, (.438 x 3.82 Inches) 8M0034464
4 STUD, (.437-14/.437-20 x 2.060) 57920 3
5 STUD, (.312-18/.324-24 x 3.380) 8M0034463
6 STUD, (.250-20/.250-28 x 3.125) 306671
7 FILLER BLOCK 8M0039169
8 BEARING ASSEMBLY, Roller 42647A 1
9 ANODE 826134Q
10 SCREW, (M6 x 40) 40003 33
11 NUT, (M6) Stainless Steel 40138 6
12 FITTING 881866
13 SLEEVE 29804T
14 NOT SOLD SEPARATE, Pinion Gear NSS
14 GEAR, Pinion 44101T 3
15 WASHER 92721
16 NUT, (.625-18) 35921
17 SHIM SET 42637A 1
18 SCREW KIT, (.375-16 x .250) Drain 79953Q04
19 SEAL 19183 3
19 SEAL 830749
20 SHIFT SHAFT 78902 2
21 O-RING, (.862 x .103) 25439
22 BUSHING ASSEMBLY 77631A 2
23 SEAL, Oil 816464 1
24 WASHER 77674
25 DRIVESHAFT 897624T
25 DRIVESHAFT, Long 897624T
25 DRIVESHAFT 897625T
25 DRIVESHAFT, X-Long 897625T
26 BEARING ASSEMBLY, Roller/Cup 8M0146566
27 NOT SOLD SEPARATE, Cup NSS
28 RETAINER 824519 1
29 BASE ASSEMBLY, Water Pump 8M0077147
30 NOT SOLD SEPARATE, Retainer NSS
31 GASKET 42631 1
32 O-RING, (2.175 x .175) 896523
33 SEAL, Oil 89238
34 SEAL, Oil 16977
35 GASKET, Lower 8M0090319
36 GASKET 858524
37 FACE PLATE 32435 1
38 BODY ASSEMBLY, Water Pump 96148T 1
39 INSERT 48752T
40 SEAL 38970
41 IMPELLER 89984T 3
42 KEY 8M0032834
43 SCREW, (#14-8 x 2.25) 96411
44 WASHER, (.281 x .500 x .060) Stainless Steel 29245
45 NUT, (.250-28) 826711 9
46 WASHER 36001
47 NUT 13436
- BODY ASSEMBLY, Water Pump 96148A 8
- SEAL KIT 89238A 2
- BEARING AND SEAL KIT (W/O Foward Bearing) 803033T 1
- BEARING AND SEAL KIT (W/O Foward Bearing) 803034T 1
- GASKET SET 8M0046715
- GEAR ASSEMBLY, Pinion/Forward 803615T 2
- GEAR ASSEMBLY, Pinion/Forward 803612T 2
- GEAR ASSEMBLY, Pinion/Forward 803616T 1
- GEAR ASSEMBLY, Pinion/Forward 803613T 1
0 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) 9148T84
0 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) 9148T85
0 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) 9148T81
0 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) 9148T82
0 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) 9148T86
0 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) 9148T83
1 GEAR HOUSING ASSEMBLY, Basic 9148T93
2 PIN, Dowel - Without Hole (.375 x .625) 43044
3 STUD, (.437-14/.437-20 x 3.120) 78638 2
3 STUD, (.438 x 3.82 Inches) 8M0034464
4 STUD, (.437-14/.437-20 x 2.060) 57920 3
5 STUD, (.312-18/.324-24 x 3.380) 8M0034463
6 STUD, (.250-20/.250-28 x 3.125) 306671
7 FILLER BLOCK 8M0039169
8 BEARING ASSEMBLY, Roller 42647A 1
9 ANODE 826134Q
10 SCREW, (M6 x 40) 40003 33
11 NUT, (M6) Stainless Steel 40138 6
12 FITTING 881866
13 SLEEVE 29804T
14 NOT SOLD SEPARATE, Pinion Gear NSS
14 GEAR, Pinion 44101T 3
15 WASHER 92721
16 NUT, (.625-18) 35921
17 SHIM SET 42637A 1
18 SCREW KIT, (.375-16 x .250) Drain 79953Q04
19 SEAL 19183 3
19 SEAL 830749
20 SHIFT SHAFT 78902 2
21 O-RING, (.862 x .103) 25439
22 BUSHING ASSEMBLY 77631A 2
23 SEAL, Oil 816464 1
24 WASHER 77674
25 DRIVESHAFT 897624T
25 DRIVESHAFT, Long 897624T
25 DRIVESHAFT 897625T
25 DRIVESHAFT, X-Long 897625T
26 BEARING ASSEMBLY, Roller/Cup 8M0146566
27 NOT SOLD SEPARATE, Cup NSS
28 RETAINER 824519 1
29 BASE ASSEMBLY, Water Pump 8M0077147
30 NOT SOLD SEPARATE, Retainer NSS
31 GASKET 42631 1
32 O-RING, (2.175 x .175) 896523
33 SEAL, Oil 89238
34 SEAL, Oil 16977
35 GASKET, Lower 8M0090319
36 GASKET 858524
37 FACE PLATE 32435 1
38 BODY ASSEMBLY, Water Pump 96148T 1
39 INSERT 48752T
40 SEAL 38970
41 IMPELLER 89984T 3
42 KEY 8M0032834
43 SCREW, (#14-8 x 2.25) 96411
44 WASHER, (.281 x .500 x .060) Stainless Steel 29245
45 NUT, (.250-28) 826711 9
46 WASHER 36001
47 NUT 13436
- BODY ASSEMBLY, Water Pump 96148A 8
- SEAL KIT 89238A 2
- BEARING AND SEAL KIT (W/O Foward Bearing) 803033T 1
- BEARING AND SEAL KIT (W/O Foward Bearing) 803034T 1
- GASKET SET 8M0046715
- GEAR ASSEMBLY, Pinion/Forward 803615T 2
- GEAR ASSEMBLY, Pinion/Forward 803612T 2
- GEAR ASSEMBLY, Pinion/Forward 803616T 1
- GEAR ASSEMBLY, Pinion/Forward 803613T 1



Quick Overview

IMPELLER Q=T 47

SKU : 89984T3

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force
