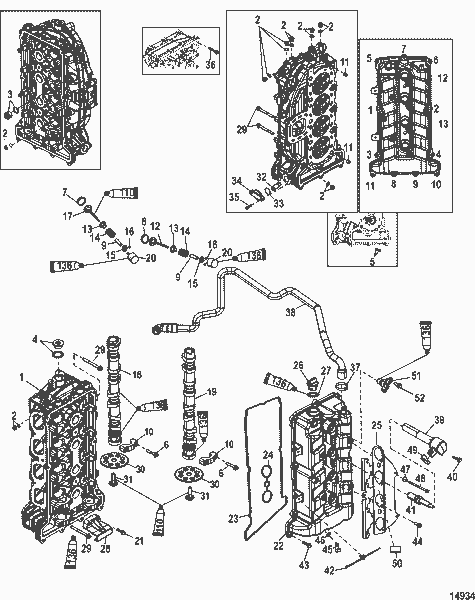

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 20
Product Description : MERCURY 899912011 Tappet
Product Category : 80 EFI (4-STROKE)/ 0P459572 THRU 2B094995/ Cylinder Head And Camshaft
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | CYLINDER HEAD ASSEMBLY | 8M0110154 |
2 | PLUG, (12 mm) | 889767 |
3 | PLUG, (18 mm) | 891953 |
4 | PLUG, (24 mm) | 896951 |
5 | PLUG, (10 mm) | 8M0087446 |
6 | BOLT, (M6 x 36 MM) | 892454035 |
7 | SEAT, Intake Valve | 880533 |
8 | SEAT, Exhaust Valve | 8M0089477 |
9 | GUIDE, Intake and Exhaust Valves | 880537 |
10 | NOT SOLD SEPARATE, CAP | NSS |
11 | PIN, Dowel (14 mm) | 880524 |
12 | VALVE, Exhaust | 898908 |
12 | VALVE, Exhaust | 898908 |
13 | SEAL, Valve | 896880 |
14 | SPRING, Intake and Exhaust Valve | 8M0011503 |
15 | RETAINER ASSEMBLY, Valves | 8M0908500 |
16 | KEY | 880543 |
17 | VALVE, Intake | 898907 |
17 | VALVE, Intake | 898907 |
18 | CAMSHAFT ASSEMBLY, Intake | 898397A04 |
18 | CAMSHAFT ASSEMBLY, Intake 75/80/90/100 | 898397A02 |
19 | CAMSHAFT ASSEMBLY, Exhaust | 898077A02 |
20 | TAPPET | 899912001 |
20 | TAPPET | 899912002 |
20 | TAPPET | 899912003 |
20 | TAPPET | 899912004 |
20 | TAPPET | 899912005 |
20 | TAPPET | 899912006 |
20 | TAPPET | 899912007 |
20 | TAPPET | 899912008 |
20 | TAPPET | 899912009 |
20 | TAPPET | 899912010 |
20 | TAPPET | 899912011 |
20 | TAPPET | 899912012 |
20 | TAPPET | 899912013 |
20 | TAPPET | 899912014 |
20 | TAPPET | 899912015 |
20 | TAPPET | 899912016 |
20 | TAPPET | 899912017 |
20 | TAPPET | 899912018 |
20 | TAPPET | 899912019 |
20 | TAPPET | 899912020 |
20 | TAPPET | 899912021 |
20 | TAPPET | 899912022 |
20 | TAPPET | 880548 23 |
20 | TAPPET | 899912024 |
20 | TAPPET | 880548 25 |
20 | TAPPET | 880548 26 |
20 | TAPPET | 899912027 |
20 | TAPPET | 880548 28 |
20 | TAPPET | 880548 29 |
20 | TAPPET | 880548 30 |
20 | TAPPET | 880548 31 |
20 | TAPPET | 880548 32 |
20 | TAPPET | 880548 33 |
20 | TAPPET | 880548 34 |
20 | TAPPET | 880548 35 |
21 | SCREW, (M6 x 30) | 892454030 |
22 | COVER ASSEMBLY, Cam | 880553T02 |
22 | COVER ASSEMBLY, Cam | 880553T02 |
22 | COVER ASSEMBLY, Cam | 880553T06 |
22 | COVER ASSEMBLY, Cam | 880553T06 |
22 | COVER ASSEMBLY, Cam | 880553A07 |
- | COVER, Cam | 880553T06 |
23 | SEAL | 892893 |
24 | SEAL | 892584 |
25 | PLATE ASSEMBLY, Coil | 8M0008370 |
25 | PLATE ASSEMBLY, Coil | 8M0008370 |
25 | PLATE ASSEMBLY, Coil | 8M0010552 |
25 | PLATE ASSEMBLY, Coil | 8M0010552 |
26 | PLUG ASSEMBLY, Oil | 859578A 1 |
27 | O-RING, (.921 x .139) | 90196 |
28 | GUIDE, Short | 880558 |
29 | SCREW, (M8 x 60) | 8M0103817 |
30 | SPROCKET, Cam Drive | 880550 |
31 | SCREW, (M12 x 40) | 8M0021532 |
32 | TENSIONER ASSEMBLY | 898463A01 |
33 | O-RING, Orange | 898836 |
34 | END CAP, Tensioner | 8M0064752 |
35 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
36 | SCREW, (M6 x 40 MM) Stainless Steel | 8M0103809 |
37 | CLAMP, (22.6 mm) | 888988019 |
38 | HOSE ASSEMBLY, Breather | 897673A01 |
39 | COIL ASSEMBLY | 880615T01 |
40 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
41 | SPARK PLUG, (NGK#LFR4A) | 8M0157328 |
42 | CLIP, Tie Strap | 899145 |
43 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
44 | SCREW, (M6 x 12 MM) Stainless Steel | 8M0103804 |
45 | J CLIP | 55098 |
46 | WASHER, (.250 External Star) | 93702 |
47 | WASHER | 8M0008232 |
48 | SCREW, (M6 x 90) | 8M0008535 |
48 | SCREW, (M6 x 90) | 8M0008535 |
48 | SCREW, (M6 x 85 MM) Stainless Steel | 885525 85 |
48 | SCREW, (M6 x 85 MM) Stainless Steel | 885525 85 |
49 | RING, Rubber, Anti-Rotation | 8M0119617 |
50 | DECAL, Coil Screw Torque | 8M0008936 |
51 | SENSOR ASSEMBLY | 8M0011987 |
52 | SCREW, (M6 x 16 MM) Stainless Steel | 8M0103805 |
- | GASKET SET, Powerhead | 897534A07 |
- | LONG BLOCK ASSEMBLY, 75/80/90/100 | 8M8033014 |
- | LONG BLOCK ASSEMBLY, 115 | 897148A08 |
1 | CYLINDER HEAD ASSEMBLY | 8M0110154 |
2 | PLUG, (12 mm) | 889767 |
3 | PLUG, (18 mm) | 891953 |
4 | PLUG, (24 mm) | 896951 |
5 | PLUG, (10 mm) | 8M0087446 |
6 | BOLT, (M6 x 36 MM) | 892454035 |
7 | SEAT, Intake Valve | 880533 |
8 | SEAT, Exhaust Valve | 8M0089477 |
9 | GUIDE, Intake and Exhaust Valves | 880537 |
10 | NOT SOLD SEPARATE, CAP | NSS |
11 | PIN, Dowel (14 mm) | 880524 |
12 | VALVE, Exhaust | 898908 |
12 | VALVE, Exhaust | 898908 |
13 | SEAL, Valve | 896880 |
14 | SPRING, Intake and Exhaust Valve | 8M0011503 |
15 | RETAINER ASSEMBLY, Valves | 8M0908500 |
16 | KEY | 880543 |
17 | VALVE, Intake | 898907 |
17 | VALVE, Intake | 898907 |
18 | CAMSHAFT ASSEMBLY, Intake | 898397A04 |
18 | CAMSHAFT ASSEMBLY, Intake 75/80/90/100 | 898397A02 |
19 | CAMSHAFT ASSEMBLY, Exhaust | 898077A02 |
20 | TAPPET | 899912001 |
20 | TAPPET | 899912002 |
20 | TAPPET | 899912003 |
20 | TAPPET | 899912004 |
20 | TAPPET | 899912005 |
20 | TAPPET | 899912006 |
20 | TAPPET | 899912007 |
20 | TAPPET | 899912008 |
20 | TAPPET | 899912009 |
20 | TAPPET | 899912010 |
20 | TAPPET | 899912011 |
20 | TAPPET | 899912012 |
20 | TAPPET | 899912013 |
20 | TAPPET | 899912014 |
20 | TAPPET | 899912015 |
20 | TAPPET | 899912016 |
20 | TAPPET | 899912017 |
20 | TAPPET | 899912018 |
20 | TAPPET | 899912019 |
20 | TAPPET | 899912020 |
20 | TAPPET | 899912021 |
20 | TAPPET | 899912022 |
20 | TAPPET | 880548 23 |
20 | TAPPET | 899912024 |
20 | TAPPET | 880548 25 |
20 | TAPPET | 880548 26 |
20 | TAPPET | 899912027 |
20 | TAPPET | 880548 28 |
20 | TAPPET | 880548 29 |
20 | TAPPET | 880548 30 |
20 | TAPPET | 880548 31 |
20 | TAPPET | 880548 32 |
20 | TAPPET | 880548 33 |
20 | TAPPET | 880548 34 |
20 | TAPPET | 880548 35 |
21 | SCREW, (M6 x 30) | 892454030 |
22 | COVER ASSEMBLY, Cam | 880553T02 |
22 | COVER ASSEMBLY, Cam | 880553T02 |
22 | COVER ASSEMBLY, Cam | 880553T06 |
22 | COVER ASSEMBLY, Cam | 880553T06 |
22 | COVER ASSEMBLY, Cam | 880553A07 |
- | COVER, Cam | 880553T06 |
23 | SEAL | 892893 |
24 | SEAL | 892584 |
25 | PLATE ASSEMBLY, Coil | 8M0008370 |
25 | PLATE ASSEMBLY, Coil | 8M0008370 |
25 | PLATE ASSEMBLY, Coil | 8M0010552 |
25 | PLATE ASSEMBLY, Coil | 8M0010552 |
26 | PLUG ASSEMBLY, Oil | 859578A 1 |
27 | O-RING, (.921 x .139) | 90196 |
28 | GUIDE, Short | 880558 |
29 | SCREW, (M8 x 60) | 8M0103817 |
30 | SPROCKET, Cam Drive | 880550 |
31 | SCREW, (M12 x 40) | 8M0021532 |
32 | TENSIONER ASSEMBLY | 898463A01 |
33 | O-RING, Orange | 898836 |
34 | END CAP, Tensioner | 8M0064752 |
35 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
36 | SCREW, (M6 x 40 MM) Stainless Steel | 8M0103809 |
37 | CLAMP, (22.6 mm) | 888988019 |
38 | HOSE ASSEMBLY, Breather | 897673A01 |
39 | COIL ASSEMBLY | 880615T01 |
40 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
41 | SPARK PLUG, (NGK#LFR4A) | 8M0157328 |
42 | CLIP, Tie Strap | 899145 |
43 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
44 | SCREW, (M6 x 12 MM) Stainless Steel | 8M0103804 |
45 | J CLIP | 55098 |
46 | WASHER, (.250 External Star) | 93702 |
47 | WASHER | 8M0008232 |
48 | SCREW, (M6 x 90) | 8M0008535 |
48 | SCREW, (M6 x 90) | 8M0008535 |
48 | SCREW, (M6 x 85 MM) Stainless Steel | 885525 85 |
48 | SCREW, (M6 x 85 MM) Stainless Steel | 885525 85 |
49 | RING, Rubber, Anti-Rotation | 8M0119617 |
50 | DECAL, Coil Screw Torque | 8M0008936 |
51 | SENSOR ASSEMBLY | 8M0011987 |
52 | SCREW, (M6 x 16 MM) Stainless Steel | 8M0103805 |
- | GASKET SET, Powerhead | 897534A07 |
- | LONG BLOCK ASSEMBLY, 75/80/90/100 | 8M8033014 |
- | LONG BLOCK ASSEMBLY, 115 | 897148A08 |
Quick Overview
TAPPET
SKU : 899912011
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061637313
