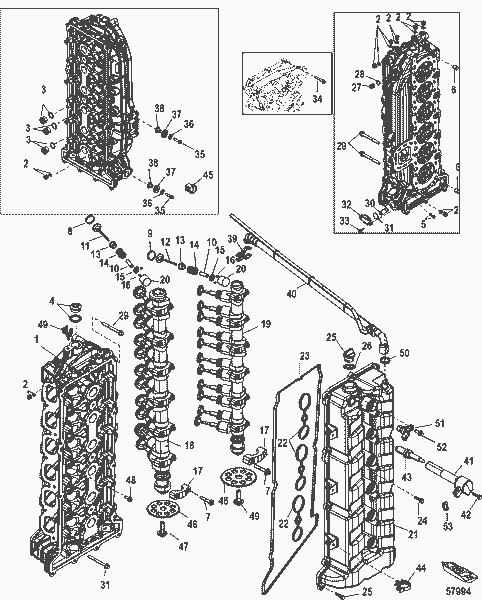

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 20
Product Description : MERCURY 899912023 Tappet, (3.458)
Product Category : 400 VERADO (4-Stroke)(6 CYL.)/ 2B141124 & Up/ Cylinder Head And Camshaft
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
- | CYLINDER HEAD ASSEMBLY | 8M0103281 |
1 | CYLINDER HEAD ASSEMBLY, Basic | 8M0103282 |
2 | PLUG, (12 MM) | 8M0087448 |
3 | PLUG, (18 MM) | 8M0087451 |
4 | PLUG, (24 MM) | 8M0087453 |
5 | PLUG, (10 MM) | 8M0087446 |
6 | PIN, Dowel (14 MM) | 880524 |
7 | BOLT, (M6 x 36) | 892454035 |
8 | SEAT, Intake Valve | 880533 |
9 | SEAT, Exhaust Seat | 8M0089477 |
10 | GUIDE, Intake Exhaust Valve | 880537 |
11 | VALVE, Intake | 898907 |
12 | VALVE, Exhaust | 8M0032471 |
13 | SEAL, Valve | 896880 |
14 | SPRING VALVE KIT, Intake and Exhaust | 8M0103092 |
15 | RETAINER ASSEMBLY, Valves | 8M0908500 |
16 | KEY | 880543 |
17 | NOT SOLD SEPARATE, CAP | NSS |
18 | CAMSHAFT, Intake | 8M0103283 |
19 | CAMSHAFT, Exhaust | 8M0103284 |
20 | TAPPET, (2.996) | 899912001 |
20 | TAPPET, (3.021) | 899912002 |
20 | TAPPET, (3.046) | 899912003 |
20 | TAPPET, (3.071) | 899912004 |
20 | TAPPET, (3.096) | 899912005 |
20 | TAPPET, (3.118) | 899912006 |
20 | TAPPET, (3.138) | 899912007 |
20 | TAPPET, (3.158) | 899912008 |
20 | TAPPET, (3.178) | 899912009 |
20 | TAPPET, (3.198) | 899912010 |
20 | TAPPET, (3.218) | 899912011 |
20 | TAPPET, (3.238) | 899912012 |
20 | TAPPET, (3.258) | 899912013 |
20 | TAPPET, (3.278) | 899912014 |
20 | TAPPET, (3.298) | 899912015 |
20 | TAPPET, (3.318) | 899912016 |
20 | TAPPET, (3.338) | 899912017 |
20 | TAPPET, (3.358) | 899912018 |
20 | TAPPET, (3.378) | 899912019 |
20 | TAPPET, (3.398) | 899912020 |
20 | TAPPET, (3.418) | 899912021 |
20 | TAPPET, (3.438) | 899912022 |
20 | TAPPET, (3.458) | 899912023 |
20 | TAPPET, (3.478) | 899912024 |
20 | TAPPET, (3.498) | 899912025 |
20 | TAPPET, (3.518) | 899912026 |
20 | TAPPET, (3.538) | 899912027 |
20 | TAPPET, (3.558) | 899912028 |
20 | TAPPET, (3.578) | 899912029 |
20 | TAPPET, (3.598) | 899912030 |
20 | TAPPET, (3.621) | 899912031 |
20 | TAPPET, (3.646) | 899912032 |
20 | TAPPET, (3.671) | 899912033 |
20 | TAPPET, (3.696) | 899912034 |
20 | TAPPET, (3.721) | 899912035 |
21 | COVER ASSEMBLY, Cam | 892596T04 |
22 | SEAL | 892584 |
23 | SEAL | 8M6000959 |
24 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
25 | PLUG ASSEMBLY, Oil | 859578A 1 |
26 | O-RING, (.921 x .139) | 90196 |
27 | PLUG , (10MM) | 8M0087447 |
28 | O-RING, (1.78 mm x .08 mm) | 896699 |
29 | SCREW, (M8 x 60) | 8M0103817 |
30 | TENSIONER ASSEMBLY | 898463A01 |
31 | O-RING, Brown | 898836 |
32 | END CAP - CAM TENSIONER , Tensioner | 8M0064752 |
33 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
34 | SCREW, (M6 x 40 MM) Stainless Steel | 8M0103809 |
35 | SCREW, (M8 x 35 MM) | 8M0103814 |
36 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 817274 |
37 | GROMMET | 833155 |
38 | BUSHING | 850234 1 |
39 | CLIP | 892833 |
40 | HOSE ASSEMBLY, Breather | 889591A05 |
41 | COIL ASSEMBLY | 880615T01 |
42 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
43 | SPARK PLUG, NGK-ILFR6GE | 889246Q39 |
44 | CLIP, (.625) | 858954 |
45 | TIE STRAP, (11.750 Inches) | 850181 |
46 | SPROCKET, Cam Drive | 880550 |
47 | SCREW, (M12 x 40 MM) | 8M0021532 |
48 | SCREW, (M6 x 12 MM) Stainless Steel | 8M0103804 |
49 | CLIP | 889746001 |
50 | CLAMP, (22.6 mm) | 888988019 |
51 | SENSOR | 8M0011987 |
52 | SCREW, (M6 x 16 MM) Stainless Steel | 8M0103805 |
53 | GROMMET, Rubber | 8M0119617 |
- | LONG BLOCK ASSEMBLY | 896966A06 |
- | CYLINDER HEAD ASSEMBLY | 8M0103281 |
1 | CYLINDER HEAD ASSEMBLY, Basic | 8M0103282 |
2 | PLUG, (12 MM) | 8M0087448 |
3 | PLUG, (18 MM) | 8M0087451 |
4 | PLUG, (24 MM) | 8M0087453 |
5 | PLUG, (10 MM) | 8M0087446 |
6 | PIN, Dowel (14 MM) | 880524 |
7 | BOLT, (M6 x 36) | 892454035 |
8 | SEAT, Intake Valve | 880533 |
9 | SEAT, Exhaust Seat | 8M0089477 |
10 | GUIDE, Intake Exhaust Valve | 880537 |
11 | VALVE, Intake | 898907 |
12 | VALVE, Exhaust | 8M0032471 |
13 | SEAL, Valve | 896880 |
14 | SPRING VALVE KIT, Intake and Exhaust | 8M0103092 |
15 | RETAINER ASSEMBLY, Valves | 8M0908500 |
16 | KEY | 880543 |
17 | NOT SOLD SEPARATE, CAP | NSS |
18 | CAMSHAFT, Intake | 8M0103283 |
19 | CAMSHAFT, Exhaust | 8M0103284 |
20 | TAPPET, (2.996) | 899912001 |
20 | TAPPET, (3.021) | 899912002 |
20 | TAPPET, (3.046) | 899912003 |
20 | TAPPET, (3.071) | 899912004 |
20 | TAPPET, (3.096) | 899912005 |
20 | TAPPET, (3.118) | 899912006 |
20 | TAPPET, (3.138) | 899912007 |
20 | TAPPET, (3.158) | 899912008 |
20 | TAPPET, (3.178) | 899912009 |
20 | TAPPET, (3.198) | 899912010 |
20 | TAPPET, (3.218) | 899912011 |
20 | TAPPET, (3.238) | 899912012 |
20 | TAPPET, (3.258) | 899912013 |
20 | TAPPET, (3.278) | 899912014 |
20 | TAPPET, (3.298) | 899912015 |
20 | TAPPET, (3.318) | 899912016 |
20 | TAPPET, (3.338) | 899912017 |
20 | TAPPET, (3.358) | 899912018 |
20 | TAPPET, (3.378) | 899912019 |
20 | TAPPET, (3.398) | 899912020 |
20 | TAPPET, (3.418) | 899912021 |
20 | TAPPET, (3.438) | 899912022 |
20 | TAPPET, (3.458) | 899912023 |
20 | TAPPET, (3.478) | 899912024 |
20 | TAPPET, (3.498) | 899912025 |
20 | TAPPET, (3.518) | 899912026 |
20 | TAPPET, (3.538) | 899912027 |
20 | TAPPET, (3.558) | 899912028 |
20 | TAPPET, (3.578) | 899912029 |
20 | TAPPET, (3.598) | 899912030 |
20 | TAPPET, (3.621) | 899912031 |
20 | TAPPET, (3.646) | 899912032 |
20 | TAPPET, (3.671) | 899912033 |
20 | TAPPET, (3.696) | 899912034 |
20 | TAPPET, (3.721) | 899912035 |
21 | COVER ASSEMBLY, Cam | 892596T04 |
22 | SEAL | 892584 |
23 | SEAL | 8M6000959 |
24 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
25 | PLUG ASSEMBLY, Oil | 859578A 1 |
26 | O-RING, (.921 x .139) | 90196 |
27 | PLUG , (10MM) | 8M0087447 |
28 | O-RING, (1.78 mm x .08 mm) | 896699 |
29 | SCREW, (M8 x 60) | 8M0103817 |
30 | TENSIONER ASSEMBLY | 898463A01 |
31 | O-RING, Brown | 898836 |
32 | END CAP - CAM TENSIONER , Tensioner | 8M0064752 |
33 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
34 | SCREW, (M6 x 40 MM) Stainless Steel | 8M0103809 |
35 | SCREW, (M8 x 35 MM) | 8M0103814 |
36 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 817274 |
37 | GROMMET | 833155 |
38 | BUSHING | 850234 1 |
39 | CLIP | 892833 |
40 | HOSE ASSEMBLY, Breather | 889591A05 |
41 | COIL ASSEMBLY | 880615T01 |
42 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
43 | SPARK PLUG, NGK-ILFR6GE | 889246Q39 |
44 | CLIP, (.625) | 858954 |
45 | TIE STRAP, (11.750 Inches) | 850181 |
46 | SPROCKET, Cam Drive | 880550 |
47 | SCREW, (M12 x 40 MM) | 8M0021532 |
48 | SCREW, (M6 x 12 MM) Stainless Steel | 8M0103804 |
49 | CLIP | 889746001 |
50 | CLAMP, (22.6 mm) | 888988019 |
51 | SENSOR | 8M0011987 |
52 | SCREW, (M6 x 16 MM) Stainless Steel | 8M0103805 |
53 | GROMMET, Rubber | 8M0119617 |
- | LONG BLOCK ASSEMBLY | 896966A06 |
Quick Overview
TAPPET
SKU : 899912023
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061637436
