MERCURY 8M0020854 Link

Write a Review
$13.10
SKU:
8M0020854
Schematic Object Key:
18

MERCURY 8M0020854 Link

$13.10

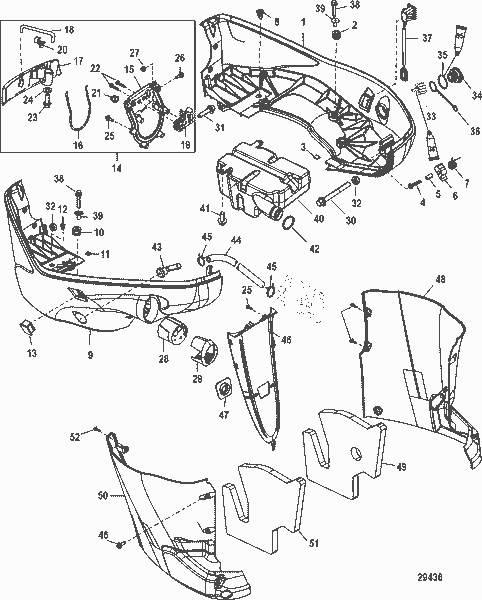

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 8M0020854 Link

Schematic Object Key : 18

Product Description : MERCURY 8M0020854 Link

Product Category : 135 VERADO (4-STROKE)(4 CYL.)/ 1B517159 & Up/ Rear Cowl

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- PAN ASSEMBLY, Port and Starboard 895846A08
- PAN ASSEMBLY, Port and Starboard 895846T07
1 PAN ASSEMBLY, Port 895846A04
1 NOT SOLD SEPARATE, Pan Assembly-Port NSS
2 GROMMET 896671
3 SEAL, Front 8M0043277
4 SCREW, (M4 x 20 mm) 888950020
5 SPACER 898408
6 PAWL 898354
7 SPRING 898353
8 DRAIN, Cowl 888819002
9 PAN ASSEMBLY, Starboard 895847A05
9 NOT SOLD SEPARATE, Pan Assembly-Starboard NSS
10 GROMMET 896671
11 SEAL, Back 8M0043278
12 DRAIN, Cowl 888819002
13 PLUG 897203
14 PANEL AND LATCH ASSEMBLY 879148T72
15 PANEL, Access 8M0020855
16 SEAL 8M0026713
17 HANDLE 8M0034940
18 LINK 8M0020854
19 LATCH ASSEMBLY, Rear 8M0041031
20 RETAINER 8M0006054
21 SEAL 8M0006060
22 SCREW, (M6 x 25 MM) Stainless Steel 8M0103807
23 SCREW, (M6 x 16 MM) Stainless Steel 8M0103805
24 WASHER, (.255 x .620 x .030) Stainless Steel 69056
25 SHOULDER SCREW, (M6) 892073002
26 SCREW, (M6) 8M0005773
27 NUT, (M6) Stainless Steel 40138 6
28 GROMMET 897169
29 ADAPTOR 8M0043519
30 SCREW, (M6 x 55) 897657055
31 SCREW, (M6 x 25 MM) 897657025
32 NUT, (M6) Stainless Steel 40138 6
33 FITTING ASSEMBLY, Flush 885361A01
34 PLUG 888958001
35 O-RING 888957
36 TETHER 889823001
37 SWITCH, Trim 8M0042300
38 SCREW, (M6) 897964
39 BUSHING 8M8023048
40 PLENUM KIT, Exhaust 896925A01
41 SHOULDER SCREW, (M6) 892073002
42 O-RING, (.924 x .103) 889828
43 FITTING 895797001
44 HOSE, (57.00 Inches Bulk), Cut to 21 Inches 8M0108355
45 CLAMP, (8.00 Inches) 895851
46 COVER ASSEMBLY, Rear 896618A02
47 BOOT, Idle Exhaust 896924
- CHAP ASSEMBLY, Starboard and Port 897593T02
48 CHAP ASSEMBLY, Port 896054T01
49 SOUND BLANKET, Starboard 897204
50 CHAP ASSEMBLY, Starboard 896055T01
51 SOUND BLANKET, Port 897205
52 SHOULDER SCREW, (M6) 892073002
- PAN ASSEMBLY, Port and Starboard 895846A08
- PAN ASSEMBLY, Port and Starboard 895846T07
1 PAN ASSEMBLY, Port 895846A04
1 NOT SOLD SEPARATE, Pan Assembly-Port NSS
2 GROMMET 896671
3 SEAL, Front 8M0043277
4 SCREW, (M4 x 20 mm) 888950020
5 SPACER 898408
6 PAWL 898354
7 SPRING 898353
8 DRAIN, Cowl 888819002
9 PAN ASSEMBLY, Starboard 895847A05
9 NOT SOLD SEPARATE, Pan Assembly-Starboard NSS
10 GROMMET 896671
11 SEAL, Back 8M0043278
12 DRAIN, Cowl 888819002
13 PLUG 897203
14 PANEL AND LATCH ASSEMBLY 879148T72
15 PANEL, Access 8M0020855
16 SEAL 8M0026713
17 HANDLE 8M0034940
18 LINK 8M0020854
19 LATCH ASSEMBLY, Rear 8M0041031
20 RETAINER 8M0006054
21 SEAL 8M0006060
22 SCREW, (M6 x 25 MM) Stainless Steel 8M0103807
23 SCREW, (M6 x 16 MM) Stainless Steel 8M0103805
24 WASHER, (.255 x .620 x .030) Stainless Steel 69056
25 SHOULDER SCREW, (M6) 892073002
26 SCREW, (M6) 8M0005773
27 NUT, (M6) Stainless Steel 40138 6
28 GROMMET 897169
29 ADAPTOR 8M0043519
30 SCREW, (M6 x 55) 897657055
31 SCREW, (M6 x 25 MM) 897657025
32 NUT, (M6) Stainless Steel 40138 6
33 FITTING ASSEMBLY, Flush 885361A01
34 PLUG 888958001
35 O-RING 888957
36 TETHER 889823001
37 SWITCH, Trim 8M0042300
38 SCREW, (M6) 897964
39 BUSHING 8M8023048
40 PLENUM KIT, Exhaust 896925A01
41 SHOULDER SCREW, (M6) 892073002
42 O-RING, (.924 x .103) 889828
43 FITTING 895797001
44 HOSE, (57.00 Inches Bulk), Cut to 21 Inches 8M0108355
45 CLAMP, (8.00 Inches) 895851
46 COVER ASSEMBLY, Rear 896618A02
47 BOOT, Idle Exhaust 896924
- CHAP ASSEMBLY, Starboard and Port 897593T02
48 CHAP ASSEMBLY, Port 896054T01
49 SOUND BLANKET, Starboard 897204
50 CHAP ASSEMBLY, Starboard 896055T01
51 SOUND BLANKET, Port 897205
52 SHOULDER SCREW, (M6) 892073002



Quick Overview

LINK

SKU : 8M0020854

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061794337
