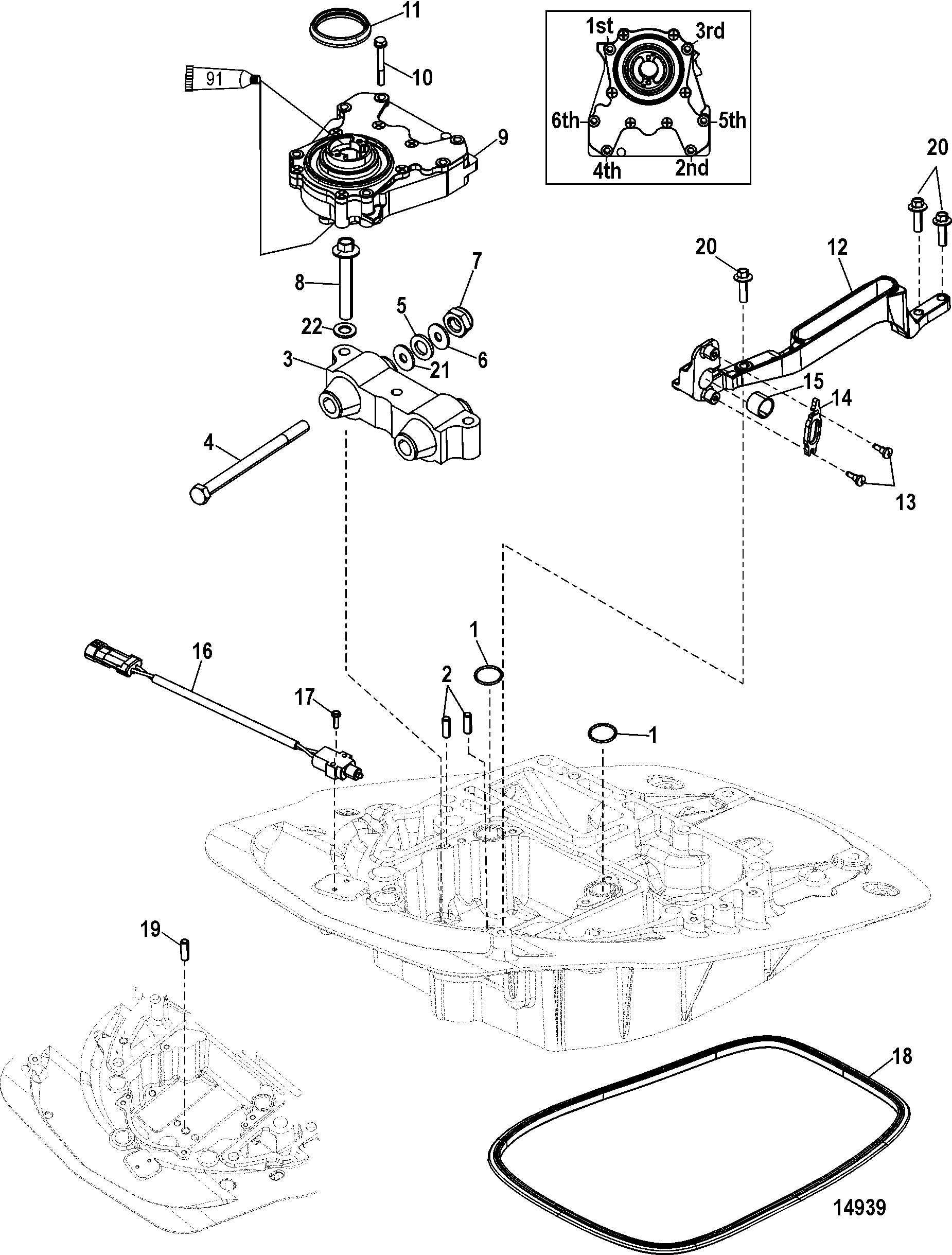

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 8
Product Description : MERCURY 8M0036722 Screw, (M8 X 50)
Product Category : 75 EFI (4-STROKE)/ 1B366823 THRU 2B094995/ Oil Pump
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | O-RING | 62705001 |
2 | PIN, Dowel | 858580001 |
3 | MOUNT | 881900T03 |
3 | MOUNT | 881900T03 |
3 | MOUNT | 881900T03 |
4 | SCREW, (M12 x 175) | 898487 |
5 | WASHER, (.9375 x 1.750 x .172) | 32834 |
6 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel | 28421 |
7 | NUT, (M12) | 896963 |
8 | SCREW, (M8 x 50) | 8M0036722 |
9 | PUMP ASSEMBLY, Oil | 897206T03 |
9 | PUMP ASSEMBLY, Oil | 897206T03 |
10 | SCREW, (M6 x 50) | 824832 11 |
11 | SEAL, Oil | 8M0036343 |
12 | BRACKET ASSEMBLY, Shift Link | 897961T01 |
13 | DRIVE SCREW | 42975 |
14 | LATCH | 98889 |
15 | CUP, Barrel Retainer, Small | 824015 |
16 | SWITCH | 8M0052939 |
17 | SCREW, (M3 x 20) | 880750 20 |
18 | SEAL | 8M0043168 |
19 | PIN, Dowel | 23784 |
20 | SCREW, (M6 x 20) | 821300 20 |
21 | WASHER, (.940 x 1.50 x 0.65) Stainless Steel | 8M0001538 |
22 | WASHER | 40023 17 |
- | GASKET SET, Powerhead | 897534A07 |
- | LONG BLOCK ASSEMBLY, 75/80/90/100 | 8M8033014 |
- | LONG BLOCK ASSEMBLY, 115 | 897148A08 |
1 | O-RING | 62705001 |
2 | PIN, Dowel | 858580001 |
3 | MOUNT | 881900T03 |
3 | MOUNT | 881900T03 |
3 | MOUNT | 881900T03 |
4 | SCREW, (M12 x 175) | 898487 |
5 | WASHER, (.9375 x 1.750 x .172) | 32834 |
6 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel | 28421 |
7 | NUT, (M12) | 896963 |
8 | SCREW, (M8 x 50) | 8M0036722 |
9 | PUMP ASSEMBLY, Oil | 897206T03 |
9 | PUMP ASSEMBLY, Oil | 897206T03 |
10 | SCREW, (M6 x 50) | 824832 11 |
11 | SEAL, Oil | 8M0036343 |
12 | BRACKET ASSEMBLY, Shift Link | 897961T01 |
13 | DRIVE SCREW | 42975 |
14 | LATCH | 98889 |
15 | CUP, Barrel Retainer, Small | 824015 |
16 | SWITCH | 8M0052939 |
17 | SCREW, (M3 x 20) | 880750 20 |
18 | SEAL | 8M0043168 |
19 | PIN, Dowel | 23784 |
20 | SCREW, (M6 x 20) | 821300 20 |
21 | WASHER, (.940 x 1.50 x 0.65) Stainless Steel | 8M0001538 |
22 | WASHER | 40023 17 |
- | GASKET SET, Powerhead | 897534A07 |
- | LONG BLOCK ASSEMBLY, 75/80/90/100 | 8M8033014 |
- | LONG BLOCK ASSEMBLY, 115 | 897148A08 |
Quick Overview
SCREW @2 10
SKU : 8M0036722
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061726888
