MERCURY 8M0041013 Screw, M8X1.25 Hex Hd

Write a Review
$5.50
SKU:
8M0041013
Schematic Object Key:
22

MERCURY 8M0041013 Screw, M8X1.25 Hex Hd

$5.50

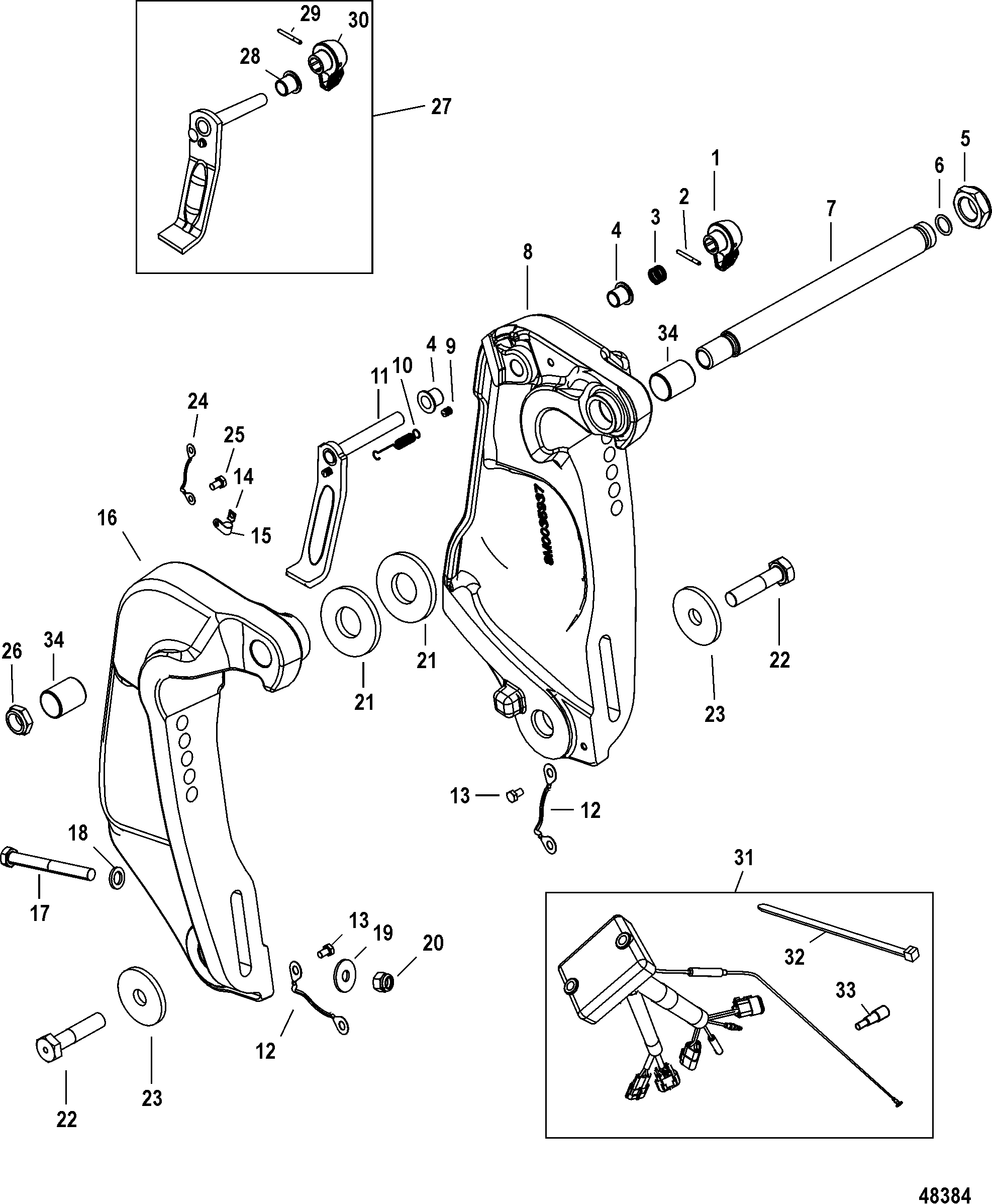

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 8M0041013 Screw, M8X1.25 Hex Hd

Schematic Object Key : 22

Product Description : MERCURY 8M0041013 Screw, M8X1.25 Hex Hd

Product Category : 150 (4-Stroke)/ 1B905505 & Up/ Transom Bracket

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 KNOB 8M0007470
2 PIN , (.125 x 30 mm) 8M0021914
3 SPRING, Compression 830900
4 BEARING, Tilt Lock .05 inch ID FLG 8M0054598
5 NUT, (1.00-14) Nylon Insert 826135
6 O-RING, (.612 x .103) 45711
7 TILT TUBE 826125A 1
8 TRANSOM BRACKET, Port, Painted 8M0057721
9 PIN 893709
10 SPRING, Tension 830899
11 LEVER ASSY, Tilt Lock 8M0088801
12 CABLE ASSEMBLY 8M0062746
13 SCREW, (M6 x 8) 40003 25
14 C-WASHER 8M0084612
15 CLAMP, Cable .375 8M0051768
16 BRACKET, Transom STBD, paint 8M0061365
17 SCREW, (.500-20 x 5.00 HX HD) 8M0071543
18 WASHER, (.530 x .870 x .105) Stainless Steel 54012
19 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel 28421
20 NUT, (.500-20) 826711 17
21 WASHER, Thrust 8M0057591
22 SCREW, M8X1.25 HEX HD 8M0041013
23 WASHER, Flat 31.69 OD X 9.01 ID X 3.048 THK 8M0054606
24 CABLE ASSEMBLY 8M0050046
25 SCREW, (M6 x 10) Stainless Steel 40106 10
26 NUT, (.875-14) 826164
27 TILT LOCK LEVER KIT-F150, (L) (XL) (CXL) 8M0072610
28 BEARING, Tilt Lock .05 inch ID FLG 8M0054598
29 PIN , (.125 x 30 mm) 8M0021914
30 KNOB 8M0007470
31 TRIM LIMIT MODULE 8M0059532
32 TIE STRAP, (8.00 Inches) 816311T
33 PLUG, Male 13541
34 BEARING, Tilt pin 26.38IDX42LG 8M0059091
1 KNOB 8M0007470
2 PIN , (.125 x 30 mm) 8M0021914
3 SPRING, Compression 830900
4 BEARING, Tilt Lock .05 inch ID FLG 8M0054598
5 NUT, (1.00-14) Nylon Insert 826135
6 O-RING, (.612 x .103) 45711
7 TILT TUBE 826125A 1
8 TRANSOM BRACKET, Port, Painted 8M0057721
9 PIN 893709
10 SPRING, Tension 830899
11 LEVER ASSY, Tilt Lock 8M0088801
12 CABLE ASSEMBLY 8M0062746
13 SCREW, (M6 x 8) 40003 25
14 C-WASHER 8M0084612
15 CLAMP, Cable .375 8M0051768
16 BRACKET, Transom STBD, paint 8M0061365
17 SCREW, (.500-20 x 5.00 HX HD) 8M0071543
18 WASHER, (.530 x .870 x .105) Stainless Steel 54012
19 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel 28421
20 NUT, (.500-20) 826711 17
21 WASHER, Thrust 8M0057591
22 SCREW, M8X1.25 HEX HD 8M0041013
23 WASHER, Flat 31.69 OD X 9.01 ID X 3.048 THK 8M0054606
24 CABLE ASSEMBLY 8M0050046
25 SCREW, (M6 x 10) Stainless Steel 40106 10
26 NUT, (.875-14) 826164
27 TILT LOCK LEVER KIT-F150, (L) (XL) (CXL) 8M0072610
28 BEARING, Tilt Lock .05 inch ID FLG 8M0054598
29 PIN , (.125 x 30 mm) 8M0021914
30 KNOB 8M0007470
31 TRIM LIMIT MODULE 8M0059532
32 TIE STRAP, (8.00 Inches) 816311T
33 PLUG, Male 13541
34 BEARING, Tilt pin 26.38IDX42LG 8M0059091



Quick Overview

SCREW @5 10

SKU : 8M0041013

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061884410
