MERCURY 8M0045380 Screw, (M8 X 50)

Write a Review
$6.60
SKU:
8M0045380
Schematic Object Key:
61

MERCURY 8M0045380 Screw, (M8 X 50)

$6.60

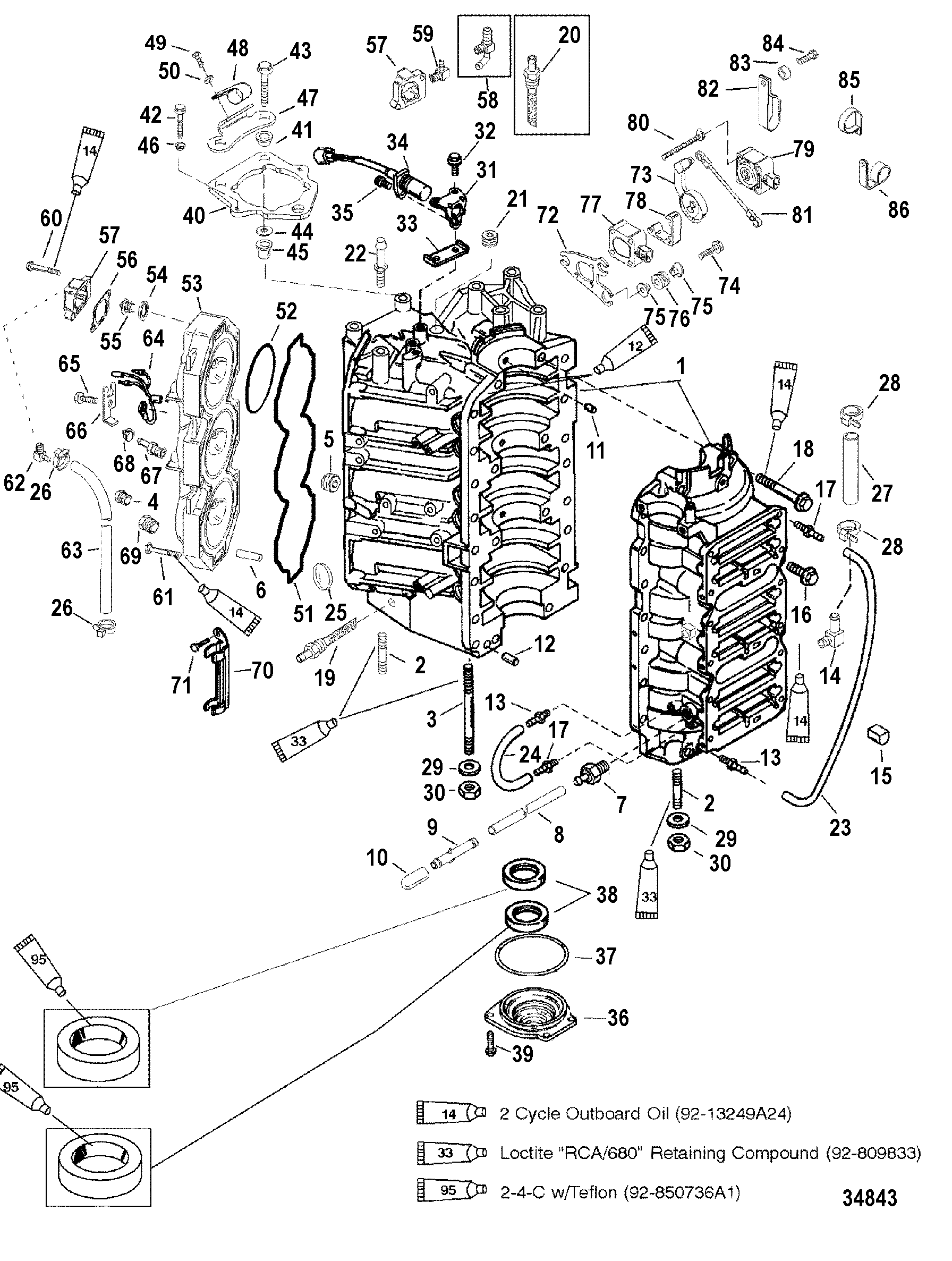

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 8M0045380 Screw, (M8 X 50)

Schematic Object Key : 61

Product Description : MERCURY 8M0045380 Screw, (M8 X 50)

Product Category : 225 (DFI)/ 0G760300 THRU 0G960499/ Cylinder Block And End Cap

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 CYLINDER BLOCK 9811A44
1 CYLINDER BLOCK 9811A43
2 STUD, (M10 x 1.5 x 64) 90350 9
3 STUD, (M10 x 1.5 x 155) 815443 1
4 PLUG, Pipe (.125-27) Brass 32802 2
5 FITTING, Pipe - Brass (.750-14) 42861 1
6 DEFLECTOR, Water 8248577
7 CHECK VALVE 8781051
8 HOSE, (57.00 Inches Bulk) (6 IN.) 8M0108355
9 CONNECTOR 822769
10 NOT SOLD SEPARATE, Plug NSS
11 PIN 8M0036405
12 PIN, Dowel - Without Hole (.375 x .625) 43044
13 CHECK VALVE 42658 5
14 ELBOW 856842
15 PLUG 850309001
16 SCREW, (M8 x 35) 818934 35
17 CHECK VALVE 815923 4
18 SCREW, (M10 x 80) 824461 80
19 STRAINER 834808 3
20 STRAINER 834808 3
21 PLUG, Pipe (.375-18) Brass 32803
22 PIN 8215832
23 TUBING, (20.00 Feet Bulk) (22-1/2 IN.) 892024122
24 TUBING, (20.00 Feet Bulk) (3-3/4 IN.) 892024122
25 NOT SOLD SEPARATE, Plug-Serial Number NSS
26 TIE STRAP, (8.00 Inches) 816311T
27 HOSE, To Fuel Pump 858714
28 TIE STRAP, (8.00 Inches) 816311T
29 WASHER, (.406 x .750 x .105) Stainless Steel 856774
30 NUT, (M10) 4013610
31 BRACKET 821225 1
32 SCREW, (M6 x 16) 821300 16
33 BRACKET, Guide 822486
34 ENCODER 828558 1
35 SCREW, (M5 x 10) 821045 10
36 END CAP ASSEMBLY 9787A 4
37 O-RING, (3.237 x .103) 62700
38 SEAL, Oil 8308981
39 SCREW, (M6 x 20) 821300 20
40 PLATE ASSEMBLY 855671A 2
41 MOUNT 855729
42 SCREW, (M10 x 45) 821301 45
43 SCREW (M10 X 75) 821301 75
44 WASHER 855725
45 SPACER 855726
46 SPACER 855727
47 BRACKET 856816
48 CLAMP 856878 1
49 SCREW, (M6 x 10) Stainless Steel 40106 10
50 WASHER, (.255 x .620 x .030) Stainless Steel 69056
51 SEAL 818574
52 O-RING 818573
53 CYLINDER HEAD 850275A 1
53 CYLINDER HEAD 850276A 1
53 CYLINDER HEAD 850275A 2
53 CYLINDER HEAD 850276A 4
54 SEAL 854639001
55 No Longer Available, Thermostat NLA
56 GASKET 850318 1
57 THERMOSTAT COVER 8503173
58 FITTING 853339 3
59 FITTING 853339 4
60 SCREW, (M6 x 25) 821300 25
61 SCREW, (M8 x 50) 8M0045380
62 FITTING 853339 4
63 TUBING, To Adaptor Plate 814312 47
63 TUBING, To Adaptor Plate 814312 47
64 SENSOR ASSEMBLY, Temperature 13536A12
64 SENSOR ASSEMBLY, Temperature 13536A14
65 SCREW, (M8 x 12) 818934 12
66 RETAINER 13715 1
67 FITTING, To Pressor Sensor 859092
68 TIE STRAP, (4.00 Inches) 56762
69 PLUG, Pipe (.375-18) Brass 32803
70 CLAMP 826624 1
71 SCREW, (M6 x 12) 821300 12
72 BRACKET 8544862
73 LEVER, TPI 850290
74 SCREW, (M6 x 25) 821300 25
75 BUSHING 831870 1
76 GROMMET 834985
77 INDICATOR, Throttle Position 83295221
78 SPACER 850882
79 INDICATOR, Throttle Position 8M6005165
80 SCREW, (M5 x 65) Stainless Steel 40011117
81 LINK, Throttle 19385 40
82 CLAMP 856834 1
82 CLAMP 859172
83 SPACER 824921
84 SCREW, (M8 x 20) 818934 20
85 CLAMP 858951A01
86 CLAMP 856831 1
- POWERHEAD ASSEMBLY 854198A99
- POWERHEAD ASSEMBLY 854199A99
- GASKET SET 832934A98
1 CYLINDER BLOCK 9811A44
1 CYLINDER BLOCK 9811A43
2 STUD, (M10 x 1.5 x 64) 90350 9
3 STUD, (M10 x 1.5 x 155) 815443 1
4 PLUG, Pipe (.125-27) Brass 32802 2
5 FITTING, Pipe - Brass (.750-14) 42861 1
6 DEFLECTOR, Water 8248577
7 CHECK VALVE 8781051
8 HOSE, (57.00 Inches Bulk) (6 IN.) 8M0108355
9 CONNECTOR 822769
10 NOT SOLD SEPARATE, Plug NSS
11 PIN 8M0036405
12 PIN, Dowel - Without Hole (.375 x .625) 43044
13 CHECK VALVE 42658 5
14 ELBOW 856842
15 PLUG 850309001
16 SCREW, (M8 x 35) 818934 35
17 CHECK VALVE 815923 4
18 SCREW, (M10 x 80) 824461 80
19 STRAINER 834808 3
20 STRAINER 834808 3
21 PLUG, Pipe (.375-18) Brass 32803
22 PIN 8215832
23 TUBING, (20.00 Feet Bulk) (22-1/2 IN.) 892024122
24 TUBING, (20.00 Feet Bulk) (3-3/4 IN.) 892024122
25 NOT SOLD SEPARATE, Plug-Serial Number NSS
26 TIE STRAP, (8.00 Inches) 816311T
27 HOSE, To Fuel Pump 858714
28 TIE STRAP, (8.00 Inches) 816311T
29 WASHER, (.406 x .750 x .105) Stainless Steel 856774
30 NUT, (M10) 4013610
31 BRACKET 821225 1
32 SCREW, (M6 x 16) 821300 16
33 BRACKET, Guide 822486
34 ENCODER 828558 1
35 SCREW, (M5 x 10) 821045 10
36 END CAP ASSEMBLY 9787A 4
37 O-RING, (3.237 x .103) 62700
38 SEAL, Oil 8308981
39 SCREW, (M6 x 20) 821300 20
40 PLATE ASSEMBLY 855671A 2
41 MOUNT 855729
42 SCREW, (M10 x 45) 821301 45
43 SCREW (M10 X 75) 821301 75
44 WASHER 855725
45 SPACER 855726
46 SPACER 855727
47 BRACKET 856816
48 CLAMP 856878 1
49 SCREW, (M6 x 10) Stainless Steel 40106 10
50 WASHER, (.255 x .620 x .030) Stainless Steel 69056
51 SEAL 818574
52 O-RING 818573
53 CYLINDER HEAD 850275A 1
53 CYLINDER HEAD 850276A 1
53 CYLINDER HEAD 850275A 2
53 CYLINDER HEAD 850276A 4
54 SEAL 854639001
55 No Longer Available, Thermostat NLA
56 GASKET 850318 1
57 THERMOSTAT COVER 8503173
58 FITTING 853339 3
59 FITTING 853339 4
60 SCREW, (M6 x 25) 821300 25
61 SCREW, (M8 x 50) 8M0045380
62 FITTING 853339 4
63 TUBING, To Adaptor Plate 814312 47
63 TUBING, To Adaptor Plate 814312 47
64 SENSOR ASSEMBLY, Temperature 13536A12
64 SENSOR ASSEMBLY, Temperature 13536A14
65 SCREW, (M8 x 12) 818934 12
66 RETAINER 13715 1
67 FITTING, To Pressor Sensor 859092
68 TIE STRAP, (4.00 Inches) 56762
69 PLUG, Pipe (.375-18) Brass 32803
70 CLAMP 826624 1
71 SCREW, (M6 x 12) 821300 12
72 BRACKET 8544862
73 LEVER, TPI 850290
74 SCREW, (M6 x 25) 821300 25
75 BUSHING 831870 1
76 GROMMET 834985
77 INDICATOR, Throttle Position 83295221
78 SPACER 850882
79 INDICATOR, Throttle Position 8M6005165
80 SCREW, (M5 x 65) Stainless Steel 40011117
81 LINK, Throttle 19385 40
82 CLAMP 856834 1
82 CLAMP 859172
83 SPACER 824921
84 SCREW, (M8 x 20) 818934 20
85 CLAMP 858951A01
86 CLAMP 856831 1
- POWERHEAD ASSEMBLY 854198A99
- POWERHEAD ASSEMBLY 854199A99
- GASKET SET 832934A98



Quick Overview

SCREW @5 10

SKU : 8M0045380

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061587748
