MERCURY 8M0046094 Repair Kit, Water Pump

Write a Review
$132.00
SKU:
8M0046094
Schematic Object Key:
-

MERCURY 8M0046094 Repair Kit, Water Pump

$132.00

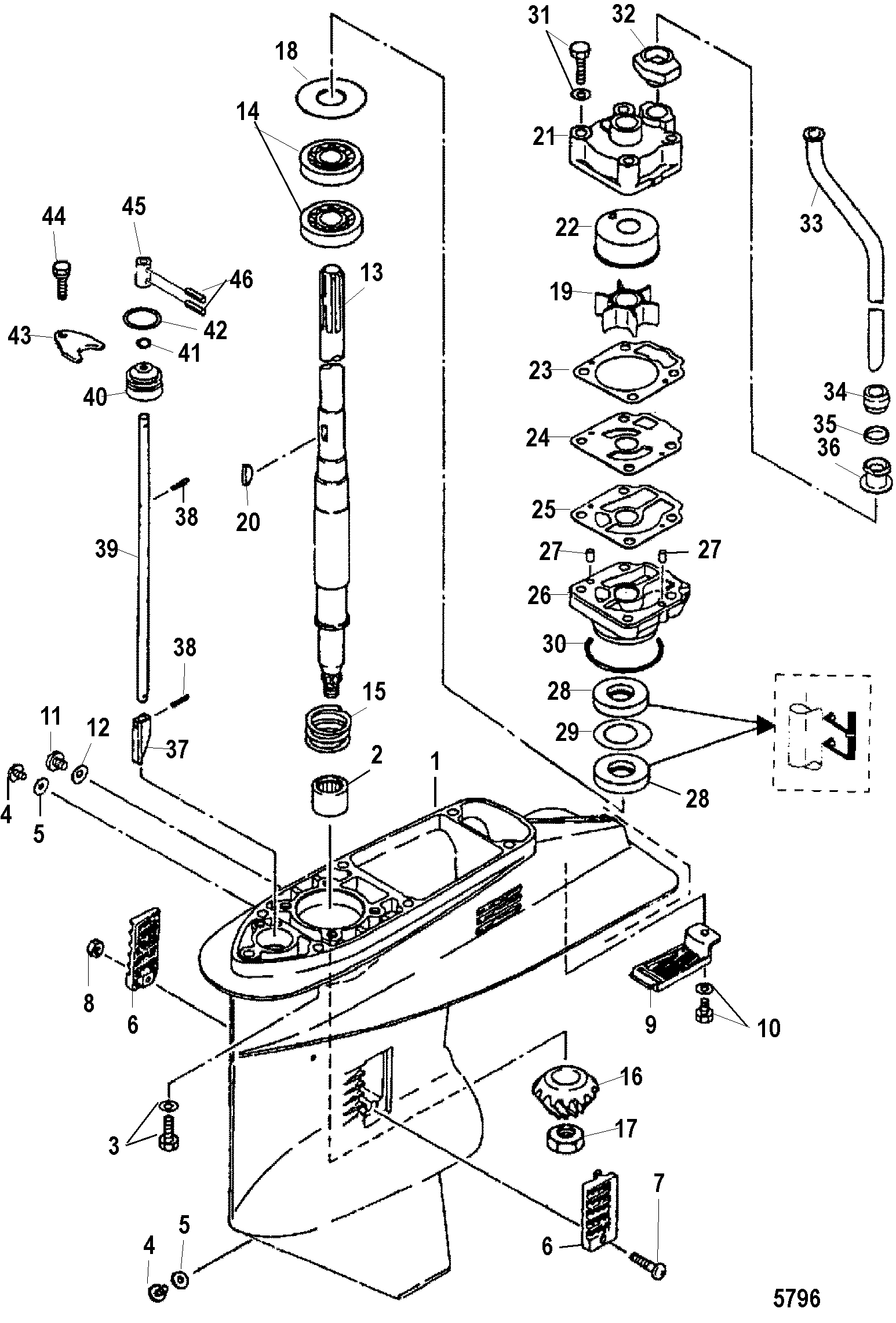

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 8M0046094 Repair Kit, Water Pump

Schematic Object Key : -

Product Description : MERCURY 8M0046094 Repair Kit, Water Pump

Product Category : 40 (International)/ 0N056165 & Up/ Gear Housing, Driveshaft, Serial 0N116271 And Up

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY, Complete 8M0046098
- GEAR HOUSING ASSEMBLY, Complete 825132T39
- GEAR HOUSING ASSEMBLY, Complete 8M0046099
1 GEAR HOUSING ASSEMBLY, Basic 8M0127360
1 GEAR HOUSING ASSEMBLY, Basic 8M0127361
2 BEARING, Needle 813048 7
3 BOLT 879194274
4 PLUG 95368 3
5 GASKET 95220
6 STRAINER, Water, Set 853763003
7 SCREW 855544 4
8 NUT 853722 16
9 STRAINER, Water 853763 2
10 SCREW, (M6 x 16) 824832 4
11 SCREW, Drain 95368 2
12 GASKET 95220011
13 DRIVESHAFT 16136 6
13 DRIVESHAFT 16136 5
13 DRIVESHAFT 16136007
14 BEARING, Ball 16128 3
15 SPRING 95383 6
16 GEAR, Pinion 16138004
17 NUT 853722 17
18 SHIM 851855001
18 SHIM 851855003
18 SHIM 851855005
18 SHIM 851855015
19 IMPELLER 16154 2
20 KEY 16155 1
21 HOUSING, Upper Water Pump 16156004
22 INSERT, Water Pump 16157005
23 GASKET 16158011
24 GUIDE PLATE 851857
25 GASKET 16158016
26 HOUSING, Water Pump Lower 826053 2
27 PIN, Dowel 95218 8
28 SEAL, Oil 853707 9
29 SHIM 853795 4
30 O-RING 16131
31 BOLT 879194276
32 SEAL 16168 2
33 TUBE, Water 16170 5
33 TUBE, Water 16170 4
33 TUBE, Water 16170007
34 SEAL 16171 2
35 COLLAR 95286 15
36 SEAL 853707 4
37 CAM 898103166
38 PIN 16179
39 CAM ROD 16186 5
39 CAM ROD 16186 3
39 CAM ROD 16186006
40 BUSHING 16176 2
41 O-RING 16177 2
42 O-RING 16178 2
43 STOPPER 810753 2
44 BOLT 16211 1
45 CONNECTOR 851859
46 PIN, Dowel 95218 9
- GASKET SET, Lower Unit 8M0125990
- REPAIR KIT, Water Pump 8M0046094
- HOUSING KIT, XL Extension 8M0127367
- GEAR HOUSING ASSEMBLY, Complete 8M0046098
- GEAR HOUSING ASSEMBLY, Complete 825132T39
- GEAR HOUSING ASSEMBLY, Complete 8M0046099
1 GEAR HOUSING ASSEMBLY, Basic 8M0127360
1 GEAR HOUSING ASSEMBLY, Basic 8M0127361
2 BEARING, Needle 813048 7
3 BOLT 879194274
4 PLUG 95368 3
5 GASKET 95220
6 STRAINER, Water, Set 853763003
7 SCREW 855544 4
8 NUT 853722 16
9 STRAINER, Water 853763 2
10 SCREW, (M6 x 16) 824832 4
11 SCREW, Drain 95368 2
12 GASKET 95220011
13 DRIVESHAFT 16136 6
13 DRIVESHAFT 16136 5
13 DRIVESHAFT 16136007
14 BEARING, Ball 16128 3
15 SPRING 95383 6
16 GEAR, Pinion 16138004
17 NUT 853722 17
18 SHIM 851855001
18 SHIM 851855003
18 SHIM 851855005
18 SHIM 851855015
19 IMPELLER 16154 2
20 KEY 16155 1
21 HOUSING, Upper Water Pump 16156004
22 INSERT, Water Pump 16157005
23 GASKET 16158011
24 GUIDE PLATE 851857
25 GASKET 16158016
26 HOUSING, Water Pump Lower 826053 2
27 PIN, Dowel 95218 8
28 SEAL, Oil 853707 9
29 SHIM 853795 4
30 O-RING 16131
31 BOLT 879194276
32 SEAL 16168 2
33 TUBE, Water 16170 5
33 TUBE, Water 16170 4
33 TUBE, Water 16170007
34 SEAL 16171 2
35 COLLAR 95286 15
36 SEAL 853707 4
37 CAM 898103166
38 PIN 16179
39 CAM ROD 16186 5
39 CAM ROD 16186 3
39 CAM ROD 16186006
40 BUSHING 16176 2
41 O-RING 16177 2
42 O-RING 16178 2
43 STOPPER 810753 2
44 BOLT 16211 1
45 CONNECTOR 851859
46 PIN, Dowel 95218 9
- GASKET SET, Lower Unit 8M0125990
- REPAIR KIT, Water Pump 8M0046094
- HOUSING KIT, XL Extension 8M0127367



Quick Overview

REPAIR KIT-W/P 46

SKU : 8M0046094

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061865372
