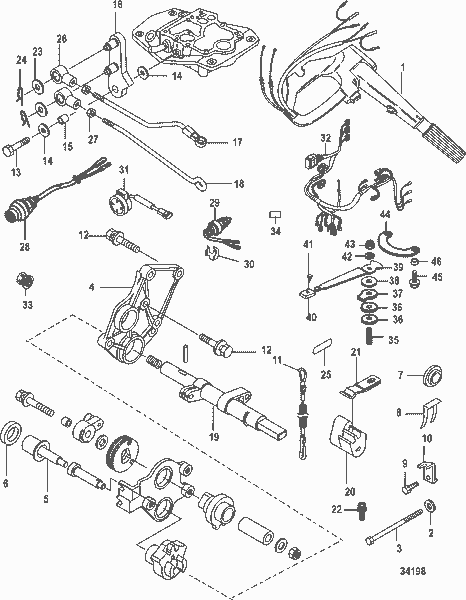

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : -
Product Description : MERCURY 8M0051062 Conversion Kit, Tiller Handle (Electric Remote Control To Electric Handle)
Product Category : 25 EFI (3 CYL.)(4-STROKE)/ 0R106999 & Up/Conversion Kit-Tiller Handle, Electric - 879147A0
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
- | CONVERSION KIT, Tiller Handle (Electric Remote Control to Electric Handle) | 8M0051062 |
1 | NOT SOLD SEPARATE, Tiller Handle Assembly | NSS |
2 | WASHER, Stainless Steel | 879194340 |
3 | BOLT, Steel | 8M0058362 |
4 | NOT SOLD SEPARATE, Gear Assembly | NSS |
5 | KNOB | 898101110 |
6 | GROMMET, Rubber | 898101166 |
7 | PLUG, Plastic | 898101625 |
8 | RETAINER, Stainless Steel | 898101149 |
9 | BOLT | 879194248 |
10 | BRACKET, Starter Lock Cable - Stainless Steel | 898101265 |
11 | LANYARD ASSEMBLY | 15920Q54 |
12 | BOLT, Stainless Steel | 823042 |
13 | BOLT, Stainless Steel | 879194249 |
14 | WASHER, Stainless Steel | 95392 1 |
15 | COLLAR, (9.5 mm) Stainless Steel | 95286029 |
16 | ARM, Throttle | 898101195 |
17 | ROD, Throttle | 898101204 |
18 | ROD, Throttle - Stainless Steel | 898101205 |
19 | SHIFT SHAFT | 898103T16 |
20 | LEVER | 898101112 |
21 | STOPPER, Shift Lever - Stainless Steel | 8M0138740 |
22 | BOLT | 8230427 |
23 | WASHER, Plastic | 898101218 |
24 | COTTER PIN, Stainless Steel | 898101174 |
25 | DECAL, Throttle Only | 859278003 |
26 | JOINT, Cable | 892775 |
27 | NUT, Stainless Steel | 16081 |
28 | SWITCH ASSEMBLY, Start | 853820A02 |
29 | SWITCH ASSEMBLY, Neutral | 8M0127937 |
30 | ACTUATOR | 803841 |
31 | ALARM, Over-Heat | 898101134 |
32 | HARNESS ASSEMBLY, ECU | 898101T51 |
33 | CAP NUT | 853722 14 |
34 | DECAL, Start | 859278004 |
- | CO-PILOT KIT | 898103A92 |
35 | BOLT | 895140002 |
36 | DISC | 895173 |
37 | WASHER | 895146002 |
38 | WASHER | 895146001 |
39 | HANDLE, Co-Pilot | 898101035 |
40 | GRIP | 898101083 |
41 | BUTTON | 8M0051399 |
42 | WASHER | 16192 |
43 | NUT, Nylon | 95374 |
44 | PLATE, Co-Pilot | 898101036 |
45 | SCREW, (M6 x 16) | 824832 4 |
46 | COLLAR | 898101031 |
- | CONVERSION KIT, Tiller Handle (Electric Remote Control to Electric Handle) | 8M0051062 |
1 | NOT SOLD SEPARATE, Tiller Handle Assembly | NSS |
2 | WASHER, Stainless Steel | 879194340 |
3 | BOLT, Steel | 8M0058362 |
4 | NOT SOLD SEPARATE, Gear Assembly | NSS |
5 | KNOB | 898101110 |
6 | GROMMET, Rubber | 898101166 |
7 | PLUG, Plastic | 898101625 |
8 | RETAINER, Stainless Steel | 898101149 |
9 | BOLT | 879194248 |
10 | BRACKET, Starter Lock Cable - Stainless Steel | 898101265 |
11 | LANYARD ASSEMBLY | 15920Q54 |
12 | BOLT, Stainless Steel | 823042 |
13 | BOLT, Stainless Steel | 879194249 |
14 | WASHER, Stainless Steel | 95392 1 |
15 | COLLAR, (9.5 mm) Stainless Steel | 95286029 |
16 | ARM, Throttle | 898101195 |
17 | ROD, Throttle | 898101204 |
18 | ROD, Throttle - Stainless Steel | 898101205 |
19 | SHIFT SHAFT | 898103T16 |
20 | LEVER | 898101112 |
21 | STOPPER, Shift Lever - Stainless Steel | 8M0138740 |
22 | BOLT | 8230427 |
23 | WASHER, Plastic | 898101218 |
24 | COTTER PIN, Stainless Steel | 898101174 |
25 | DECAL, Throttle Only | 859278003 |
26 | JOINT, Cable | 892775 |
27 | NUT, Stainless Steel | 16081 |
28 | SWITCH ASSEMBLY, Start | 853820A02 |
29 | SWITCH ASSEMBLY, Neutral | 8M0127937 |
30 | ACTUATOR | 803841 |
31 | ALARM, Over-Heat | 898101134 |
32 | HARNESS ASSEMBLY, ECU | 898101T51 |
33 | CAP NUT | 853722 14 |
34 | DECAL, Start | 859278004 |
- | CO-PILOT KIT | 898103A92 |
35 | BOLT | 895140002 |
36 | DISC | 895173 |
37 | WASHER | 895146002 |
38 | WASHER | 895146001 |
39 | HANDLE, Co-Pilot | 898101035 |
40 | GRIP | 898101083 |
41 | BUTTON | 8M0051399 |
42 | WASHER | 16192 |
43 | NUT, Nylon | 95374 |
44 | PLATE, Co-Pilot | 898101036 |
45 | SCREW, (M6 x 16) | 824832 4 |
46 | COLLAR | 898101031 |
Quick Overview
CONV. KIT-TILLER
SKU : 8M0051062
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061800151
