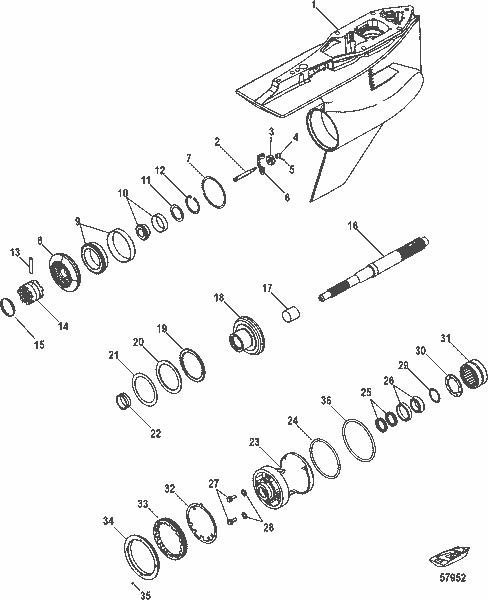

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 21
Product Description : MERCURY 8M0053116 Shim Set
Product Category : 400 VERADO (4-Stroke)(6 CYL.)/ 2B141124 & Up/Gear Housing,, Prop Shaft-Standard Rot, 5.44 Torp
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
- | GEAR HOUSING ASSEMBLY, Complete, Silver (Long)(1.75:1) | 8M0117245 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (X-Long) (1.75:1) | 8M0117246 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (XX-Long) (1.75:1) | 8M0117247 |
1 | GEAR HOUSING ASSEMBLY, Basic, Silver | 8M0117251 |
2 | SPOOL ASSEMBLY | 8M0053114 |
3 | NOT SOLD SEPARATE, SPOOL | NSS |
4 | NOT SOLD SEPARATE, SLEEVE | NSS |
5 | COTTER PIN | 46950 1 |
6 | CRANK, Shifter, 1/4 Pivot Pin | 8M0046215 |
7 | SHIM SET | 8M0063270 |
8 | GEAR SET, 12/21(1.75:1), Forward | 8M0078258 |
9 | BEARING ASSEMBLY, Roller | 884323T01 |
10 | BEARING ASSEMBLY, Roller-Tappered | 884325T01 |
11 | THRUST WASHER | 8M0053823 |
12 | RETAINING RING | 8M0051043 |
13 | PIN | 8M0045493 |
14 | CLUTCH | 8M0053113 |
15 | SPRING | 8M0050575 |
16 | PROPELLER SHAFT, 1.25 Inch | 8M0103300 |
17 | SPACER | 8M0064306 |
18 | GEAR KIT, Reverse | 8M0053124 |
19 | BEARING | 8M0050692 |
20 | WASHER | 8M0050688 |
21 | SHIM SET | 8M0053116 |
22 | ADAPTOR | 8M0053183 |
23 | CARRIER ASSEMBLY, Bearing | 8M0117238 |
24 | O-RING, (4.475 x .210) | 8M0000190 |
25 | SEAL, Oil | 888483 |
26 | BEARING ASSEMBLY, Tapered | 8M0148319 |
27 | SCREW, Special | 8M0071653 |
28 | SEAL | 830749 |
29 | SHIM SET | 8M0076745 |
29 | WASHER, .020 | 8M0050423 |
29 | WASHER, .022 | 8M0050424 |
29 | WASHER, .024 | 8M0050425 |
29 | WASHER, .026 | 8M0050427 |
29 | WASHER, .028 | 8M0050428 |
29 | WASHER, .030 | 8M0050429 |
29 | WASHER, .032 | 8M0050430 |
29 | WASHER, .034 | 8M0050431 |
29 | WASHER, .036 | 8M0050432 |
29 | WASHER, .038 | 8M0050433 |
29 | WASHER, .040 | 8M0050434 |
29 | WASHER, .042 | 8M0050435 |
29 | WASHER, .044 | 8M0050436 |
29 | WASHER, .046 | 8M0050437 |
29 | WASHER, .048 | 8M0050438 |
29 | WASHER, .050 | 8M0050439 |
30 | RING, Retainer | 8M0056639 |
31 | BEARING, Needle | 8M0050704 |
32 | TAB WASHER | 8M0108527 |
33 | NUT, Retainer | 8M0111653 |
34 | COVER KIT | 8M0050726 |
34 | COVER KIT, Flush, Standard | 8M0050821 |
35 | SET SCREW, (10-32) | 8M0036819 |
36 | RING, Thrust | 8M0046569 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (Long)(1.75:1) | 8M0117245 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (X-Long) (1.75:1) | 8M0117246 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (XX-Long) (1.75:1) | 8M0117247 |
1 | GEAR HOUSING ASSEMBLY, Basic, Silver | 8M0117251 |
2 | SPOOL ASSEMBLY | 8M0053114 |
3 | NOT SOLD SEPARATE, SPOOL | NSS |
4 | NOT SOLD SEPARATE, SLEEVE | NSS |
5 | COTTER PIN | 46950 1 |
6 | CRANK, Shifter, 1/4 Pivot Pin | 8M0046215 |
7 | SHIM SET | 8M0063270 |
8 | GEAR SET, 12/21(1.75:1), Forward | 8M0078258 |
9 | BEARING ASSEMBLY, Roller | 884323T01 |
10 | BEARING ASSEMBLY, Roller-Tappered | 884325T01 |
11 | THRUST WASHER | 8M0053823 |
12 | RETAINING RING | 8M0051043 |
13 | PIN | 8M0045493 |
14 | CLUTCH | 8M0053113 |
15 | SPRING | 8M0050575 |
16 | PROPELLER SHAFT, 1.25 Inch | 8M0103300 |
17 | SPACER | 8M0064306 |
18 | GEAR KIT, Reverse | 8M0053124 |
19 | BEARING | 8M0050692 |
20 | WASHER | 8M0050688 |
21 | SHIM SET | 8M0053116 |
22 | ADAPTOR | 8M0053183 |
23 | CARRIER ASSEMBLY, Bearing | 8M0117238 |
24 | O-RING, (4.475 x .210) | 8M0000190 |
25 | SEAL, Oil | 888483 |
26 | BEARING ASSEMBLY, Tapered | 8M0148319 |
27 | SCREW, Special | 8M0071653 |
28 | SEAL | 830749 |
29 | SHIM SET | 8M0076745 |
29 | WASHER, .020 | 8M0050423 |
29 | WASHER, .022 | 8M0050424 |
29 | WASHER, .024 | 8M0050425 |
29 | WASHER, .026 | 8M0050427 |
29 | WASHER, .028 | 8M0050428 |
29 | WASHER, .030 | 8M0050429 |
29 | WASHER, .032 | 8M0050430 |
29 | WASHER, .034 | 8M0050431 |
29 | WASHER, .036 | 8M0050432 |
29 | WASHER, .038 | 8M0050433 |
29 | WASHER, .040 | 8M0050434 |
29 | WASHER, .042 | 8M0050435 |
29 | WASHER, .044 | 8M0050436 |
29 | WASHER, .046 | 8M0050437 |
29 | WASHER, .048 | 8M0050438 |
29 | WASHER, .050 | 8M0050439 |
30 | RING, Retainer | 8M0056639 |
31 | BEARING, Needle | 8M0050704 |
32 | TAB WASHER | 8M0108527 |
33 | NUT, Retainer | 8M0111653 |
34 | COVER KIT | 8M0050726 |
34 | COVER KIT, Flush, Standard | 8M0050821 |
35 | SET SCREW, (10-32) | 8M0036819 |
36 | RING, Thrust | 8M0046569 |
Quick Overview
SHIM SET 15
SKU : 8M0053116
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061877702
