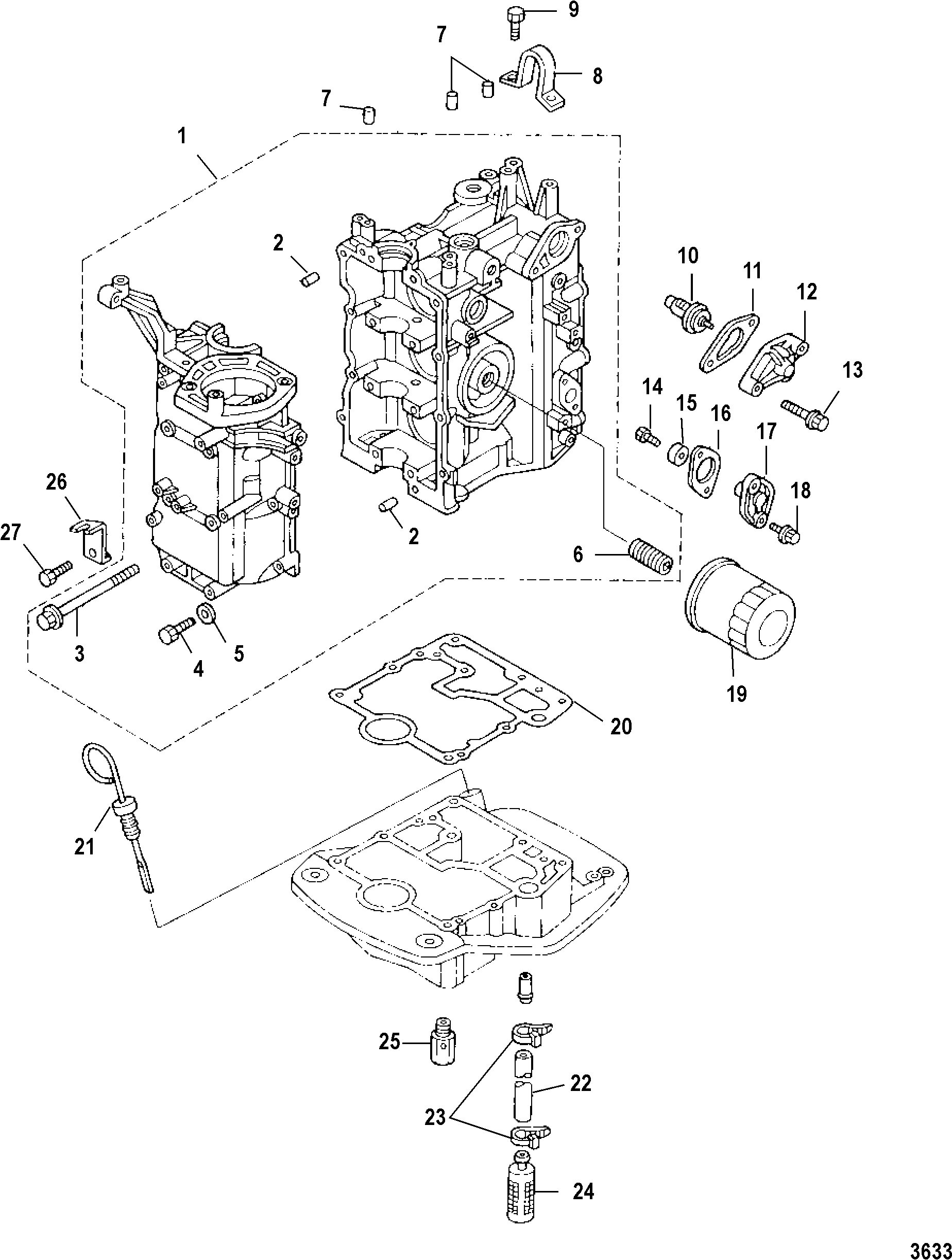

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 22
Product Description : MERCURY 8M0057119 Hose, Rubber (220 Mm)
Product Category : 25 SEAPRO (4-STROKE)/ 0R051710 & Up/ Cylinder Block
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | CYLINDER BLOCK | 815013A07 |
2 | PIN, Dowel | 16119 |
3 | BOLT | 855677006 |
4 | BOLT | 853531001 |
5 | WASHER, Stainless Steel | 879194338 |
6 | BOLT | 855677004 |
7 | PIN, Dowel | 16119 |
8 | EYE, Lifting | 855550001 |
9 | BOLT | 16830009 |
10 | THERMOSTAT, 60 Degrees | 8M0119207 |
11 | GASKET | 853702005 |
12 | CAP | 853705 2 |
13 | BOLT | 879194264 |
14 | BOLT | 16832 |
15 | ANODE | 823912 |
16 | GASKET | 895150001 |
17 | PLUG, Anode | 895151001 |
18 | BOLT | 167051 |
19 | FILTER ASSEMBLY, Oil | 822626K03 |
19 | FILTER ASSEMBLY, Oil | 822626Q03 |
20 | GASKET | 835427T04 |
21 | DIPSTICK | 803512002 |
22 | HOSE, Rubber (220 mm) | 8M0057119 |
23 | TIE STRAP, (8.00 Inches) | 816311T |
24 | STRAINER, Oil | 895152003 |
25 | PLUNGER | 898101142 |
26 | BRACKET | 853752002 |
27 | BOLT, (M6 x 14) | 16223 |
- | GASKET SET, Powerhead | 835427A05 |
- | POWERHEAD ASSEMBLY | 895188A05 |
1 | CYLINDER BLOCK | 815013A07 |
2 | PIN, Dowel | 16119 |
3 | BOLT | 855677006 |
4 | BOLT | 853531001 |
5 | WASHER, Stainless Steel | 879194338 |
6 | BOLT | 855677004 |
7 | PIN, Dowel | 16119 |
8 | EYE, Lifting | 855550001 |
9 | BOLT | 16830009 |
10 | THERMOSTAT, 60 Degrees | 8M0119207 |
11 | GASKET | 853702005 |
12 | CAP | 853705 2 |
13 | BOLT | 879194264 |
14 | BOLT | 16832 |
15 | ANODE | 823912 |
16 | GASKET | 895150001 |
17 | PLUG, Anode | 895151001 |
18 | BOLT | 167051 |
19 | FILTER ASSEMBLY, Oil | 822626K03 |
19 | FILTER ASSEMBLY, Oil | 822626Q03 |
20 | GASKET | 835427T04 |
21 | DIPSTICK | 803512002 |
22 | HOSE, Rubber (220 mm) | 8M0057119 |
23 | TIE STRAP, (8.00 Inches) | 816311T |
24 | STRAINER, Oil | 895152003 |
25 | PLUNGER | 898101142 |
26 | BRACKET | 853752002 |
27 | BOLT, (M6 x 14) | 16223 |
- | GASKET SET, Powerhead | 835427A05 |
- | POWERHEAD ASSEMBLY | 895188A05 |
Quick Overview
HOSE 32
SKU : 8M0057119
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061685147
