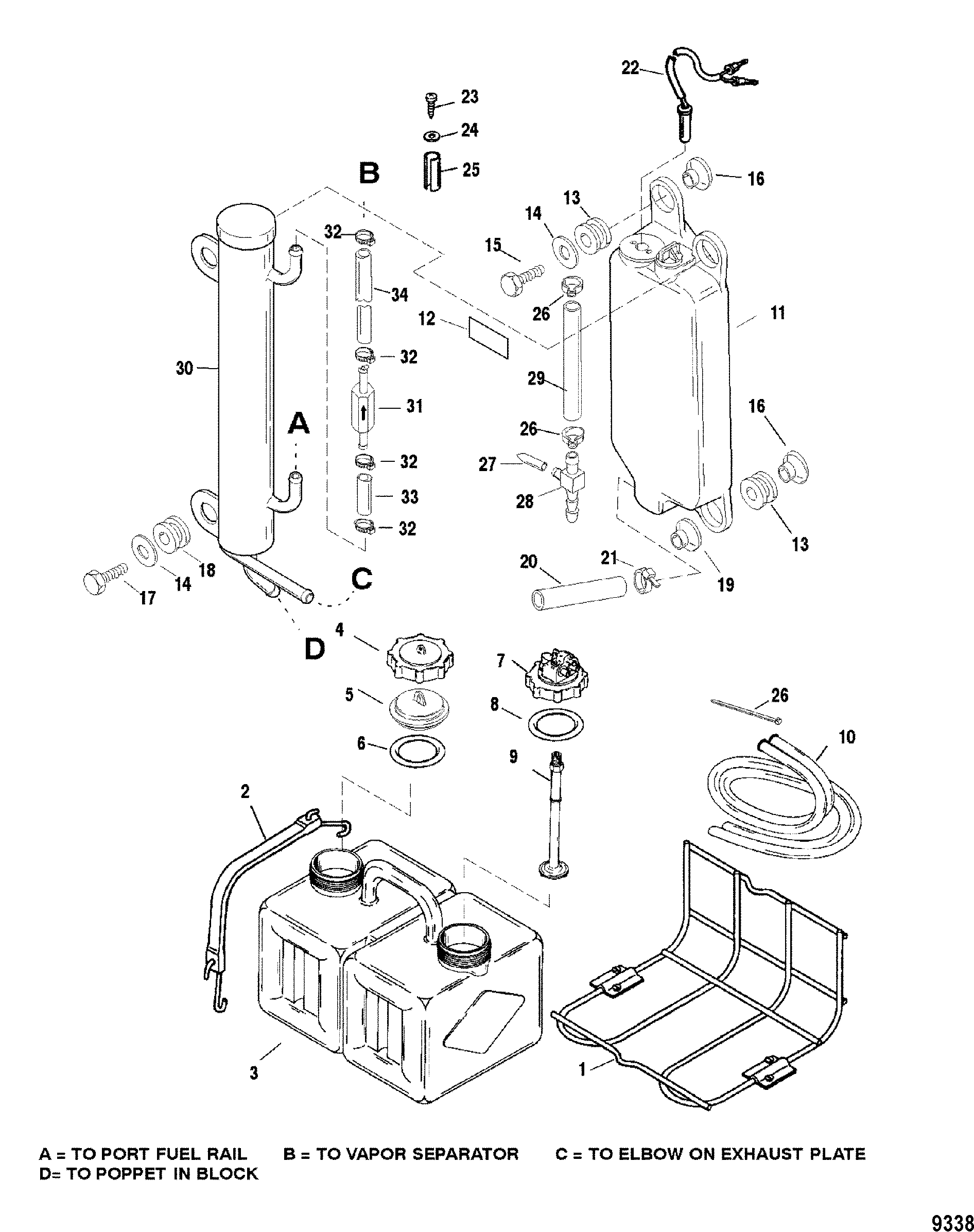

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 11
Product Description : MERCURY 8M0062954 Reservoir Assembly, Oil
Product Category : V-150 DFI (2.5L)/ 0G760300 THRU 0G960499/ Oil Injection Components
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | BRACKET KIT | 12335A 1 |
2 | CORD/HOOK KIT | 12323A 1 |
3 | TANK | 8742 1 |
4 | CAP ASSEMBLY | 43298A 2 |
5 | NOT SOLD SEPARATE, Insert | NSS |
6 | O-RING, (2.225 x .210) | 11332 |
7 | HOUSING ASSEMBLY, Adapter | 816190A4 |
8 | O-RING, (2.225 x .210) | 11332 |
9 | TUBE | 99802 |
10 | HOSE, (114.00 Inches) | 99439 |
11 | RESERVOIR ASSEMBLY, Oil | 8M0062954 |
12 | NOT SOLD SEPARATE, Decal-Reservoir | NSS |
13 | GROMMET | 855362001 |
14 | WASHER | 49436 |
15 | SCREW, (.312-18 x 1.250) | 60411 |
16 | BUSHING | 855364 |
17 | SCREW, (.312-18 x 1.750) | 69267 |
18 | GROMMET | 833155 |
19 | BUSHING | 850234 1 |
20 | TUBING, (25.00 Inches Bulk) (Cut to 20 Inches) | 823814 55 |
21 | TIE STRAP, (8.00 Inches) | 816311T |
22 | SWITCH | 12886A 8 |
23 | SCREW, (.164-18 x .375) | 58376 |
24 | WASHER, (.203 x .562 x .060) Stainless Steel | 72761 |
25 | SPACER | 826084 1 |
26 | TIE STRAP, (8.00 Inches) | 816311T |
27 | NOT SOLD SEPARATE, Plug | NSS |
28 | FITTING | 42425 4 |
29 | HOSE, (57.00 Inches Bulk) (Cut to 6 Inches) | 8M0108355 |
30 | COOLER ASSEMBLY, Fuel | 855785A 1 |
31 | CHECK VALVE | 8557611 |
32 | CLAMP, Hose (15.3) | 856880 |
33 | TUBING, (17.00 Inches Bulk) (Cut to 3 Inches) | 856822 39 |
34 | HOSE (W/INSULATING SLEEVE) (30 IN.) | 856822A 3 |
1 | BRACKET KIT | 12335A 1 |
2 | CORD/HOOK KIT | 12323A 1 |
3 | TANK | 8742 1 |
4 | CAP ASSEMBLY | 43298A 2 |
5 | NOT SOLD SEPARATE, Insert | NSS |
6 | O-RING, (2.225 x .210) | 11332 |
7 | HOUSING ASSEMBLY, Adapter | 816190A4 |
8 | O-RING, (2.225 x .210) | 11332 |
9 | TUBE | 99802 |
10 | HOSE, (114.00 Inches) | 99439 |
11 | RESERVOIR ASSEMBLY, Oil | 8M0062954 |
12 | NOT SOLD SEPARATE, Decal-Reservoir | NSS |
13 | GROMMET | 855362001 |
14 | WASHER | 49436 |
15 | SCREW, (.312-18 x 1.250) | 60411 |
16 | BUSHING | 855364 |
17 | SCREW, (.312-18 x 1.750) | 69267 |
18 | GROMMET | 833155 |
19 | BUSHING | 850234 1 |
20 | TUBING, (25.00 Inches Bulk) (Cut to 20 Inches) | 823814 55 |
21 | TIE STRAP, (8.00 Inches) | 816311T |
22 | SWITCH | 12886A 8 |
23 | SCREW, (.164-18 x .375) | 58376 |
24 | WASHER, (.203 x .562 x .060) Stainless Steel | 72761 |
25 | SPACER | 826084 1 |
26 | TIE STRAP, (8.00 Inches) | 816311T |
27 | NOT SOLD SEPARATE, Plug | NSS |
28 | FITTING | 42425 4 |
29 | HOSE, (57.00 Inches Bulk) (Cut to 6 Inches) | 8M0108355 |
30 | COOLER ASSEMBLY, Fuel | 855785A 1 |
31 | CHECK VALVE | 8557611 |
32 | CLAMP, Hose (15.3) | 856880 |
33 | TUBING, (17.00 Inches Bulk) (Cut to 3 Inches) | 856822 39 |
34 | HOSE (W/INSULATING SLEEVE) (30 IN.) | 856822A 3 |
Quick Overview
RESERVOIR, OIL 1200
SKU : 8M0062954
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061897175
