MERCURY 8M0070896 Gear Housing Assembly, Complete

Write a Review
$1,635.71
SKU:
8M0070896

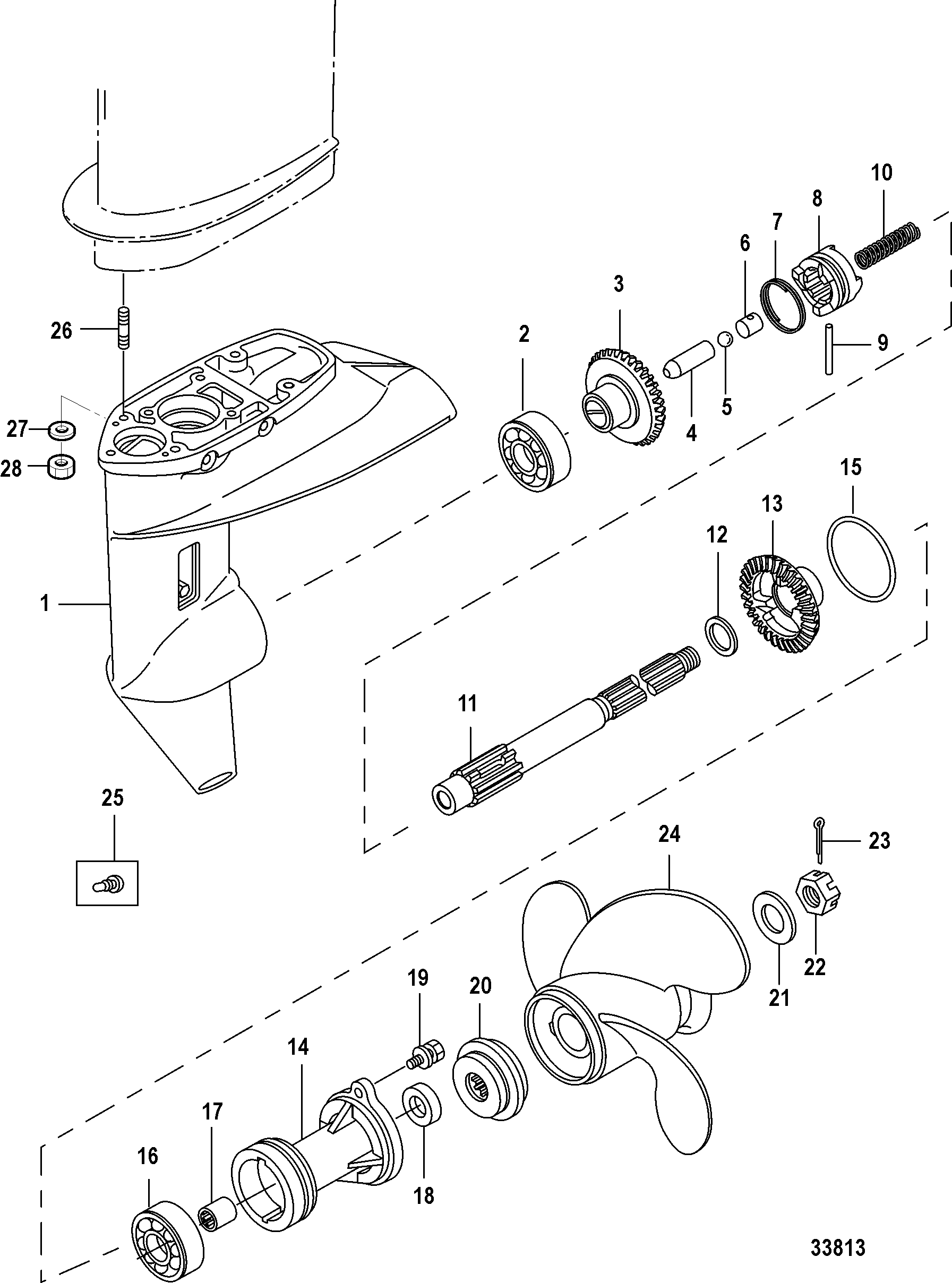

Schematic Object Key:
-

MERCURY 8M0070896 Gear Housing Assembly, Complete

$1,635.71

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 8M0070896 Gear Housing Assembly, Complete

Schematic Object Key : -

Product Description : MERCURY 8M0070896 Gear Housing Assembly, Complete

Product Category : 10 Carb(2CYL)(4-STROKE)/ 0R575531 & Up/ Gear Housing, Propeller Shaft

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY, Complete 8M0070896
- GEAR HOUSING ASSEMBLY, Complete 8M0070897
- GEAR HOUSING ASSEMBLY, Complete 8M0070898
1 GEAR HOUSING, Basic 8M0070875
2 BEARING, Ball 879147T60
3 GEAR, Forward 879147T90
4 PUSH ROD 898103150
5 BALL, Steel 16132 2
6 RETAINER 853764003
7 SPRING 803746
8 CLUTCH 879147T93
9 PIN 16085 1
10 SPRING 17667 2
11 PROPELLER SHAFT 8M0088568
12 WASHER 803742
13 GEAR, Reverse 879147T92
14 CARRIER ASSEMBLY, Bearing 8M0070878
15 O-RING 8M0087846
16 BEARING, Ball 879147T60
17 BEARING, Needle 803734
18 SEAL, Oil 16162 2
19 BOLT 8M0075053
- PROP HARDWARE KIT 803743A01
20 THRUST HOLDER 8M0143215
21 WASHER 16140 2
22 PROP NUT 16147 1
23 COTTER PIN 815026 4
24 BLACK MAX PROPELLER, 3 Blade (9.25 Diameter/9 Pitch) 897750A11
24 BLACK MAX PROPELLER, 3 Blade (9.25 Diameter/10 Pitch) 897752A11
24 BLACK MAX PROPELLER, 4 Blade (10 Diameter/7 Pitch) 812948A10
24 BLACK MAX PROPELLER, 3 Blade (9.50 Diameter/8 Pitch) 897748A11
24 BLACK MAX PROPELLER, 3 Blade (9.25 Diameter/11.5 Pitch) 897754A11
25 PLUG, Pipe, Sub Water 898103165
26 STUD 898101943
27 WASHER 8M0135942
28 NUT 879194337
- GASKET SET, Lower Unit 95220A08
- GEAR HOUSING ASSEMBLY, Complete 8M0070896
- GEAR HOUSING ASSEMBLY, Complete 8M0070897
- GEAR HOUSING ASSEMBLY, Complete 8M0070898
1 GEAR HOUSING, Basic 8M0070875
2 BEARING, Ball 879147T60
3 GEAR, Forward 879147T90
4 PUSH ROD 898103150
5 BALL, Steel 16132 2
6 RETAINER 853764003
7 SPRING 803746
8 CLUTCH 879147T93
9 PIN 16085 1
10 SPRING 17667 2
11 PROPELLER SHAFT 8M0088568
12 WASHER 803742
13 GEAR, Reverse 879147T92
14 CARRIER ASSEMBLY, Bearing 8M0070878
15 O-RING 8M0087846
16 BEARING, Ball 879147T60
17 BEARING, Needle 803734
18 SEAL, Oil 16162 2
19 BOLT 8M0075053
- PROP HARDWARE KIT 803743A01
20 THRUST HOLDER 8M0143215
21 WASHER 16140 2
22 PROP NUT 16147 1
23 COTTER PIN 815026 4
24 BLACK MAX PROPELLER, 3 Blade (9.25 Diameter/9 Pitch) 897750A11
24 BLACK MAX PROPELLER, 3 Blade (9.25 Diameter/10 Pitch) 897752A11
24 BLACK MAX PROPELLER, 4 Blade (10 Diameter/7 Pitch) 812948A10
24 BLACK MAX PROPELLER, 3 Blade (9.50 Diameter/8 Pitch) 897748A11
24 BLACK MAX PROPELLER, 3 Blade (9.25 Diameter/11.5 Pitch) 897754A11
25 PLUG, Pipe, Sub Water 898103165
26 STUD 898101943
27 WASHER 8M0135942
28 NUT 879194337
- GASKET SET, Lower Unit 95220A08



Quick Overview

GC 15/20 4S SH 1668

SKU : 8M0070896

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061815414
