MERCURY 8M0072138 Gasket

Write a Review
$6.50
SKU:
8M0072138
Schematic Object Key:
18

MERCURY 8M0072138 Gasket

$6.50

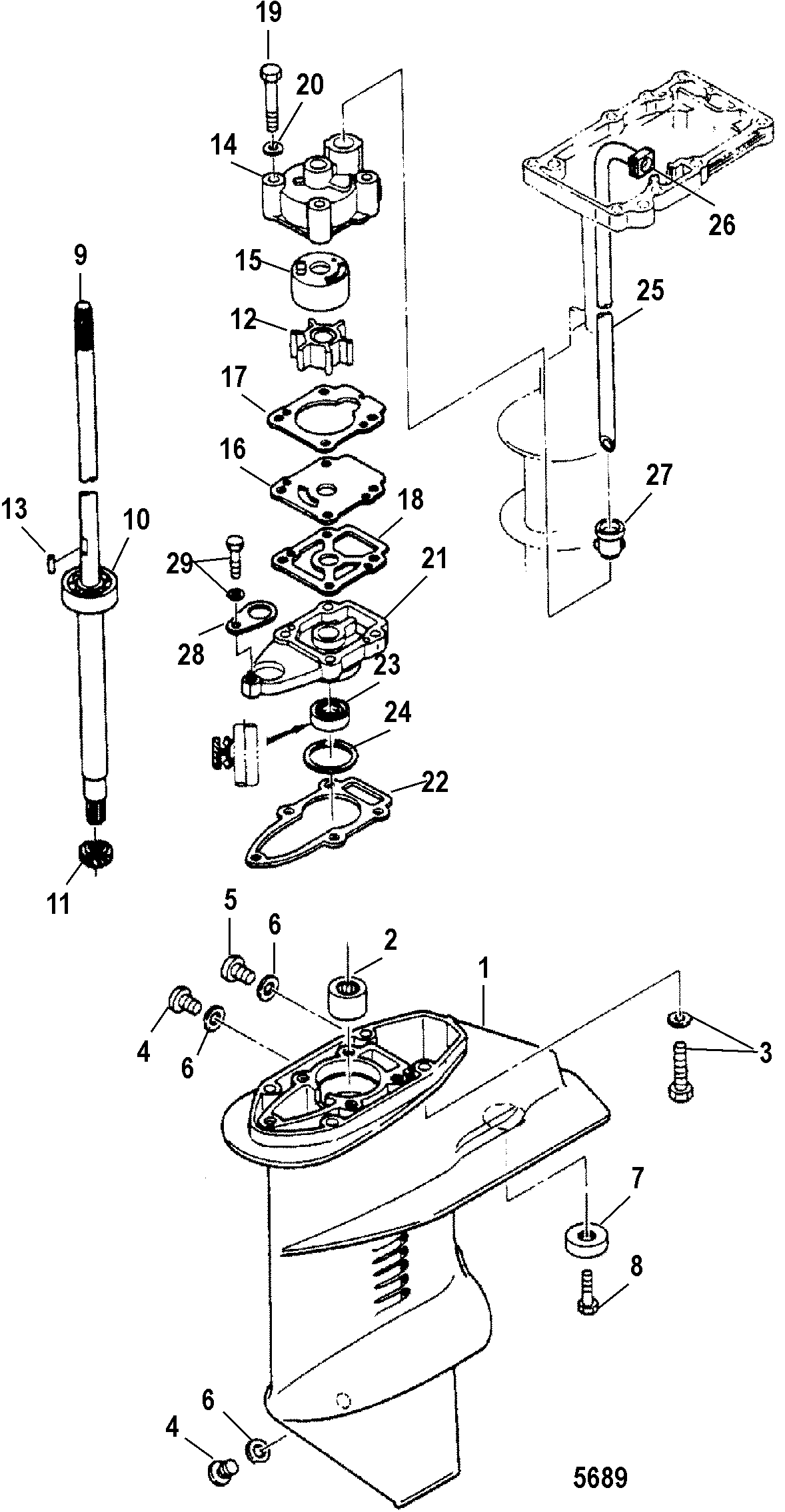

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 8M0072138 Gasket

Schematic Object Key : 18

Product Description : MERCURY 8M0072138 Gasket

Product Category : 6 (2 CYL.)(2-STROKE)(International)/ 0N027903 THRU 0N055109/ Gear Housing(Driveshaft)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY, Complete 8M0070901
- GEAR HOUSING ASSEMBLY, Complete 8M0070902
1 GEAR HOUSING ASSEMBLY, Basic 803729T04
2 BEARING, Needle 803675 3
3 BOLT 8M0098606
4 PLUG 95368 3
5 PLUG 95368 3
6 GASKET 95220
7 ANODE 823913Q
8 BOLT, (M6 x 16) 16832
9 DRIVESHAFT 803738T15
9 DRIVESHAFT 803738T16
10 BEARING, Ball 16132 6
11 GEAR, Pinion 803740 1
12 IMPELLER 803748 1
13 PIN, Roll - Stainless Steel 95218 11
14 HOUSING, Water Pump - Upper 803750A02
15 LINER, Stainless Steel 803751 1
16 GUIDE PLATE, Stainless Steel 803753 1
17 GASKET 8M0072137
18 GASKET 8M0072138
19 BOLT, Stainless Steel 879194305
20 WASHER, Stainless Steel 16826
21 HOUSING, Water Pump - Lower 803750A01
22 GASKET 8M0072139
23 SEAL, Oil 95348
24 SHIM 853795 5
25 PIPE, Water 803755 2
25 PIPE, Water 803755 3
26 GROMMET 804899 1
27 GROMMET 804903
28 RETAINER 16165
29 BOLT 823042
- REPAIR KIT, Water Pump 853792A 5
- GASKET SET, Lower Unit 8M0082883
- GEAR HOUSING ASSEMBLY, Complete 8M0070901
- GEAR HOUSING ASSEMBLY, Complete 8M0070902
1 GEAR HOUSING ASSEMBLY, Basic 803729T04
2 BEARING, Needle 803675 3
3 BOLT 8M0098606
4 PLUG 95368 3
5 PLUG 95368 3
6 GASKET 95220
7 ANODE 823913Q
8 BOLT, (M6 x 16) 16832
9 DRIVESHAFT 803738T15
9 DRIVESHAFT 803738T16
10 BEARING, Ball 16132 6
11 GEAR, Pinion 803740 1
12 IMPELLER 803748 1
13 PIN, Roll - Stainless Steel 95218 11
14 HOUSING, Water Pump - Upper 803750A02
15 LINER, Stainless Steel 803751 1
16 GUIDE PLATE, Stainless Steel 803753 1
17 GASKET 8M0072137
18 GASKET 8M0072138
19 BOLT, Stainless Steel 879194305
20 WASHER, Stainless Steel 16826
21 HOUSING, Water Pump - Lower 803750A01
22 GASKET 8M0072139
23 SEAL, Oil 95348
24 SHIM 853795 5
25 PIPE, Water 803755 2
25 PIPE, Water 803755 3
26 GROMMET 804899 1
27 GROMMET 804903
28 RETAINER 16165
29 BOLT 823042
- REPAIR KIT, Water Pump 853792A 5
- GASKET SET, Lower Unit 8M0082883



Quick Overview

GASKET 27

SKU : 8M0072138

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061606203
