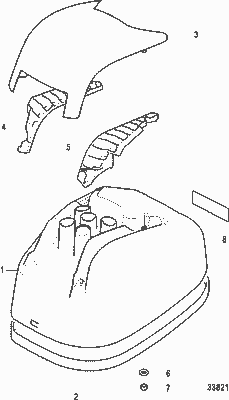

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : -
Product Description : MERCURY 8M0073668 Decal, Horsepower 2
Product Category : 3.5 (4-STROKE) Carb/ 0R131842 & Up/ Cowling
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | TOP COWL ASSEMBLY, Mercury | 898103T78 |
1 | TOP COWL ASSEMBLY, Black, no decals | 8M0130974 |
1 | TOP COWL ASSEMBLY, Mariner | 898103T80 |
1 | TOP COWL ASSEMBLY, Silver, no decals | 8M0058617 |
2 | SEAL, Cowl | 898101348 |
2 | SEAL | 8M0072631 |
3 | HANDLE, Tilt Mercury | 898103T77 |
3 | HANDLE, Tilt Mariner | 898103T79 |
4 | WASHER, Stainless Steel | 879194338 |
5 | LOCKWASHER, (M6) | 40025 6 |
6 | NUT | 853722022 |
- | DECAL SET, Mercury 3.5 | 816013A06 |
- | DECAL SET, Mercury 2.5 | 896851A06 |
- | DECAL SET, Mercury 2 | 816014A06 |
- | DECAL SET, Mercury, 2, 2.5, 3.5 | 8M0072620 |
- | DECAL SET, Mercury Top Cowl | 8M0081455 |
- | DECAL, M-icon | 8M0050645 |
- | DECAL SET, Mercury, Lower Cowl | 8M0081456 |
- | DECAL, Horsepower 2 | 8M0073668 |
- | DECAL, Horsepower 2.5 | 8M0073669 |
- | DECAL, Horsepower 3.5 | 8M0073670 |
- | DECAL SET, Mariner 3.5 | 889246T15 |
- | DECAL SET, Mariner 2.5 | 889246T13 |
- | DECAL SET, Mariner, 2.5-3.5 | 8M0072621 |
7 | BOTTOM COWL | 898103T76 |
8 | NOT SOLD SEPARATE, Decal-Spark Plug | NSS |
9 | COWL LATCH ASSEMBLY | 8M0063135 |
9 | COWL LATCH ASSEMBLY | 8M0063135 |
9 | COWL LATCH ASSEMBLY | 8M0063135 |
10 | COLLAR | 95286 8 |
11 | SCREW, (M6 x 16) | 824832 4 |
12 | BOLT, (M6 x 16) | 16832 |
13 | WASHER | 953921 |
14 | COLLAR | 95286 11 |
15 | DECAL, Fuel Lever | 896851009 |
16 | DECAL, Oil Lever | 896851013 |
17 | DECAL, Shift (N-R) | 896851012 |
18 | BUSHING | 898101373 |
19 | SAFETY ROPE | 16230 |
20 | DECAL, Notice This Side Up | 896851010 |
21 | TOOL KIT | 803581 |
22 | FLUSHING ATTACHMENT | 16841Q02 |
- | DECAL, Start Procedure | 896851014 |
1 | TOP COWL ASSEMBLY, Mercury | 898103T78 |
1 | TOP COWL ASSEMBLY, Black, no decals | 8M0130974 |
1 | TOP COWL ASSEMBLY, Mariner | 898103T80 |
1 | TOP COWL ASSEMBLY, Silver, no decals | 8M0058617 |
2 | SEAL, Cowl | 898101348 |
2 | SEAL | 8M0072631 |
3 | HANDLE, Tilt Mercury | 898103T77 |
3 | HANDLE, Tilt Mariner | 898103T79 |
4 | WASHER, Stainless Steel | 879194338 |
5 | LOCKWASHER, (M6) | 40025 6 |
6 | NUT | 853722022 |
- | DECAL SET, Mercury 3.5 | 816013A06 |
- | DECAL SET, Mercury 2.5 | 896851A06 |
- | DECAL SET, Mercury 2 | 816014A06 |
- | DECAL SET, Mercury, 2, 2.5, 3.5 | 8M0072620 |
- | DECAL SET, Mercury Top Cowl | 8M0081455 |
- | DECAL, M-icon | 8M0050645 |
- | DECAL SET, Mercury, Lower Cowl | 8M0081456 |
- | DECAL, Horsepower 2 | 8M0073668 |
- | DECAL, Horsepower 2.5 | 8M0073669 |
- | DECAL, Horsepower 3.5 | 8M0073670 |
- | DECAL SET, Mariner 3.5 | 889246T15 |
- | DECAL SET, Mariner 2.5 | 889246T13 |
- | DECAL SET, Mariner, 2.5-3.5 | 8M0072621 |
7 | BOTTOM COWL | 898103T76 |
8 | NOT SOLD SEPARATE, Decal-Spark Plug | NSS |
9 | COWL LATCH ASSEMBLY | 8M0063135 |
9 | COWL LATCH ASSEMBLY | 8M0063135 |
9 | COWL LATCH ASSEMBLY | 8M0063135 |
10 | COLLAR | 95286 8 |
11 | SCREW, (M6 x 16) | 824832 4 |
12 | BOLT, (M6 x 16) | 16832 |
13 | WASHER | 953921 |
14 | COLLAR | 95286 11 |
15 | DECAL, Fuel Lever | 896851009 |
16 | DECAL, Oil Lever | 896851013 |
17 | DECAL, Shift (N-R) | 896851012 |
18 | BUSHING | 898101373 |
19 | SAFETY ROPE | 16230 |
20 | DECAL, Notice This Side Up | 896851010 |
21 | TOOL KIT | 803581 |
22 | FLUSHING ATTACHMENT | 16841Q02 |
- | DECAL, Start Procedure | 896851014 |
Quick Overview
DECAL-REAR 2 37
SKU : 8M0073668
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061920309
