MERCURY 8M0075782 Gear Housing Assembly, Complete, Long

Write a Review
$9,742.86
SKU:
8M0075782
Schematic Object Key:
-

MERCURY 8M0075782 Gear Housing Assembly, Complete, Long

$9,742.86

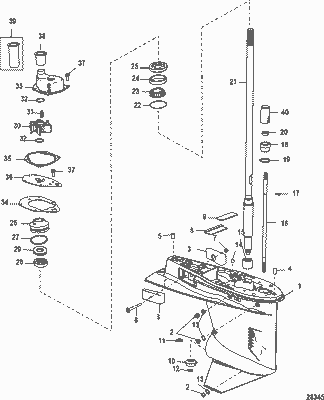

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 8M0075782 Gear Housing Assembly, Complete, Long

Schematic Object Key : -

Product Description : MERCURY 8M0075782 Gear Housing Assembly, Complete, Long

Product Category : 225 PRO XS (3.0L DFI)/ 1B752547 & Up/Gear Housing, Prop Shaft, Torque Master 2, Sn-1B9

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY, Complete, Long 8M0075782
1 GEAR HOUSING ASSEMBLY, Basic 8M0075791
2 NOT SOLD SEPARATE, Plug NSS
3 CRANK, Shifter, 1/4 Pivot Pin 8M0046215
4 SPOOL ASSEMBLY 19755T 7
5 NOT SOLD SEPARATE, Spool NSS
6 COTTER PIN 46950 1
7 NOT SOLD SEPARATE, Sleeve Adjusting NSS
8 GEAR SET, Forward/Pinion 892595A04
9 SHIM SET 884328A01
10 BEARING ASSEMBLY, Roller 884323T01
11 NOT SOLD SEPARATE, Cup NSS
12 RETAINING RING 8M0051043
13 THRUST WASHER 8M0053823
14 BEARING ASSEMBLY, Roller-Tappered 884325T01
15 NOT SOLD SEPARATE, Cup NSS
16 CLUTCH 880714T01
17 SPRING 30893
18 PIN, Detent 828356
19 PROPELLER SHAFT 8M0140443
20 PIN, Cross 8M0100263
21 GEAR, Reverse 8M0118363
22 THRUST RING 880699
23 SPACER 8M0064306
24 CARRIER ASSEMBLY, Bearing 8M0075827
25 SHIM SET 8M0076745
25 WASHER, .020 8M0050423
25 WASHER, .022 8M0050424
25 WASHER, .024 8M0050425
25 WASHER, .026 8M0050427
25 WASHER, .028 8M0050428
25 WASHER, .030 8M0050429
25 WASHER, .032 8M0050430
25 WASHER, .034 8M0050431
25 WASHER, .036 8M0050432
25 WASHER, .038 8M0050433
25 WASHER, .040 8M0050434
25 WASHER, .042 8M0050435
25 WASHER, .044 8M0050436
25 WASHER, .046 8M0050437
25 WASHER, .048 8M0050438
25 WASHER, .050 8M0050439
26 BEARING, Ball 8M0142873
27 SEAL, Oil 888483
28 BEARING ASSEMBLY, Tapered 8M0148319
29 NOT SOLD SEPARATE, Cup NSS
30 SEAL, Oil 888483
31 O-RING, (3.850 x .210) 896524
32 SCREW/SEAL KIT, .38 Inch Long 880717A01
32 SCREW/SEAL KIT, .75 Inch Long 8M0077071
33 SEAL 830749
34 WASHER, Tab 8M0056265
35 RETAINER 8M2011027
- SEAL KIT, Gear Housing 8M0077244
- REPAIR KIT, Water Pump-Upper 817275A08
- GEAR HOUSING ASSEMBLY, Complete, Long 8M0075782
1 GEAR HOUSING ASSEMBLY, Basic 8M0075791
2 NOT SOLD SEPARATE, Plug NSS
3 CRANK, Shifter, 1/4 Pivot Pin 8M0046215
4 SPOOL ASSEMBLY 19755T 7
5 NOT SOLD SEPARATE, Spool NSS
6 COTTER PIN 46950 1
7 NOT SOLD SEPARATE, Sleeve Adjusting NSS
8 GEAR SET, Forward/Pinion 892595A04
9 SHIM SET 884328A01
10 BEARING ASSEMBLY, Roller 884323T01
11 NOT SOLD SEPARATE, Cup NSS
12 RETAINING RING 8M0051043
13 THRUST WASHER 8M0053823
14 BEARING ASSEMBLY, Roller-Tappered 884325T01
15 NOT SOLD SEPARATE, Cup NSS
16 CLUTCH 880714T01
17 SPRING 30893
18 PIN, Detent 828356
19 PROPELLER SHAFT 8M0140443
20 PIN, Cross 8M0100263
21 GEAR, Reverse 8M0118363
22 THRUST RING 880699
23 SPACER 8M0064306
24 CARRIER ASSEMBLY, Bearing 8M0075827
25 SHIM SET 8M0076745
25 WASHER, .020 8M0050423
25 WASHER, .022 8M0050424
25 WASHER, .024 8M0050425
25 WASHER, .026 8M0050427
25 WASHER, .028 8M0050428
25 WASHER, .030 8M0050429
25 WASHER, .032 8M0050430
25 WASHER, .034 8M0050431
25 WASHER, .036 8M0050432
25 WASHER, .038 8M0050433
25 WASHER, .040 8M0050434
25 WASHER, .042 8M0050435
25 WASHER, .044 8M0050436
25 WASHER, .046 8M0050437
25 WASHER, .048 8M0050438
25 WASHER, .050 8M0050439
26 BEARING, Ball 8M0142873
27 SEAL, Oil 888483
28 BEARING ASSEMBLY, Tapered 8M0148319
29 NOT SOLD SEPARATE, Cup NSS
30 SEAL, Oil 888483
31 O-RING, (3.850 x .210) 896524
32 SCREW/SEAL KIT, .38 Inch Long 880717A01
32 SCREW/SEAL KIT, .75 Inch Long 8M0077071
33 SEAL 830749
34 WASHER, Tab 8M0056265
35 RETAINER 8M2011027
- SEAL KIT, Gear Housing 8M0077244
- REPAIR KIT, Water Pump-Upper 817275A08
