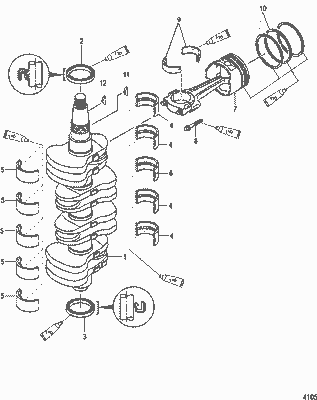

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 10
Product Description : MERCURY 8M0080349 Ring Set, Piston
Product Category : 40 (International)/ 0N056165 & Up/ Crankshaft, Piston And Connecting Rods
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | CRANKSHAFT ASSEMBLY | 8M0046560 |
2 | BEARING, Ball | 16049T02 |
3 | GEAR, Drive | 855552 |
4 | C CLIP | 853714 |
5 | PIN, Piston | 880810 |
6 | CONNECTING ROD | 880855 |
7 | BEARING, Needle | 880856 |
8 | WASHER | 880857 |
- | PISTON ASSEMBLY | 8M0082176 |
- | PISTON ASSEMBLY | 8M0082177 |
9 | PISTON | 9615T02 |
9 | PISTON | 9616 2 |
10 | RING SET, Piston | 16054A 5 |
10 | RING SET, Piston | 8M0080349 |
10 | RING SET, Piston | 16055A 5 |
10 | RING SET, Piston | 8M0080348 |
11 | PIN, Piston | 803680003 |
12 | CLIP | 16057 1 |
13 | THRUST RING | 853712 |
14 | KEY | 16053 1 |
15 | BEARING, Main (Upper) | 855553 |
16 | SEAL, Oil | 803879 |
17 | O-RING | 855554004 |
18 | BEARING, Needle | 813048 3 |
- | POWERHEAD ASSEMBLY | 8M0146290 |
- | POWERHEAD ASSEMBLY | 8M0147022 |
- | GASKET SET, Powerhead | 8M0081614 |
1 | CRANKSHAFT ASSEMBLY | 8M0046560 |
2 | BEARING, Ball | 16049T02 |
3 | GEAR, Drive | 855552 |
4 | C CLIP | 853714 |
5 | PIN, Piston | 880810 |
6 | CONNECTING ROD | 880855 |
7 | BEARING, Needle | 880856 |
8 | WASHER | 880857 |
- | PISTON ASSEMBLY | 8M0082176 |
- | PISTON ASSEMBLY | 8M0082177 |
9 | PISTON | 9615T02 |
9 | PISTON | 9616 2 |
10 | RING SET, Piston | 16054A 5 |
10 | RING SET, Piston | 8M0080349 |
10 | RING SET, Piston | 16055A 5 |
10 | RING SET, Piston | 8M0080348 |
11 | PIN, Piston | 803680003 |
12 | CLIP | 16057 1 |
13 | THRUST RING | 853712 |
14 | KEY | 16053 1 |
15 | BEARING, Main (Upper) | 855553 |
16 | SEAL, Oil | 803879 |
17 | O-RING | 855554004 |
18 | BEARING, Needle | 813048 3 |
- | POWERHEAD ASSEMBLY | 8M0146290 |
- | POWERHEAD ASSEMBLY | 8M0147022 |
- | GASKET SET, Powerhead | 8M0081614 |
Quick Overview
PISTON RING SET 39
SKU : 8M0080349
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061927285
