MERCURY 8M0084506 Hose, Fuel Inlet , Fuel Inlet To Fuel Supply Module

Write a Review
$50.17
SKU:
8M0084506
Schematic Object Key:
26

MERCURY 8M0084506 Hose, Fuel Inlet , Fuel Inlet To Fuel Supply Module

$50.17

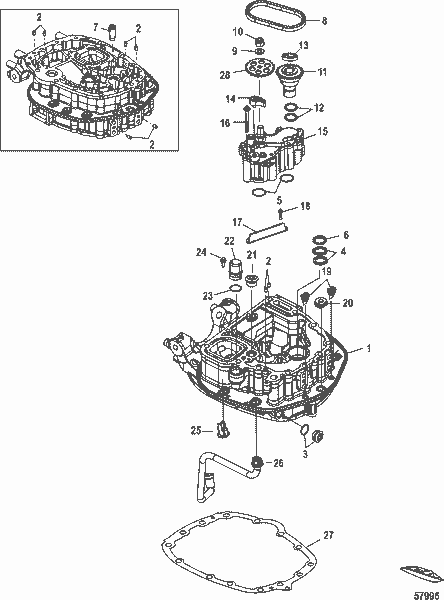

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 8M0084506 Hose, Fuel Inlet , Fuel Inlet To Fuel Supply Module

Schematic Object Key : 26

Product Description : MERCURY 8M0084506 Hose, Fuel Inlet , Fuel Inlet To Fuel Supply Module

Product Category : 400 VERADO (4-Stroke)(6 CYL.)/ 2B141124 & Up/ Oil Pump\Adaptor Plate-Upper

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 ADAPTOR PLATE KIT 892126A03
2 PIN, Dowel 892228
3 PLUG, (24 mm) 896951
4 SEAL, Water 884462
5 O-RING 887930
6 SEAL, Oil 8M0033928
7 VALVE ASSEMBLY, Oil Pump 8M0034048
8 CHAIN, Oil Pump Drive, Oil Pump Drive 8M6002692
9 WASHER 892491
10 NUT 892165
11 DRIVESHAFT, Oil Pump 884458T07
12 O-RING, 3.78 X 21.32 8M0034912
13 INSERT, Plastic 895063001
14 TENSIONER ASSEMBLY, Oil Pump Drive 884418A 1
15 PUMP ASSEMBLY, Oil 884446T04
16 SCREW 892455065
17 DEFLECTOR, Oil 892335001
18 SCREW, (M6 x 16 MM) Stainless Steel 8M0103805
19 DRAIN, Cowl 888819002
20 GROMMET 888163
21 PLUG, (M18 x 1.5) 8M0027347
22 FITTING, Dump 8M0092321
23 O-RING 8M0092943
24 SCREW, (M6 x 12 MM) Stainless Steel 8M0103804
25 PLUG, Panel 8M0088815
26 HOSE, Fuel Inlet , Fuel inlet to Fuel Supply Module 8M0084506
27 GASKET 889617001
28 SPROCKET, Driven 884456
- GASKET SET, Powerhead 880552A08
- LONG BLOCK ASSEMBLY 896966A06
1 ADAPTOR PLATE KIT 892126A03
2 PIN, Dowel 892228
3 PLUG, (24 mm) 896951
4 SEAL, Water 884462
5 O-RING 887930
6 SEAL, Oil 8M0033928
7 VALVE ASSEMBLY, Oil Pump 8M0034048
8 CHAIN, Oil Pump Drive, Oil Pump Drive 8M6002692
9 WASHER 892491
10 NUT 892165
11 DRIVESHAFT, Oil Pump 884458T07
12 O-RING, 3.78 X 21.32 8M0034912
13 INSERT, Plastic 895063001
14 TENSIONER ASSEMBLY, Oil Pump Drive 884418A 1
15 PUMP ASSEMBLY, Oil 884446T04
16 SCREW 892455065
17 DEFLECTOR, Oil 892335001
18 SCREW, (M6 x 16 MM) Stainless Steel 8M0103805
19 DRAIN, Cowl 888819002
20 GROMMET 888163
21 PLUG, (M18 x 1.5) 8M0027347
22 FITTING, Dump 8M0092321
23 O-RING 8M0092943
24 SCREW, (M6 x 12 MM) Stainless Steel 8M0103804
25 PLUG, Panel 8M0088815
26 HOSE, Fuel Inlet , Fuel inlet to Fuel Supply Module 8M0084506
27 GASKET 889617001
28 SPROCKET, Driven 884456
- GASKET SET, Powerhead 880552A08
- LONG BLOCK ASSEMBLY 896966A06



Quick Overview

HOSE-FUEL IN FSM 32

SKU : 8M0084506

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061950214
