MERCURY 8M0088075 Gearcase , Complete Ct Xl

Write a Review
$4,321.43
SKU:
8M0088075

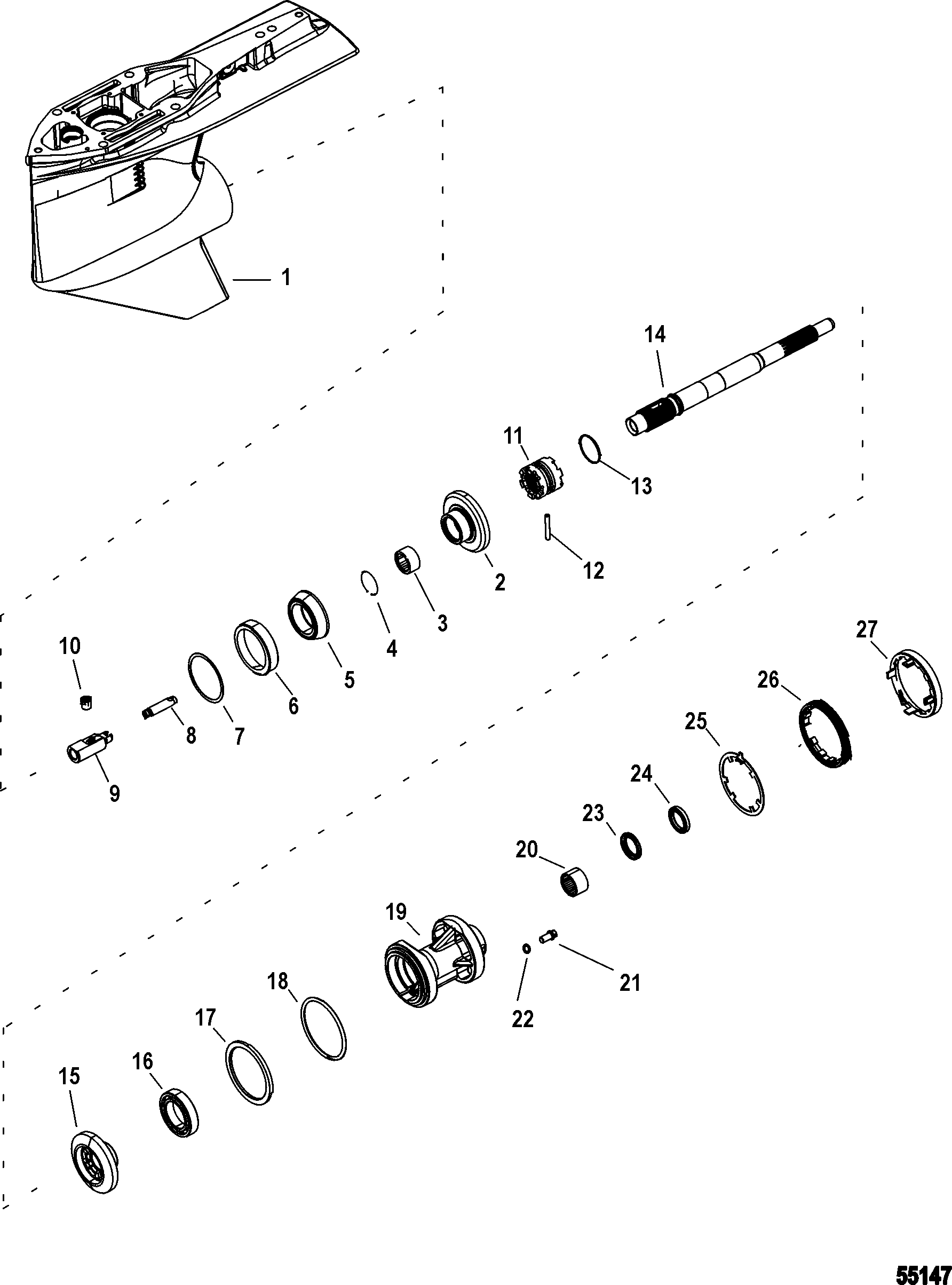

Schematic Object Key:
-

MERCURY 8M0088075 Gearcase , Complete Ct Xl

$4,321.43

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 8M0088075 Gearcase , Complete Ct Xl

Schematic Object Key : -

Product Description : MERCURY 8M0088075 Gearcase , Complete Ct Xl

Product Category : 80 EFI (4-STROKE)/ 2B095049 & Up/Gear Housing, Propeller Shaft, 2.38:1 Standard Ro

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEARCASE , Complete CT L 8M0088073
- GEARCASE , Complete CT XL 8M0088075
- GEARCASE HOUSING ASSY, Complete, CT L 8M0099915
- GEARCASE HOUSING ASSY, Complete, CT XL 8M0099916
1 GEARCASE HOUSING ASSY, Basic 8M0057747
1 GEARCASE HOUSING ASSY, Basic 8M0099907
2 GEAR SET, FORWARD/PINION (31T LH) 8M0094483
3 BEARING, Needle 8M0057742
4 RING, Retaining 8M0029306
5 BEARING ASSY, ROLLER, TAPERED 8M0057724
6 NOT SOLD SEPARATE, Cup NSS
7 SHIM SET 8M0063269
8 ROD, Clutch Actuator 8M0057749
9 FOLLOWER , Cam (RH) 8M0072550
10 CAM, Shift 8M0077490
11 CLUTCH , Sliding, 6 Jaw 8M0094479
12 PIN, Cross 8M0045759
13 SPRING, Retaining 8M0047945
14 SHAFT-PROPELLER (RH) 8M0088077
15 GEAR, REVERSE 31T 8M0094481
16 BEARING 860081
17 THRUST RING 8M0030779
18 O-RING, 3.975X.210 8M0030845
19 SPOOL, Bearing Carrier 8M0098463
19 SPOOL, Bearing Carrier 8M0098463
20 BEARING, Needle 30956T
21 SCREW, Special 8M0071653
22 SEAL 830749
23 SEAL, Oil 14077
24 SEAL 76868
24 SEAL, Fish Line Cutting 12224
25 WASHER, Keyed 8M0030784
26 RETAINER BEARING CARRIER 8M0141332
27 SLEEVE, Propeller Bore 8M0054695
- SKEG 8M0060147
- GEARCASE SEAL KIT 8M0088081
- GEARCASE , Complete CT L 8M0088073
- GEARCASE , Complete CT XL 8M0088075
- GEARCASE HOUSING ASSY, Complete, CT L 8M0099915
- GEARCASE HOUSING ASSY, Complete, CT XL 8M0099916
1 GEARCASE HOUSING ASSY, Basic 8M0057747
1 GEARCASE HOUSING ASSY, Basic 8M0099907
2 GEAR SET, FORWARD/PINION (31T LH) 8M0094483
3 BEARING, Needle 8M0057742
4 RING, Retaining 8M0029306
5 BEARING ASSY, ROLLER, TAPERED 8M0057724
6 NOT SOLD SEPARATE, Cup NSS
7 SHIM SET 8M0063269
8 ROD, Clutch Actuator 8M0057749
9 FOLLOWER , Cam (RH) 8M0072550
10 CAM, Shift 8M0077490
11 CLUTCH , Sliding, 6 Jaw 8M0094479
12 PIN, Cross 8M0045759
13 SPRING, Retaining 8M0047945
14 SHAFT-PROPELLER (RH) 8M0088077
15 GEAR, REVERSE 31T 8M0094481
16 BEARING 860081
17 THRUST RING 8M0030779
18 O-RING, 3.975X.210 8M0030845
19 SPOOL, Bearing Carrier 8M0098463
19 SPOOL, Bearing Carrier 8M0098463
20 BEARING, Needle 30956T
21 SCREW, Special 8M0071653
22 SEAL 830749
23 SEAL, Oil 14077
24 SEAL 76868
24 SEAL, Fish Line Cutting 12224
25 WASHER, Keyed 8M0030784
26 RETAINER BEARING CARRIER 8M0141332
27 SLEEVE, Propeller Bore 8M0054695
- SKEG 8M0060147
- GEARCASE SEAL KIT 8M0088081



Quick Overview

G/C X-LONG CT 1600

SKU : 8M0088075

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061931299
