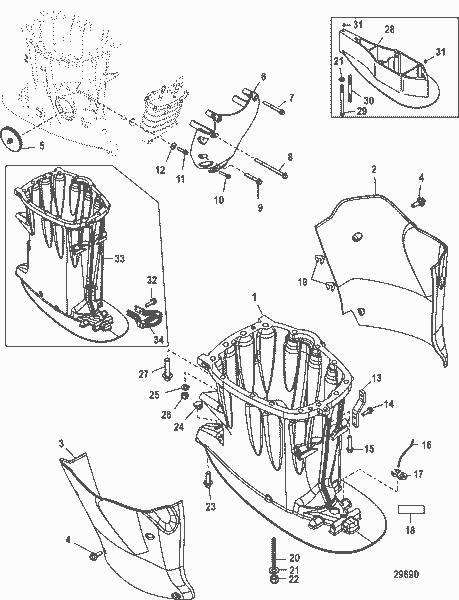

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : -
Product Description : MERCURY 8M0090483 Chap Assembly, X-Long/Xx-Long - Port And Starboard, Cold White
Product Category : 300 VERADO (4-STROKE)(6 CYL.)/ 1B517434 THRU 2B144122/ Driveshaft Housing
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | HOUSING, Driveshaft, Black | 8M0113286 |
1 | HOUSING, Driveshaft, Silver Tipped | 8M0103294 |
- | CHAP ASSEMBLY, Long - Port and Starboard, Black | 885365T03 |
- | CHAP ASSEMBLY, Long - Port and Starboard, Cold White | 8M0090481 |
- | CHAP ASSEMBLY, Long - Port and Starboard, Warm White | 8M0090482 |
- | CHAP ASSEMBLY, X-Long/XX-Long - Port and Starboard | 885363T04 |
- | CHAP ASSEMBLY, X-Long/XX-Long - Port and Starboard, Cold White | 8M0090483 |
- | CHAP ASSEMBLY, X-Long/XX-Long - Port and Starboard, Warm White | 8M0090484 |
2 | NOT SOLD SEPARATE, CHAP, Lower-Port | NSS |
2 | NOT SOLD SEPARATE, CHAP, Lower-Port | NSS |
3 | NOT SOLD SEPARATE, CHAP, Lower-Stbd | NSS |
3 | NOT SOLD SEPARATE, CHAP, Lower-Stbd | NSS |
4 | SHOULDER SCREW, (M6) | 892073002 |
5 | GROMMET | 889568001 |
6 | SHROUD | 889656T01 |
7 | SCREW, (M8 x 75) | 8M0103818 |
8 | SCREW, (M8 x 120) | 8M0103812 |
9 | SCREW, (M8 x 50) | 8M0103816 |
10 | SCREW, (M8 x 40) | 8M0103815 |
11 | SCREW, (M8 x 35 MM) | 8M0103814 |
12 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 817274 |
13 | BRACKET KIT, Upper Chap | 897784A01 |
14 | SCREW, (M6 x 20 MM) Stainless Steel | 8M0103806 |
15 | SCREW, (M8 x 30) | 8M0103813 |
16 | TUBING, (72.00 Inches Bulk), Cut to 44 Inches) | 859449 75 |
17 | RETAINER | 889831001 |
18 | NOT SOLD SEPARATE, Decal-Oil Drain | NSS |
19 | CLIP (Replaces O-Rings) | 898033 |
20 | STUD, (M12 x 52) | 8M0008031 |
21 | WASHER, (.500 x .810 x .090) Stainless Steel | 856982 |
22 | NUT, (M12) | 896895 |
23 | SCREW, (M12 x 35 MM) | 8M0102995 |
24 | PLUG, Rubber | 824928001 |
25 | WASHER, (.406 x .750 x .105) Stainless Steel | 856774 |
26 | NUT | 884412 |
27 | SCREW, (M12 x 45) | 8M0103825 |
28 | SPACER, Black | 8M0105088 |
28 | SPACER, Driveshaft Housing X-Long, Silver | 8M0105091 |
29 | SCREW, (M12 x 160) | 857137 |
30 | STUD, (M12 x 179) | 8M0008047 |
31 | PIN, Dowel - Without Hole (.375 x .625) | 43044 |
32 | SCREW, (M6 x 20 MM) Stainless Steel | 8M0103806 |
33 | HOUSING, Driveshaft, Black | 8M0113287 |
33 | HOUSING, Driveshaft, Silver Tipped | 8M0146469 |
34 | BRACKET, Cowl | 891966006 |
- | POWERHEAD ASSEMBLY | 895247A07 |
1 | HOUSING, Driveshaft, Black | 8M0113286 |
1 | HOUSING, Driveshaft, Silver Tipped | 8M0103294 |
- | CHAP ASSEMBLY, Long - Port and Starboard, Black | 885365T03 |
- | CHAP ASSEMBLY, Long - Port and Starboard, Cold White | 8M0090481 |
- | CHAP ASSEMBLY, Long - Port and Starboard, Warm White | 8M0090482 |
- | CHAP ASSEMBLY, X-Long/XX-Long - Port and Starboard | 885363T04 |
- | CHAP ASSEMBLY, X-Long/XX-Long - Port and Starboard, Cold White | 8M0090483 |
- | CHAP ASSEMBLY, X-Long/XX-Long - Port and Starboard, Warm White | 8M0090484 |
2 | NOT SOLD SEPARATE, CHAP, Lower-Port | NSS |
2 | NOT SOLD SEPARATE, CHAP, Lower-Port | NSS |
3 | NOT SOLD SEPARATE, CHAP, Lower-Stbd | NSS |
3 | NOT SOLD SEPARATE, CHAP, Lower-Stbd | NSS |
4 | SHOULDER SCREW, (M6) | 892073002 |
5 | GROMMET | 889568001 |
6 | SHROUD | 889656T01 |
7 | SCREW, (M8 x 75) | 8M0103818 |
8 | SCREW, (M8 x 120) | 8M0103812 |
9 | SCREW, (M8 x 50) | 8M0103816 |
10 | SCREW, (M8 x 40) | 8M0103815 |
11 | SCREW, (M8 x 35 MM) | 8M0103814 |
12 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 817274 |
13 | BRACKET KIT, Upper Chap | 897784A01 |
14 | SCREW, (M6 x 20 MM) Stainless Steel | 8M0103806 |
15 | SCREW, (M8 x 30) | 8M0103813 |
16 | TUBING, (72.00 Inches Bulk), Cut to 44 Inches) | 859449 75 |
17 | RETAINER | 889831001 |
18 | NOT SOLD SEPARATE, Decal-Oil Drain | NSS |
19 | CLIP (Replaces O-Rings) | 898033 |
20 | STUD, (M12 x 52) | 8M0008031 |
21 | WASHER, (.500 x .810 x .090) Stainless Steel | 856982 |
22 | NUT, (M12) | 896895 |
23 | SCREW, (M12 x 35 MM) | 8M0102995 |
24 | PLUG, Rubber | 824928001 |
25 | WASHER, (.406 x .750 x .105) Stainless Steel | 856774 |
26 | NUT | 884412 |
27 | SCREW, (M12 x 45) | 8M0103825 |
28 | SPACER, Black | 8M0105088 |
28 | SPACER, Driveshaft Housing X-Long, Silver | 8M0105091 |
29 | SCREW, (M12 x 160) | 857137 |
30 | STUD, (M12 x 179) | 8M0008047 |
31 | PIN, Dowel - Without Hole (.375 x .625) | 43044 |
32 | SCREW, (M6 x 20 MM) Stainless Steel | 8M0103806 |
33 | HOUSING, Driveshaft, Black | 8M0113287 |
33 | HOUSING, Driveshaft, Silver Tipped | 8M0146469 |
34 | BRACKET, Cowl | 891966006 |
- | POWERHEAD ASSEMBLY | 895247A07 |
