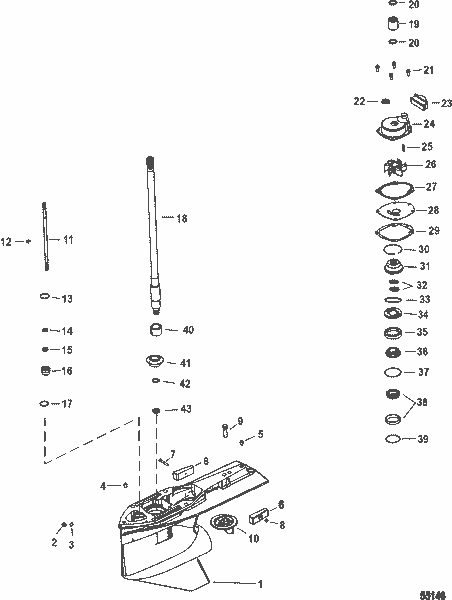

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 40
Product Description : MERCURY 8M0090828 Bearing , Needle Roller
Product Category : 80 EFI (4-STROKE)/ 2B095049 & Up/Gear Housing, Driveshaft, 2.07:1 Standard Rotatio
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
- | GEARCASE , Complete L | 8M0088072 |
- | GEARCASE, Complete XL | 8M0088074 |
1 | GEARCASE, Basic | 8M0091538 |
1 | GEARCASE HOUSING ASSY, Basic | 8M0099907 |
2 | PLUG ASSEMBLY, (.375-16 x .250) | 79953A04 |
3 | SEAL | 830749 |
4 | PIN, Dowel | 8M0084244 |
5 | PIN, Dowel - Without Hole (.375 x .625) | 43044 |
6 | ANODE | 826134Q |
7 | SCREW, (M6 x 40) | 40003 33 |
8 | NUT, (M6) Stainless Steel | 40138 6 |
9 | SCREW, (.437-14 x 1.750) | 806327 |
10 | TRIM TAB , Anodic | 8M0091534 |
11 | SHIFT SHAFT, Lower, Long | 8M0069658 |
11 | SHIFT SHAFT, X-Long | 8M0053078 |
12 | E RING | 29641 |
13 | RING, Retaining | 8M0029306 |
14 | WASHER | 77674 |
15 | SEAL, Oil | 816464 1 |
16 | BUSHING ASSEMBLY | 813696A 2 |
17 | O-RING, (.987 x .103) | 45258 |
18 | DRIVESHAFT , Long | 8M0090831 |
18 | DRIVESHAFT, X-LONG | 8M0056711 |
19 | COUPLING, Water Pump | 8M0036238 |
20 | O-RING, (.796 x .139) | 21836 |
21 | SCREW, (M6 x 20) | 19937 20 |
22 | SEAL, Face | 8M0142851 |
23 | FILLER BLOCK | 8M0010459 |
24 | HOUSING, Water Pump-Complete | 817275 2 |
25 | KEY | 8M0032833 |
26 | IMPELLER | 43026T 2 |
27 | GASKET | 817277 1 |
28 | FACEPLATE | 817276 1 |
29 | GASKET | 8M0112903 |
30 | RING, Retaining | 880719 |
31 | OIL SEAL CARRIER ASSY | 8M0057748 |
32 | SEAL, Oil | 89238 |
33 | O-RING, (2.175 x .103) | 896523 |
34 | RETAINER | 853651 |
35 | BEARING ASSEMBLY, Tapered Roller | 33138A 1 |
36 | NOT SOLD SEPARATE | NSS |
37 | SHIM SET | 8M0063267 |
38 | BEARING ASSEMBLY, Roller | 77420A 1 |
39 | SHIM SET | 8M0063268 |
40 | BEARING , Needle Roller | 8M0090828 |
41 | NOT SOLD SEPARATE | NSS |
42 | WASHER | 92721 |
43 | NUT, .625-18 HX | 8M0071654 |
- | SKEG | 8M0090442 |
- | COMPLETE WATER PUMP REPAIR KIT | 8M0094529 |
- | REPAIR KIT, Water Pump Impeller | 8M0094530 |
- | GEARCASE SEAL KIT | 8M0088080 |
- | REPAIR KIT, Water Pump-Upper | 8M0061040 |
- | GEARCASE , Complete L | 8M0088072 |
- | GEARCASE, Complete XL | 8M0088074 |
1 | GEARCASE, Basic | 8M0091538 |
1 | GEARCASE HOUSING ASSY, Basic | 8M0099907 |
2 | PLUG ASSEMBLY, (.375-16 x .250) | 79953A04 |
3 | SEAL | 830749 |
4 | PIN, Dowel | 8M0084244 |
5 | PIN, Dowel - Without Hole (.375 x .625) | 43044 |
6 | ANODE | 826134Q |
7 | SCREW, (M6 x 40) | 40003 33 |
8 | NUT, (M6) Stainless Steel | 40138 6 |
9 | SCREW, (.437-14 x 1.750) | 806327 |
10 | TRIM TAB , Anodic | 8M0091534 |
11 | SHIFT SHAFT, Lower, Long | 8M0069658 |
11 | SHIFT SHAFT, X-Long | 8M0053078 |
12 | E RING | 29641 |
13 | RING, Retaining | 8M0029306 |
14 | WASHER | 77674 |
15 | SEAL, Oil | 816464 1 |
16 | BUSHING ASSEMBLY | 813696A 2 |
17 | O-RING, (.987 x .103) | 45258 |
18 | DRIVESHAFT , Long | 8M0090831 |
18 | DRIVESHAFT, X-LONG | 8M0056711 |
19 | COUPLING, Water Pump | 8M0036238 |
20 | O-RING, (.796 x .139) | 21836 |
21 | SCREW, (M6 x 20) | 19937 20 |
22 | SEAL, Face | 8M0142851 |
23 | FILLER BLOCK | 8M0010459 |
24 | HOUSING, Water Pump-Complete | 817275 2 |
25 | KEY | 8M0032833 |
26 | IMPELLER | 43026T 2 |
27 | GASKET | 817277 1 |
28 | FACEPLATE | 817276 1 |
29 | GASKET | 8M0112903 |
30 | RING, Retaining | 880719 |
31 | OIL SEAL CARRIER ASSY | 8M0057748 |
32 | SEAL, Oil | 89238 |
33 | O-RING, (2.175 x .103) | 896523 |
34 | RETAINER | 853651 |
35 | BEARING ASSEMBLY, Tapered Roller | 33138A 1 |
36 | NOT SOLD SEPARATE | NSS |
37 | SHIM SET | 8M0063267 |
38 | BEARING ASSEMBLY, Roller | 77420A 1 |
39 | SHIM SET | 8M0063268 |
40 | BEARING , Needle Roller | 8M0090828 |
41 | NOT SOLD SEPARATE | NSS |
42 | WASHER | 92721 |
43 | NUT, .625-18 HX | 8M0071654 |
- | SKEG | 8M0090442 |
- | COMPLETE WATER PUMP REPAIR KIT | 8M0094529 |
- | REPAIR KIT, Water Pump Impeller | 8M0094530 |
- | GEARCASE SEAL KIT | 8M0088080 |
- | REPAIR KIT, Water Pump-Upper | 8M0061040 |
Quick Overview
BEARING NEEDLE RO 31
SKU : 8M0090828
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061934511
