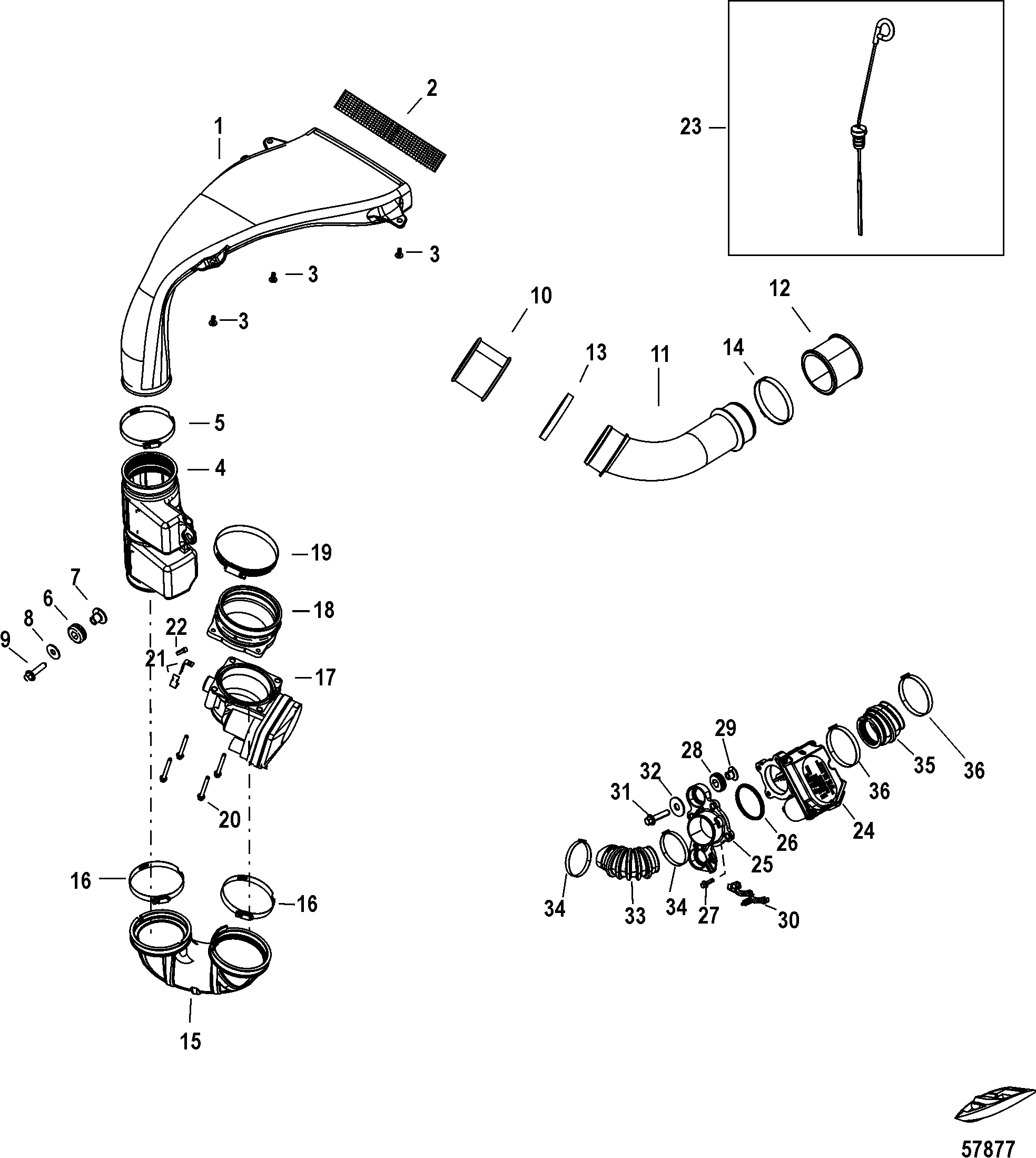

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 11
Product Description : MERCURY 8M0095505 Tube, Cac
Product Category : 400 VERADO (4-Stroke)(6 CYL.)/ 2B141124 & Up/ Induction Components
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | INTAKE ASSEMLY, Duct | 8M0103295 |
2 | SCREEN, Upper Intake | 8M0103362 |
3 | SCREW | 8M6003202 |
4 | INTAKE ASSEMBLY, Lower | 8M0103291 |
5 | CLAMP, Inlet to Resonator | 8M6003032 |
6 | GROMMET | 834985 1 |
7 | BUSHING | 856954 |
8 | WASHER, (.265 x .750 x .048) Stainless Steel | 65567 |
9 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
- | TUBE ASSEMBLY, Hot Air Duct | 8M0103293 |
10 | HOSE, CAC Tube | 8M0095507 |
11 | TUBE, CAC | 8M0095505 |
12 | HOSE, CAC Tube | 8M0095506 |
13 | CLAMP, Oetiker | 888988021 |
14 | CLAMP | 8M6003214 |
15 | DUCT, Inlet | 8M0089697 |
16 | CLAMP, (96.5 mm) | 888988016 |
17 | CONTROL ASSEMBLY, Throttle - Electronic | 8M0113515 |
18 | ISOLATOR | 8M0113513 |
19 | CLAMP, Worm Gear | 815504256 |
20 | SCREW, (M6 x 50 MM) Stainless Steel | 885525 50 |
21 | BRACKET | 884353 |
22 | TIE STRAP, (8.00 Inches) | 816311T |
23 | DIPSTICK, Oil | 898022 |
24 | VALVE KIT, Control - Electric Boost | 884408A08 |
25 | PLATE, Boost Valve Mounting | 887939007 |
26 | O-RING | 892079 |
27 | SCREW, (M6 x 20 MM) Stainless Steel | 8M0103806 |
28 | GROMMET | 833155 |
29 | BUSHING | 850234 1 |
30 | CLIP | 859376 |
31 | SCREW, (M8 x 35 MM) | 8M0103814 |
32 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 817274 |
33 | HOSE | 887937006 |
34 | CLAMP, (57.5 mm) | 888988002 |
35 | TUBE, Rear | 887938003 |
36 | CLAMP, (62.0 mm) | 888988004 |
1 | INTAKE ASSEMLY, Duct | 8M0103295 |
2 | SCREEN, Upper Intake | 8M0103362 |
3 | SCREW | 8M6003202 |
4 | INTAKE ASSEMBLY, Lower | 8M0103291 |
5 | CLAMP, Inlet to Resonator | 8M6003032 |
6 | GROMMET | 834985 1 |
7 | BUSHING | 856954 |
8 | WASHER, (.265 x .750 x .048) Stainless Steel | 65567 |
9 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
- | TUBE ASSEMBLY, Hot Air Duct | 8M0103293 |
10 | HOSE, CAC Tube | 8M0095507 |
11 | TUBE, CAC | 8M0095505 |
12 | HOSE, CAC Tube | 8M0095506 |
13 | CLAMP, Oetiker | 888988021 |
14 | CLAMP | 8M6003214 |
15 | DUCT, Inlet | 8M0089697 |
16 | CLAMP, (96.5 mm) | 888988016 |
17 | CONTROL ASSEMBLY, Throttle - Electronic | 8M0113515 |
18 | ISOLATOR | 8M0113513 |
19 | CLAMP, Worm Gear | 815504256 |
20 | SCREW, (M6 x 50 MM) Stainless Steel | 885525 50 |
21 | BRACKET | 884353 |
22 | TIE STRAP, (8.00 Inches) | 816311T |
23 | DIPSTICK, Oil | 898022 |
24 | VALVE KIT, Control - Electric Boost | 884408A08 |
25 | PLATE, Boost Valve Mounting | 887939007 |
26 | O-RING | 892079 |
27 | SCREW, (M6 x 20 MM) Stainless Steel | 8M0103806 |
28 | GROMMET | 833155 |
29 | BUSHING | 850234 1 |
30 | CLIP | 859376 |
31 | SCREW, (M8 x 35 MM) | 8M0103814 |
32 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 817274 |
33 | HOSE | 887937006 |
34 | CLAMP, (57.5 mm) | 888988002 |
35 | TUBE, Rear | 887938003 |
36 | CLAMP, (62.0 mm) | 888988004 |
Quick Overview
TUBE - CAC
SKU : 8M0095505
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061952478
