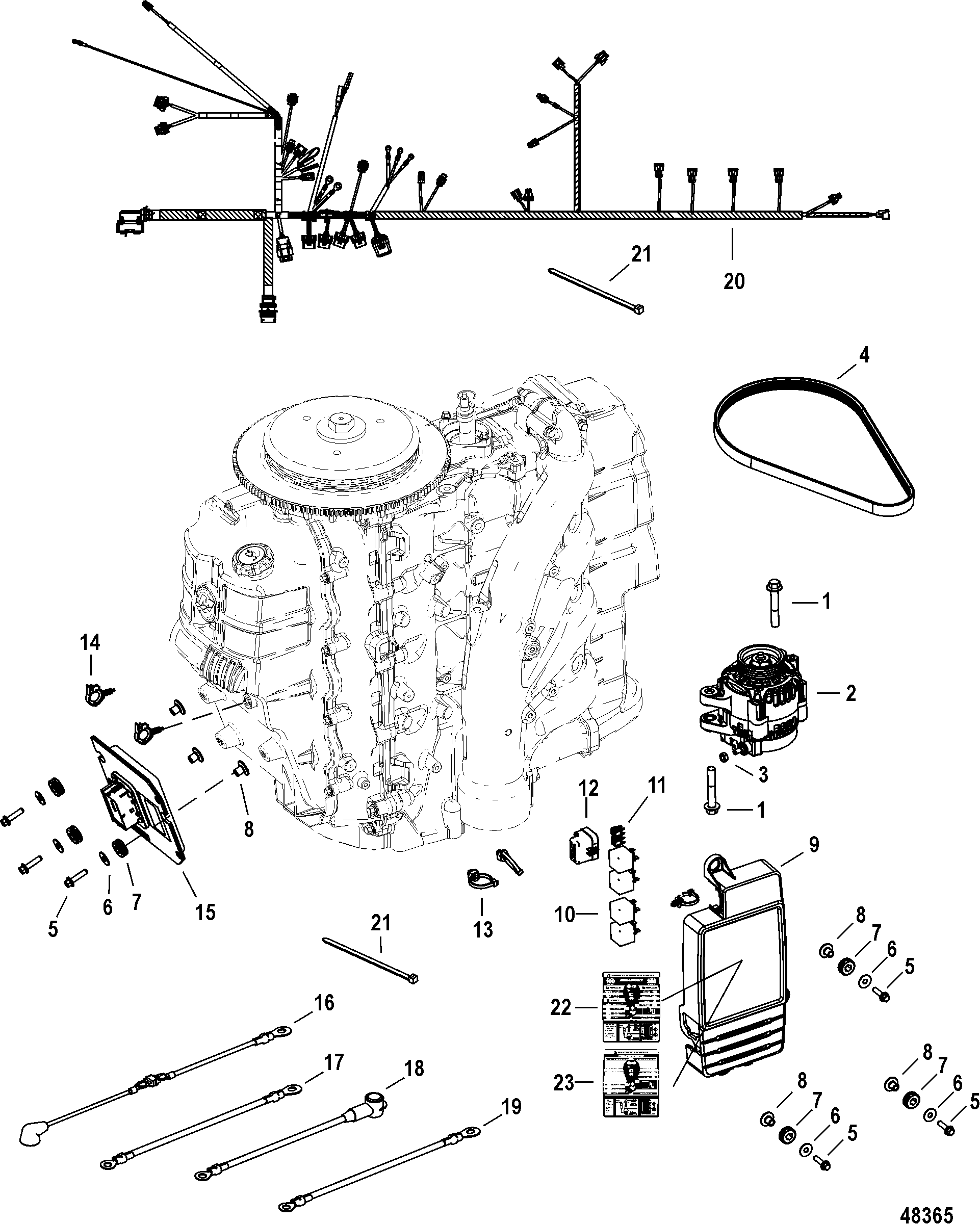

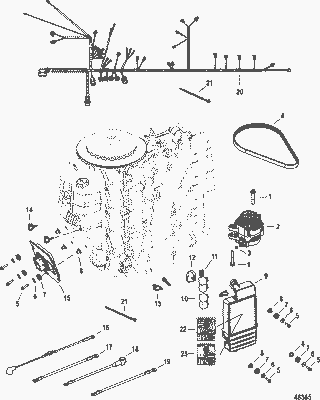

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 23
Product Description : MERCURY 8M0098217 Decal, Maintenance Schedule
Product Category : 150 (4-Stroke)/ 1B905505 & Up/ Electrical
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | SCREW, (M10 X 1.5 X 60) | 8M0069690 |
2 | ALTERNATOR | 8M0065239 |
3 | NUT, (M6) Stainless Steel | 40138 6 |
4 | BELT, Poly V, 4 Rib | 8M0031641 |
5 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
6 | WASHER, (.265 x .750 x .048) Stainless Steel | 65567 |
7 | GROMMET | 834985 |
8 | BUSHING | 856954 |
9 | COVER, POWER CENTER | 8M0101551 |
9 | COVER, Power Center | 8M0099169 |
10 | CUBE RELAY | 8M0057697 |
11 | FUSE, Mini - Blue - 15 Ampere | 832969T15 |
11 | FUSE, Mini - Yellow - 20 Ampere | 832969T20 |
11 | FUSE, Mini - Gray - 2 Ampere | 832969 2 |
12 | FUSE COVER, With Spares | 8M0047885 |
13 | CLIP, Tie Strap | 899145 |
14 | CLIP | 859376 |
15 | ECM 150HP 4S | 8M0079206 |
15 | ECM 150HP 4S, SeaPro | 8M0098625 |
16 | HARNESS ASSY, Fused | 8M0057698 |
- | FUSE, 100 Ampere | 878230 |
17 | CABLE ASSY, Starter | 8M0033589 |
18 | CABLE ASSEMBLY, Battery - Positive | 88439A46 |
19 | CABLE ASSEMBLY, Battery - Negative | 88439A26 |
20 | HARNESS ASSEMBLY, Engine | 8M0057696 |
21 | TIE STRAP, (8.00 Inches) | 816311T |
22 | Decal, Maintenance Schedule | 8M0094687 |
23 | Decal, Maintenance Schedule | 8M0098217 |
1 | SCREW, (M10 X 1.5 X 60) | 8M0069690 |
2 | ALTERNATOR | 8M0065239 |
3 | NUT, (M6) Stainless Steel | 40138 6 |
4 | BELT, Poly V, 4 Rib | 8M0031641 |
5 | SCREW, (M6 x 25 MM) Stainless Steel | 8M0103807 |
6 | WASHER, (.265 x .750 x .048) Stainless Steel | 65567 |
7 | GROMMET | 834985 |
8 | BUSHING | 856954 |
9 | COVER, POWER CENTER | 8M0101551 |
9 | COVER, Power Center | 8M0099169 |
10 | CUBE RELAY | 8M0057697 |
11 | FUSE, Mini - Blue - 15 Ampere | 832969T15 |
11 | FUSE, Mini - Yellow - 20 Ampere | 832969T20 |
11 | FUSE, Mini - Gray - 2 Ampere | 832969 2 |
12 | FUSE COVER, With Spares | 8M0047885 |
13 | CLIP, Tie Strap | 899145 |
14 | CLIP | 859376 |
15 | ECM 150HP 4S | 8M0079206 |
15 | ECM 150HP 4S, SeaPro | 8M0098625 |
16 | HARNESS ASSY, Fused | 8M0057698 |
- | FUSE, 100 Ampere | 878230 |
17 | CABLE ASSY, Starter | 8M0033589 |
18 | CABLE ASSEMBLY, Battery - Positive | 88439A46 |
19 | CABLE ASSEMBLY, Battery - Negative | 88439A26 |
20 | HARNESS ASSEMBLY, Engine | 8M0057696 |
21 | TIE STRAP, (8.00 Inches) | 816311T |
22 | Decal, Maintenance Schedule | 8M0094687 |
23 | Decal, Maintenance Schedule | 8M0098217 |
Quick Overview
DECAL-PWR CENTER 37
SKU : 8M0098217
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061949171
