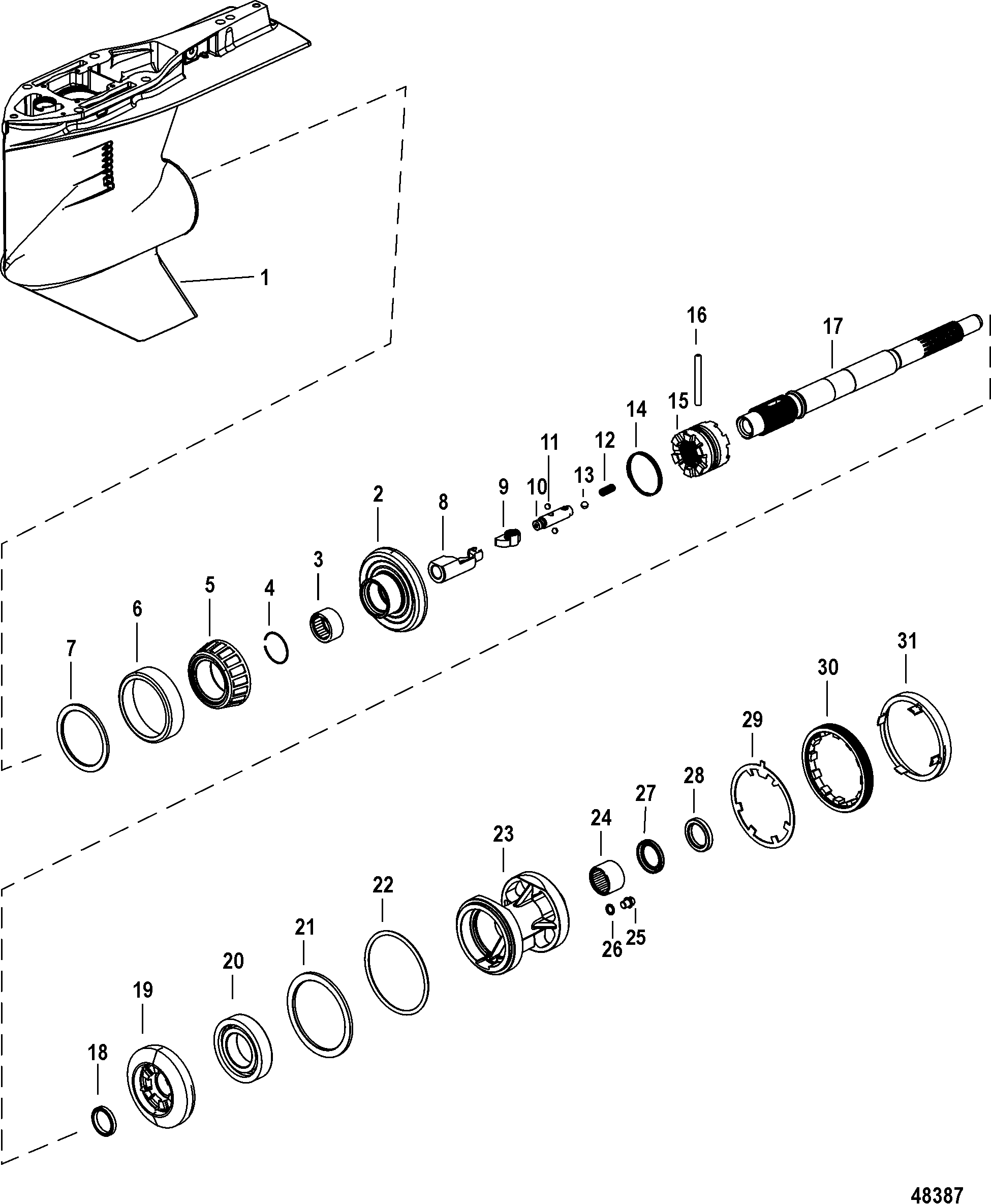

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : -
Product Description : MERCURY 8M0099221 Gearcase Housing Assy, Complete, X-Long
Product Category : 150 (4-Stroke)/ 1B905505 & Up/ Gear Housing, Propeller Shaft, Standard
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
- | GEARCASE HOUSING ASSY, Complete, Long | 8M0099218 |
- | GEARCASE HOUSING ASSY, Complete, Long | 8M0099909 |
- | GEARCASE HOUSING ASSY, Complete, X-Long | 8M0099221 |
- | GEARCASE HOUSING ASSY, Complete, XL | 8M0099910 |
1 | GEARCASE HOUSING ASSY, Basic | 8M0057747 |
1 | GEARCASE HOUSING ASSY, Basic | 8M0099907 |
2 | GEAR SET-FORWARD/PINION | 8M0057741 |
2 | GEAR SET, Forward/Pinion | 8M0096704 |
3 | BEARING, Needle | 8M0057742 |
4 | RING, Retaining | 8M0071554 |
5 | BEARING ASSY, ROLLER, TAPERED | 8M0057724 |
6 | NOT SOLD SEPARATE, Cup | NSS |
7 | SHIM SET | 47397A 1 |
8 | FOLLOWER, Cam, Right Hand | 8M0032320 |
9 | CAM, Shift | 8M0031224 |
10 | ROD, Clutch Actuator | 8M0057749 |
11 | BALL BEARING, .2500 dia, NLA - No Longer Required | 8M0054823 |
12 | SPRING, Compression .305 OD, NLA - No Longer Required | 8M0058020 |
13 | BALL BEARING, .3125 dia, NLA - No Longer Required | 8M0054824 |
14 | SPRING, Retaining | 8M0047945 |
15 | CLUTCH, Sliding, 6 Jaw | 8M0045760 |
16 | PIN, Cross | 8M0045759 |
17 | SHAFT, Propeller, Right Hand | 8M0088077 |
18 | SPACER | 824108 |
19 | GEAR ASSEMBLY, Reverse | 8M0061763 |
19 | GEAR ASSEMBLY, Reverse | 8M0096705 |
20 | BEARING, Ball | 88957T |
21 | THRUST RING | 8M0030779 |
22 | O-RING, 3.975X.210 | 8M0030845 |
23 | SPOOL, Bearing Carrier | 8M0098463 |
24 | BEARING, Needle | 30956T |
25 | SCREW/SEAL KIT, .38 Inch Long | 880717A01 |
25 | SCREW/SEAL KIT, .75 Inch Long | 8M0077071 |
26 | SEAL | 830749 |
27 | SEAL, Oil | 14077 |
28 | SEAL | 76868 |
28 | SEAL, Fish Line Cutting | 12224 |
29 | WASHER, Keyed | 8M0030784 |
30 | RETAINER BEARING CARRIER | 8M0141332 |
31 | SLEEVE, Propeller Bore | 8M0054695 |
- | GEARCASE HOUSING ASSY, Complete, Long | 8M0099218 |
- | GEARCASE HOUSING ASSY, Complete, Long | 8M0099909 |
- | GEARCASE HOUSING ASSY, Complete, X-Long | 8M0099221 |
- | GEARCASE HOUSING ASSY, Complete, XL | 8M0099910 |
1 | GEARCASE HOUSING ASSY, Basic | 8M0057747 |
1 | GEARCASE HOUSING ASSY, Basic | 8M0099907 |
2 | GEAR SET-FORWARD/PINION | 8M0057741 |
2 | GEAR SET, Forward/Pinion | 8M0096704 |
3 | BEARING, Needle | 8M0057742 |
4 | RING, Retaining | 8M0071554 |
5 | BEARING ASSY, ROLLER, TAPERED | 8M0057724 |
6 | NOT SOLD SEPARATE, Cup | NSS |
7 | SHIM SET | 47397A 1 |
8 | FOLLOWER, Cam, Right Hand | 8M0032320 |
9 | CAM, Shift | 8M0031224 |
10 | ROD, Clutch Actuator | 8M0057749 |
11 | BALL BEARING, .2500 dia, NLA - No Longer Required | 8M0054823 |
12 | SPRING, Compression .305 OD, NLA - No Longer Required | 8M0058020 |
13 | BALL BEARING, .3125 dia, NLA - No Longer Required | 8M0054824 |
14 | SPRING, Retaining | 8M0047945 |
15 | CLUTCH, Sliding, 6 Jaw | 8M0045760 |
16 | PIN, Cross | 8M0045759 |
17 | SHAFT, Propeller, Right Hand | 8M0088077 |
18 | SPACER | 824108 |
19 | GEAR ASSEMBLY, Reverse | 8M0061763 |
19 | GEAR ASSEMBLY, Reverse | 8M0096705 |
20 | BEARING, Ball | 88957T |
21 | THRUST RING | 8M0030779 |
22 | O-RING, 3.975X.210 | 8M0030845 |
23 | SPOOL, Bearing Carrier | 8M0098463 |
24 | BEARING, Needle | 30956T |
25 | SCREW/SEAL KIT, .38 Inch Long | 880717A01 |
25 | SCREW/SEAL KIT, .75 Inch Long | 8M0077071 |
26 | SEAL | 830749 |
27 | SEAL, Oil | 14077 |
28 | SEAL | 76868 |
28 | SEAL, Fish Line Cutting | 12224 |
29 | WASHER, Keyed | 8M0030784 |
30 | RETAINER BEARING CARRIER | 8M0141332 |
31 | SLEEVE, Propeller Bore | 8M0054695 |
Quick Overview
G/C XL 1600
SKU : 8M0099221
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061947474
