MERCURY 8M0102788 Gear Housing Assembly, Complete (Xx-Long) (1.75:1) Straight Skeg

Write a Review
$13,302.58
SKU:
8M0102788

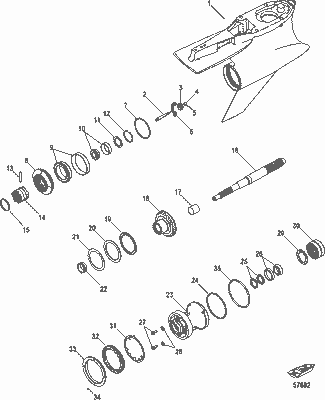

Schematic Object Key:
-

MERCURY 8M0102788 Gear Housing Assembly, Complete (Xx-Long) (1.75:1) Straight Skeg

$13,302.58

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 8M0102788 Gear Housing Assembly, Complete (Xx-Long) (1.75:1) Straight Skeg

Schematic Object Key : -

Product Description : MERCURY 8M0102788 Gear Housing Assembly, Complete (Xx-Long) (1.75:1) Straight Skeg

Product Category : 400 VERADO (4-Stroke)(6 CYL.)/ 2B141124 & Up/Gear Housing,, Prop Shaft-Counter Rot, 5.44 Hd Sp

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY, Complete (Long) (1.75:1) Straight Skeg 8M0102786
- GEAR HOUSING ASSEMBLY, Complete (X-Long) (1.75:1) Straight Skeg 8M0102787
- GEAR HOUSING ASSEMBLY, Complete (XX-Long) (1.75:1) Straight Skeg 8M0102788
- GEAR HOUSING ASSEMBLY, Complete (Long) (1.75:1) Cambered Skeg 8M0137081
- GEAR HOUSING ASSEMBLY, Complete (X-Long) (1.75:1) Cambered Skeg 8M0102793
- GEAR HOUSING ASSEMBLY, Complete (XX-Long) (1.75:1) Cambered Skeg 8M0137083
1 GEAR HOUSING ASSEMBLY, Basic, Counter Cambered Skeg 8M0102797
2 SPOOL ASSEMBLY 8M0053114
3 NOT SOLD SEPARATE, SPOOL NSS
4 NOT SOLD SEPARATE, SLEEVE NSS
5 COTTER PIN 46950 1
6 CRANK, Shifter, 1/4 Pivot Pin 8M0046215
7 SHIM SET 8M0063270
8 GEAR KIT, Reverse 8M0053121
9 BEARING ASSEMBLY, Roller 884323T01
10 BEARING ASSEMBLY, Roller-Tappered 884325T01
11 THRUST WASHER 8M0053823
12 RETAINING RING 8M0051043
13 PIN 8M0045493
14 CLUTCH 8M0053113
15 SPRING 8M0050575
16 PROPELLER SHAFT, 1.25 Inch 8M0103300
17 SPACER 8M0064306
18 GEAR SET, 12/21 (1.75:1), Forward 8M0053120
19 BEARING 8M0050692
20 WASHER 8M0050688
21 SHIM SET 8M0053116
22 ADAPTOR 8M0053183
23 CARRIER ASSEMBLY, Bearing 8M0117237
24 O-RING, (4.475 x .210) 8M0000190
25 SEAL, Oil 888483
26 BEARING ASSEMBLY, Tapered 8M0148319
27 SCREW, Special 8M0071653
28 SEAL 830749
29 RING, Retainer 8M0056639
30 BEARING, Needle 8M0050704
31 TAB WASHER 8M0108527
32 NUT, Retainer 8M0111653
33 COVER KIT, Flush, Standard 8M0050821
35 SET SCREW, (10-32) 8M0036819
36 RING, Thrust 8M0046569
- GEAR HOUSING ASSEMBLY, Complete (Long) (1.75:1) Straight Skeg 8M0102786
- GEAR HOUSING ASSEMBLY, Complete (X-Long) (1.75:1) Straight Skeg 8M0102787
- GEAR HOUSING ASSEMBLY, Complete (XX-Long) (1.75:1) Straight Skeg 8M0102788
- GEAR HOUSING ASSEMBLY, Complete (Long) (1.75:1) Cambered Skeg 8M0137081
- GEAR HOUSING ASSEMBLY, Complete (X-Long) (1.75:1) Cambered Skeg 8M0102793
- GEAR HOUSING ASSEMBLY, Complete (XX-Long) (1.75:1) Cambered Skeg 8M0137083
1 GEAR HOUSING ASSEMBLY, Basic, Counter Cambered Skeg 8M0102797
2 SPOOL ASSEMBLY 8M0053114
3 NOT SOLD SEPARATE, SPOOL NSS
4 NOT SOLD SEPARATE, SLEEVE NSS
5 COTTER PIN 46950 1
6 CRANK, Shifter, 1/4 Pivot Pin 8M0046215
7 SHIM SET 8M0063270
8 GEAR KIT, Reverse 8M0053121
9 BEARING ASSEMBLY, Roller 884323T01
10 BEARING ASSEMBLY, Roller-Tappered 884325T01
11 THRUST WASHER 8M0053823
12 RETAINING RING 8M0051043
13 PIN 8M0045493
14 CLUTCH 8M0053113
15 SPRING 8M0050575
16 PROPELLER SHAFT, 1.25 Inch 8M0103300
17 SPACER 8M0064306
18 GEAR SET, 12/21 (1.75:1), Forward 8M0053120
19 BEARING 8M0050692
20 WASHER 8M0050688
21 SHIM SET 8M0053116
22 ADAPTOR 8M0053183
23 CARRIER ASSEMBLY, Bearing 8M0117237
24 O-RING, (4.475 x .210) 8M0000190
25 SEAL, Oil 888483
26 BEARING ASSEMBLY, Tapered 8M0148319
27 SCREW, Special 8M0071653
28 SEAL 830749
29 RING, Retainer 8M0056639
30 BEARING, Needle 8M0050704
31 TAB WASHER 8M0108527
32 NUT, Retainer 8M0111653
33 COVER KIT, Flush, Standard 8M0050821
35 SET SCREW, (10-32) 8M0036819
36 RING, Thrust 8M0046569
