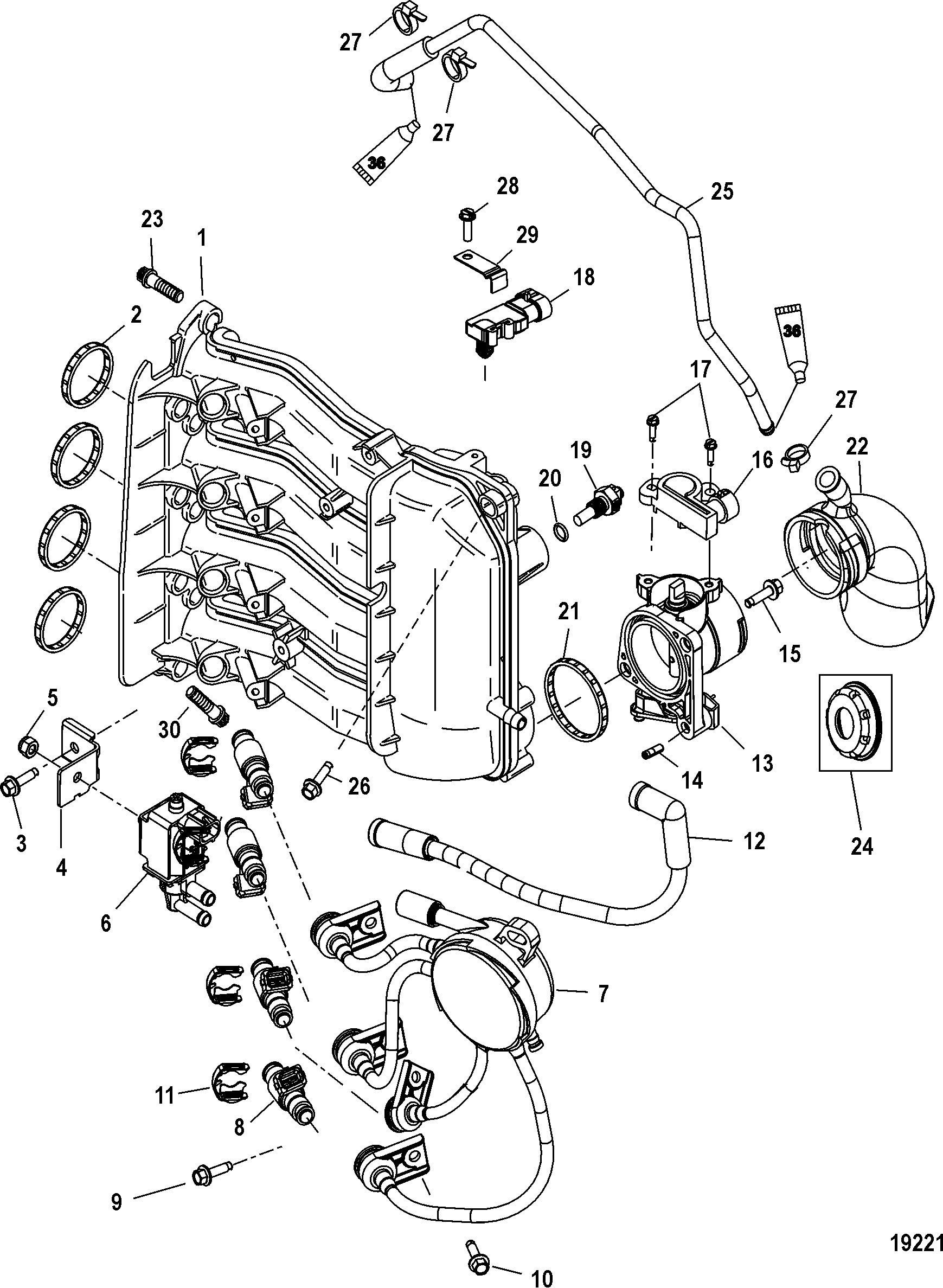

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 25
Product Description : MERCURY 8M0113740 Hose, Breather
Product Category : 60 EFI (4 CYL.)(4-STROKE)/ 1C050252 & Up/ Intake Manifold
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
- | MANIFOLD ASSEMBLY, Intake - Complete | 877829T06 |
1 | MANIFOLD, Intake | 877829T01 |
2 | GASKET SET | 879866 |
3 | SCREW | 881059 |
4 | BRACKET | 877834 |
5 | NUT, (M6) Stainless Steel | 40136 6 |
6 | SOLENOID VALVE | 877805T |
7 | TFI SYSTEM | 879887T |
8 | INJECTOR | 892123002 |
- | O-RING KIT, Injector | 883597 |
- | O-RING KIT, Injector | 883598 |
9 | SCREW | 881059 |
10 | SCREW | 881059 |
11 | CLIP | 883460 |
12 | HOSE | 877831A 1 |
13 | THROTTLE BODY ASSEMBLY | 877831A02 |
14 | SCREW, Adjustment | 8M0000578 |
15 | SCREW | 881059 |
16 | SENSOR, Position | 8M0125617 |
17 | SCREW | 881060 |
18 | SENSOR, MAP | 854445 |
19 | SENSOR ASSEMBLY | 8M0148668 |
20 | O-RING, (1.78 mm x .08 mm) | 896699 |
21 | GASKET | 879867 |
22 | ATTENUATOR | 893521 |
23 | SCREW, (M6 x 25 MM) | 824832 6 |
24 | RESTRICTOR | 883148 3 |
24 | RESTRICTOR | 883148 2 |
25 | HOSE, Breather | 8M0113740 |
26 | SCREW, (M6 x 30) | 826844 30 |
27 | TIE STRAP, (11.750 Inches) | 850181 |
28 | SCREW, (#10-16 x .625) | 821428 1 |
29 | RETAINER | 8M0007495 |
30 | SCREW, (M6 x 25 MM) | 824832 6 |
- | GASKET SET | 883599A02 |
- | MANIFOLD ASSEMBLY, Intake - Complete | 877829T06 |
1 | MANIFOLD, Intake | 877829T01 |
2 | GASKET SET | 879866 |
3 | SCREW | 881059 |
4 | BRACKET | 877834 |
5 | NUT, (M6) Stainless Steel | 40136 6 |
6 | SOLENOID VALVE | 877805T |
7 | TFI SYSTEM | 879887T |
8 | INJECTOR | 892123002 |
- | O-RING KIT, Injector | 883597 |
- | O-RING KIT, Injector | 883598 |
9 | SCREW | 881059 |
10 | SCREW | 881059 |
11 | CLIP | 883460 |
12 | HOSE | 877831A 1 |
13 | THROTTLE BODY ASSEMBLY | 877831A02 |
14 | SCREW, Adjustment | 8M0000578 |
15 | SCREW | 881059 |
16 | SENSOR, Position | 8M0125617 |
17 | SCREW | 881060 |
18 | SENSOR, MAP | 854445 |
19 | SENSOR ASSEMBLY | 8M0148668 |
20 | O-RING, (1.78 mm x .08 mm) | 896699 |
21 | GASKET | 879867 |
22 | ATTENUATOR | 893521 |
23 | SCREW, (M6 x 25 MM) | 824832 6 |
24 | RESTRICTOR | 883148 3 |
24 | RESTRICTOR | 883148 2 |
25 | HOSE, Breather | 8M0113740 |
26 | SCREW, (M6 x 30) | 826844 30 |
27 | TIE STRAP, (11.750 Inches) | 850181 |
28 | SCREW, (#10-16 x .625) | 821428 1 |
29 | RETAINER | 8M0007495 |
30 | SCREW, (M6 x 25 MM) | 824832 6 |
- | GASKET SET | 883599A02 |
Quick Overview
HOSE-BREATHER 32
SKU : 8M0113740
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061689664
