MERCURY 8M0118363 Gear, Reverse

Write a Review
$496.71
SKU:
8M0118363
Schematic Object Key:
21

MERCURY 8M0118363 Gear, Reverse

$496.71

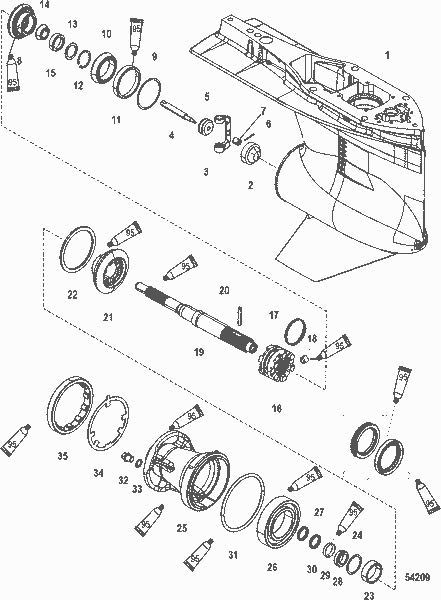

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 8M0118363 Gear, Reverse

Schematic Object Key : 21

Product Description : MERCURY 8M0118363 Gear, Reverse

Product Category : 200 (DFI) 3.0L/ 1B912786 & Up/Gear Housing, Prop Shaft-Standard Rotation 2B0142

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY, Complete 880686A43
- GEAR HOUSING ASSEMBLY, Complete 880686A44
- GEAR HOUSING ASSEMBLY, Complete 880686A51
1 GEAR HOUSING ASSEMBLY, Basic 8M0056631
2 NOT SOLD SEPARATE, Plug NSS
3 CRANK, Shifter, 1/4 Pivot Pin 8M0046215
4 SPOOL ASSEMBLY 19755T 7
5 NOT SOLD SEPARATE, Spool NSS
6 COTTER PIN 46950 1
7 NOT SOLD SEPARATE, Sleeve Adjusting NSS
8 GEAR SET, Forward/Pinion 892595A04
9 SHIM SET 884328A01
10 BEARING ASSEMBLY, Roller 884323T01
11 NOT SOLD SEPARATE, Cup NSS
12 RING, Retaining 8M0051043
13 THRUST WASHER 8M0053823
14 BEARING ASSEMBLY, Roller-Tappered 884325T01
15 NOT SOLD SEPARATE, Cup NSS
16 CLUTCH 880714T01
17 SPRING 30893
18 PIN, Detent 828356
19 PROPELLER SHAFT 8M0140446
20 PIN, Cross 8M0100263
21 GEAR, Reverse 8M0118363
22 THRUST RING 880699
23 SPACER 8M0064306
24 SHIM SET 8M0076745
24 WASHER, .020 8M0050423
24 WASHER, .022 8M0050424
24 WASHER, .024 8M0050425
24 WASHER, .026 8M0050427
24 WASHER, .028 8M0050428
24 WASHER, .030 8M0050429
24 WASHER, .032 8M0050430
24 WASHER, .034 8M0050431
24 WASHER, .036 8M0050432
24 WASHER, .038 8M0050433
24 WASHER, .040 8M0050434
24 WASHER, .042 8M0050435
24 WASHER, .044 8M0050436
24 WASHER, .046 8M0050437
24 WASHER, .048 8M0050438
24 WASHER, .050 8M0050439
25 CARRIER ASSEMBLY, Bearing 8M0083392
26 BEARING, Ball 8M0142873
27 SEAL, Oil 888483
28 BEARING ASSEMBLY, Tapered 8M0148319
29 NOT SOLD SEPARATE, Cup NSS
30 SEAL, Oil 888483
31 O-RING, (3.850 x .210) 896524
32 SCREW/SEAL KIT 880717A01
33 SEAL 830749
34 KEYED WASHER 880697
35 RETAINER 8M2011027
- SEAL KIT, Gear Housing 830749A01
- GEAR HOUSING ASSEMBLY, Complete 880686A43
- GEAR HOUSING ASSEMBLY, Complete 880686A44
- GEAR HOUSING ASSEMBLY, Complete 880686A51
1 GEAR HOUSING ASSEMBLY, Basic 8M0056631
2 NOT SOLD SEPARATE, Plug NSS
3 CRANK, Shifter, 1/4 Pivot Pin 8M0046215
4 SPOOL ASSEMBLY 19755T 7
5 NOT SOLD SEPARATE, Spool NSS
6 COTTER PIN 46950 1
7 NOT SOLD SEPARATE, Sleeve Adjusting NSS
8 GEAR SET, Forward/Pinion 892595A04
9 SHIM SET 884328A01
10 BEARING ASSEMBLY, Roller 884323T01
11 NOT SOLD SEPARATE, Cup NSS
12 RING, Retaining 8M0051043
13 THRUST WASHER 8M0053823
14 BEARING ASSEMBLY, Roller-Tappered 884325T01
15 NOT SOLD SEPARATE, Cup NSS
16 CLUTCH 880714T01
17 SPRING 30893
18 PIN, Detent 828356
19 PROPELLER SHAFT 8M0140446
20 PIN, Cross 8M0100263
21 GEAR, Reverse 8M0118363
22 THRUST RING 880699
23 SPACER 8M0064306
24 SHIM SET 8M0076745
24 WASHER, .020 8M0050423
24 WASHER, .022 8M0050424
24 WASHER, .024 8M0050425
24 WASHER, .026 8M0050427
24 WASHER, .028 8M0050428
24 WASHER, .030 8M0050429
24 WASHER, .032 8M0050430
24 WASHER, .034 8M0050431
24 WASHER, .036 8M0050432
24 WASHER, .038 8M0050433
24 WASHER, .040 8M0050434
24 WASHER, .042 8M0050435
24 WASHER, .044 8M0050436
24 WASHER, .046 8M0050437
24 WASHER, .048 8M0050438
24 WASHER, .050 8M0050439
25 CARRIER ASSEMBLY, Bearing 8M0083392
26 BEARING, Ball 8M0142873
27 SEAL, Oil 888483
28 BEARING ASSEMBLY, Tapered 8M0148319
29 NOT SOLD SEPARATE, Cup NSS
30 SEAL, Oil 888483
31 O-RING, (3.850 x .210) 896524
32 SCREW/SEAL KIT 880717A01
33 SEAL 830749
34 KEYED WASHER 880697
35 RETAINER 8M2011027
- SEAL KIT, Gear Housing 830749A01



Quick Overview

GEAR - REVERSE 43

SKU : 8M0118363

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061734838
