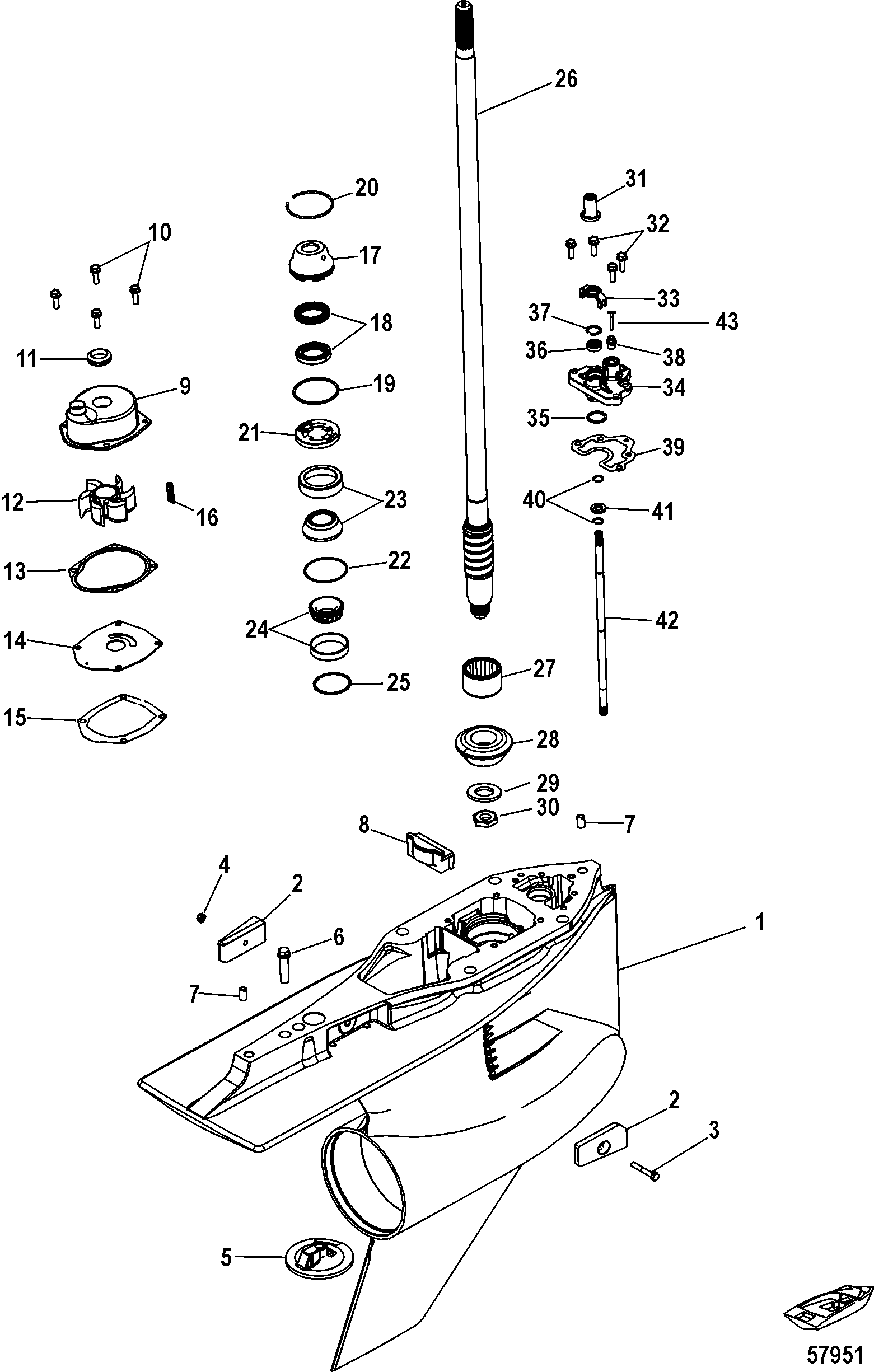

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 24
Product Description : MERCURY 8M0146553 Bearing, Tapered Roller
Product Category : 400 VERADO (4-Stroke)(6 CYL.)/ 2B141124 & Up/ Gear Housing,, Driveshaft, 5.44 Torpedo
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
- | GEAR HOUSING ASSEMBLY, Complete, Silver (Standard Long) (1.75:1) | 8M0117245 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (Standard X-Long) (1.75:1) | 8M0117246 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (Standard XX-Long) (1.75:1) | 8M0117247 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation Long)(1.75:1) | 8M0117248 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation X-Long) (1.75:1) | 8M0117249 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation XX-Long) (1.75:1) | 8M0117250 |
1 | GEAR HOUSING ASSEMBLY, Basic, Silver | 8M0117251 |
2 | ANODE | 826134Q |
3 | SCREW, (M6 x 40) | 40003 33 |
4 | NUT, (M6) Stainless Steel | 40138 6 |
5 | ANODE KIT | 76214Q 5 |
6 | SCREW, (.437-14 x 1.750) | 806327 |
7 | PIN, Dowel - Without Hole (.375 x .625) | 43044 |
8 | FILLER BLOCK | 8M0010459 |
9 | HOUSING KIT, Water Pump | 817275A 1 |
10 | SCREW, (M6 x 20) | 19937 20 |
- | IMPELLER REPAIR KIT | 8M0057717 |
11 | SEAL, Face | 8M0142851 |
12 | IMPELLER | 43026Q02 |
13 | GASKET | 817277 1 |
14 | FACEPLATE | 817276 1 |
15 | GASKET | 8M0112903 |
16 | KEY | 8M0032833 |
17 | OIL SEAL ASSEMBLY | 8M0046297 |
18 | NOT SOLD SEPARATE, SEAL | NSS |
19 | O-RING, (2.175 x .103) | 896523 |
20 | RING, Retaining | 880719 |
21 | RETAINER | 824519 1 |
22 | SHIM SET | 8M0063267 |
23 | BEARING ASSEMBLY, Roller/Cup | 8M0146566 |
24 | BEARING, Tapered Roller | 8M0146553 |
25 | SHIM SET | 8M0063268 |
26 | SHAFT, Drive, XX-Long | 8M0103301 |
26 | SHAFT, Drive, X-Long | 8M0141337 |
26 | SHAFT, Drive, Long | 8M0141338 |
27 | BEARING, Roller | 8M0045676 |
28 | GEAR SET, 12/21(1.75:1), Forward and Pinion | 8M0078258 |
28 | GEAR SET, 12/21 (1.75:1), Forward and Pinion | 8M0053120 |
29 | WASHER, Pinon nut | 8M0062703 |
30 | NUT, Pinion | 8M0046636 |
31 | COUPLING | 43585 |
32 | SCREW, (M6 x 20) | 19937 20 |
33 | GROMMET ASSEMBLY | 8M0050809 |
34 | COVER ASSEMBLY | 8M0047129 |
35 | O-RING, (799 x .103) | 896522 |
36 | SEAL, Oil | 816464 1 |
37 | RETAINING RING | 8M0046563 |
38 | FITTING | 881866 |
39 | GASKET | 880729 |
40 | E RING | 29641 |
41 | MAGNET | 8M0050602 |
42 | SHIFT SHAFT | 8M0046104 |
43 | PLUG | 859732 |
- | SEAL KIT, Gearcase | 8M0065064 |
- | WATER PUMP REPAIR KIT, Complete | 8M0078858 |
- | WATER PUMP REPAIR KIT, Upper | 8M0065072 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (Standard Long) (1.75:1) | 8M0117245 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (Standard X-Long) (1.75:1) | 8M0117246 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (Standard XX-Long) (1.75:1) | 8M0117247 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation Long)(1.75:1) | 8M0117248 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation X-Long) (1.75:1) | 8M0117249 |
- | GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation XX-Long) (1.75:1) | 8M0117250 |
1 | GEAR HOUSING ASSEMBLY, Basic, Silver | 8M0117251 |
2 | ANODE | 826134Q |
3 | SCREW, (M6 x 40) | 40003 33 |
4 | NUT, (M6) Stainless Steel | 40138 6 |
5 | ANODE KIT | 76214Q 5 |
6 | SCREW, (.437-14 x 1.750) | 806327 |
7 | PIN, Dowel - Without Hole (.375 x .625) | 43044 |
8 | FILLER BLOCK | 8M0010459 |
9 | HOUSING KIT, Water Pump | 817275A 1 |
10 | SCREW, (M6 x 20) | 19937 20 |
- | IMPELLER REPAIR KIT | 8M0057717 |
11 | SEAL, Face | 8M0142851 |
12 | IMPELLER | 43026Q02 |
13 | GASKET | 817277 1 |
14 | FACEPLATE | 817276 1 |
15 | GASKET | 8M0112903 |
16 | KEY | 8M0032833 |
17 | OIL SEAL ASSEMBLY | 8M0046297 |
18 | NOT SOLD SEPARATE, SEAL | NSS |
19 | O-RING, (2.175 x .103) | 896523 |
20 | RING, Retaining | 880719 |
21 | RETAINER | 824519 1 |
22 | SHIM SET | 8M0063267 |
23 | BEARING ASSEMBLY, Roller/Cup | 8M0146566 |
24 | BEARING, Tapered Roller | 8M0146553 |
25 | SHIM SET | 8M0063268 |
26 | SHAFT, Drive, XX-Long | 8M0103301 |
26 | SHAFT, Drive, X-Long | 8M0141337 |
26 | SHAFT, Drive, Long | 8M0141338 |
27 | BEARING, Roller | 8M0045676 |
28 | GEAR SET, 12/21(1.75:1), Forward and Pinion | 8M0078258 |
28 | GEAR SET, 12/21 (1.75:1), Forward and Pinion | 8M0053120 |
29 | WASHER, Pinon nut | 8M0062703 |
30 | NUT, Pinion | 8M0046636 |
31 | COUPLING | 43585 |
32 | SCREW, (M6 x 20) | 19937 20 |
33 | GROMMET ASSEMBLY | 8M0050809 |
34 | COVER ASSEMBLY | 8M0047129 |
35 | O-RING, (799 x .103) | 896522 |
36 | SEAL, Oil | 816464 1 |
37 | RETAINING RING | 8M0046563 |
38 | FITTING | 881866 |
39 | GASKET | 880729 |
40 | E RING | 29641 |
41 | MAGNET | 8M0050602 |
42 | SHIFT SHAFT | 8M0046104 |
43 | PLUG | 859732 |
- | SEAL KIT, Gearcase | 8M0065064 |
- | WATER PUMP REPAIR KIT, Complete | 8M0078858 |
- | WATER PUMP REPAIR KIT, Upper | 8M0065072 |
Quick Overview
BEARING ASSY 31
SKU : 8M0146553
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061238251
